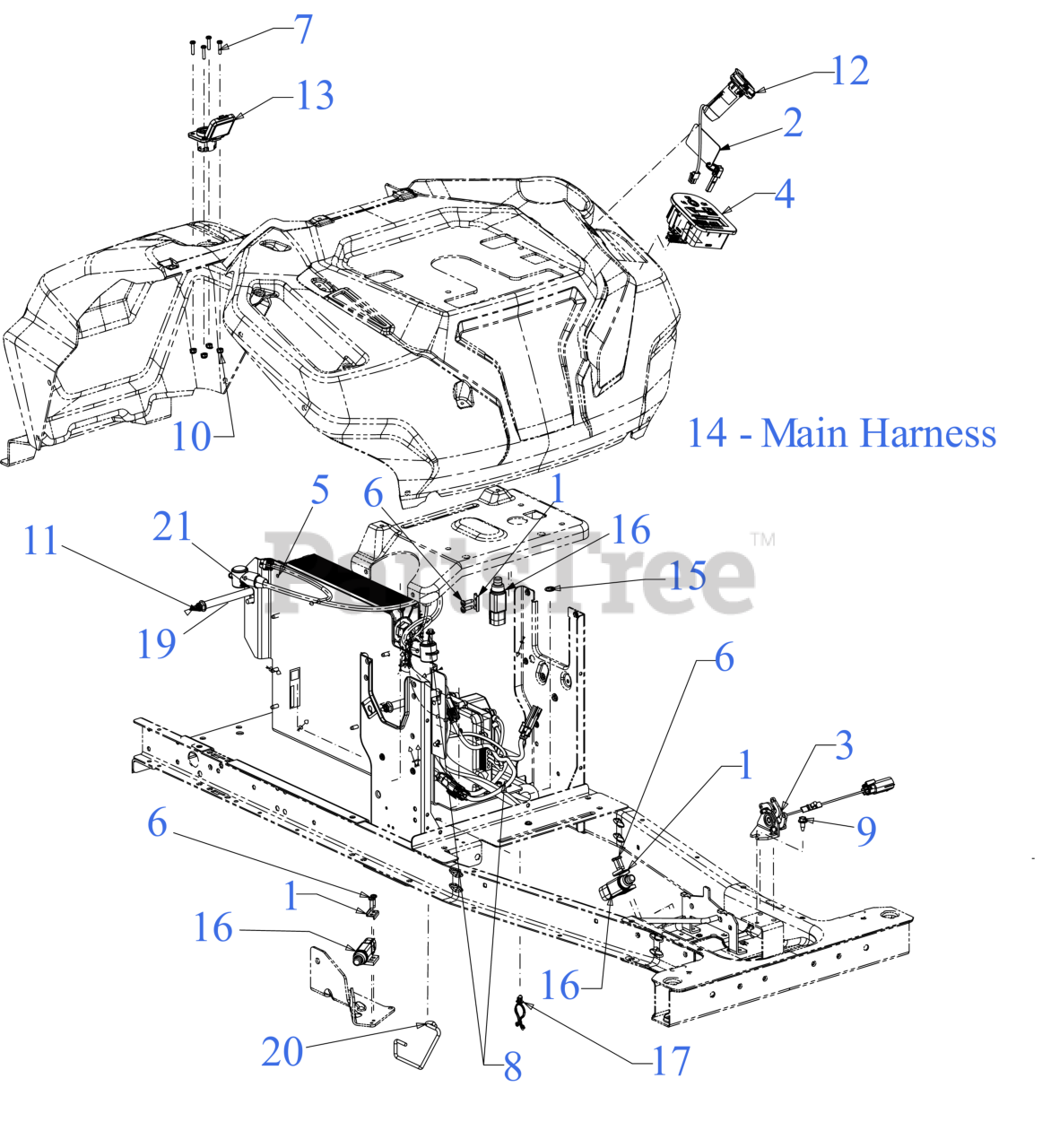

CC 30 E (33BA27JDB10) - Cub Cadet Electric Mini Rider (2023) Electrical Parts Diagram

Electric Mini Rider

Electrical Parts Diagram

  • Title

1

Cub Cadet 17962

PLATE-SWITCH

$4.99

$

In Stock, Qty 5

0

2

Cub Cadet 625-06990A

MAGNETIC KEY

$11.99

$

In Stock, only 4 left!

0

3

Cub Cadet 625-07290

THROTTLE SENSOR ASSEMLBLY

$129.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 924-04153

ROTARY SENSOR MAGNET

Note: (Not Shown)

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 625P08831A

VCM SWITCH ASSEMBLY

$364.99

$

Usually ships in 3-6 days

0

5

Cub Cadet NSCO

Not Serviceable/ Components Only

Note: (See Separate Breakdown)

$

$

Currently unavailable

6

Cub Cadet 791-182195

SCREW #10-24X11/16 T-25

$6.99

$

In Stock, Qty 15

0

7

Cub Cadet 710-04879

SCREW #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04035

NUT

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-09965A

USB RECEPTACLE (12V W/JUMPER)

$84.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-17073

CHARGER PORT HARNESS (8-PIN)
(Superseded to 725P17073)

$

$

Not available

14

Cub Cadet 725P18120

MAIN HARNESS (VCM/SPDM)

$441.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0201

PUSH NUT

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 929-05136

SEALED PLUNGER SWITCH

$40.99

$

In Stock, only 1 left!

0

17

Cub Cadet 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-11691A

BATTERY ROD 5/16-18

$37.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-11715

DECK CABLE SUPPORT ROD

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-10977

SPACER .322 x .438 x 3.855

$22.99

$

Usually ships in 3-6 days

0
