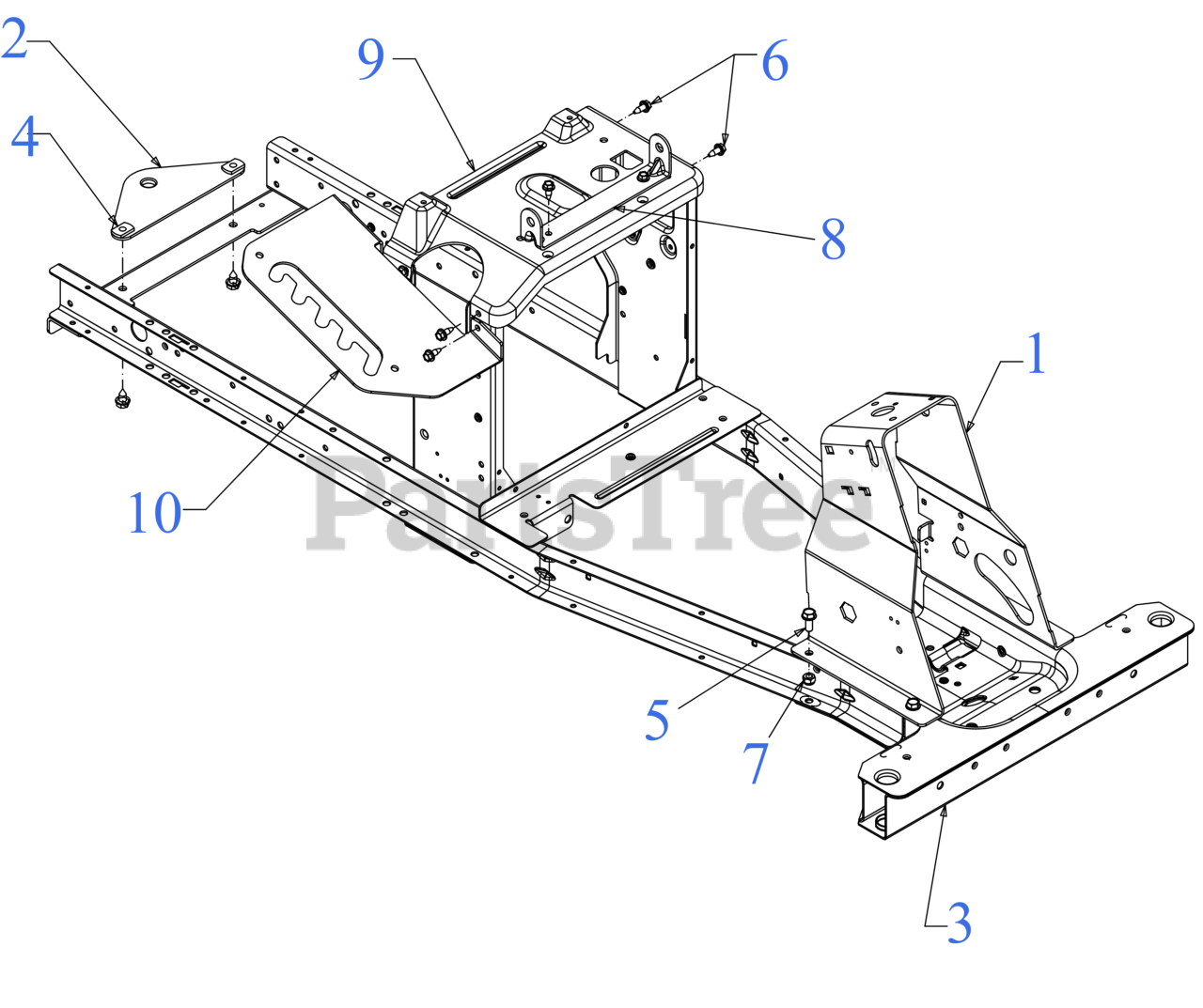

CC 30 E (33BA27JDB10) - Cub Cadet Electric Mini Rider (2023) Frame Parts Diagram

Electric Mini Rider

Frame Parts Diagram

  • Title

1

Cub Cadet 683-05230B

STEERING PEDESTAL

Note: *CHOOSE COLOR WHEN ORDERING*

$115.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-05401A

FRAME ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05401A-0637

BLACK FRAME ASSEMBLYS - POWDER BLACK (0637)

$250.99

$

Usually ships in 3-6 days

0

$250.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

5

Cub Cadet 710-06194

SCREW 5/16-18 x .750 GR8

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0429

HEX NUT

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 783-07168-0637

PIVOT SEAT BRACKET
(Superseded to 783-13996-0637)

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 783-08197-0637

SEAT PAN
(Superseded to 783-13995-0637)

$44.99

$

In Stock, only 1 left!

0

10

Cub Cadet 783-09715

DECK LIFT INDEX BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09715-0637

BLACK DECK LIFT INDEX - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0
