CC 30 H (13AC21JD010) - Cub Cadet Hydro Mini Rider (2022) Engine Accessories Parts Diagram

Hydro Mini Rider

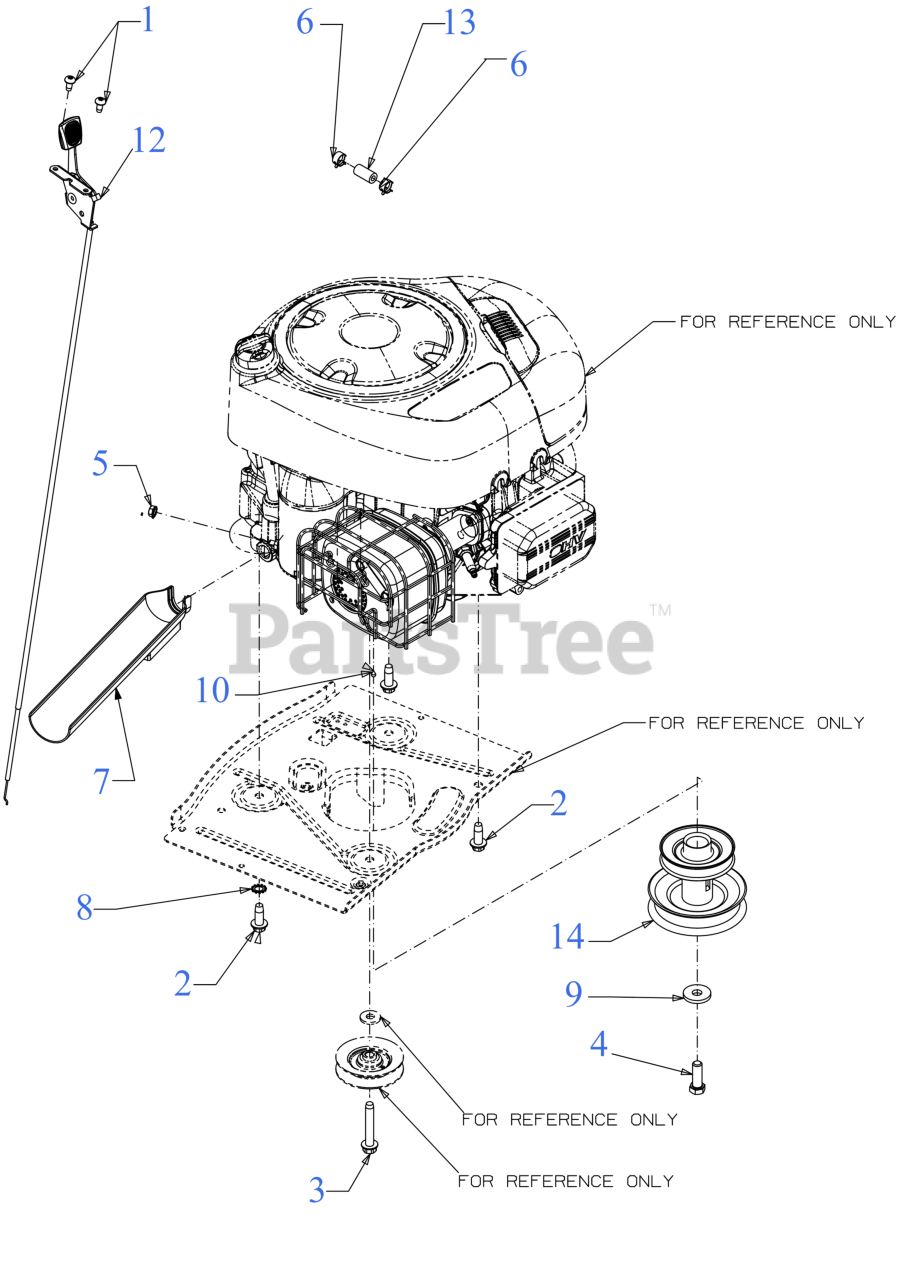

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-04483

SCREW 1/4-20 x .500

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, Qty 6

0

3

Cub Cadet 710-05446

SCREW 3/8-16 x 2.250

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-06067

SCREW 7/16-20 x 1.250 GR5

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

6

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-09188

OIL DRAIN

$7.99

$

In Stock, Qty 8

0

8

Cub Cadet 736-0148

LOCK WASHER 3/8

$3.49

$

In Stock, Qty 12

0

9

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$8.49

$

In Stock, Qty 20+

0

12

Cub Cadet 946-04829B

THROTTLE CABLE 31" x 1.1

$33.99

$

In Stock, only 2 left!

0

13

Cub Cadet 751-10349-16

FUEL HOSE LOW PERMEATION 16"

$18.99

$

In Stock, Qty 13

0

14

Cub Cadet 756-05184

ENGINE PULLEY

$65.99

$

Usually ships in 3-6 days

0

Cub Cadet 490-000-C044

Cub Cadet 10W30 Engine Oil 32OZ

Note: Retail Packaged Part

$7.99

$

In Stock, Qty 20+

0

Cub Cadet 490-000-C059

Cub Cadet 5W30 Engine Oil 20OZ

Note: Retail Packaged Part

$9.99

$

In Stock, only 1 left!

0
