CC 30 H (13AC26JDA10) - Cub Cadet Hydro Mini Rider (2024) Fender Parts Diagram

Hydro Mini Rider

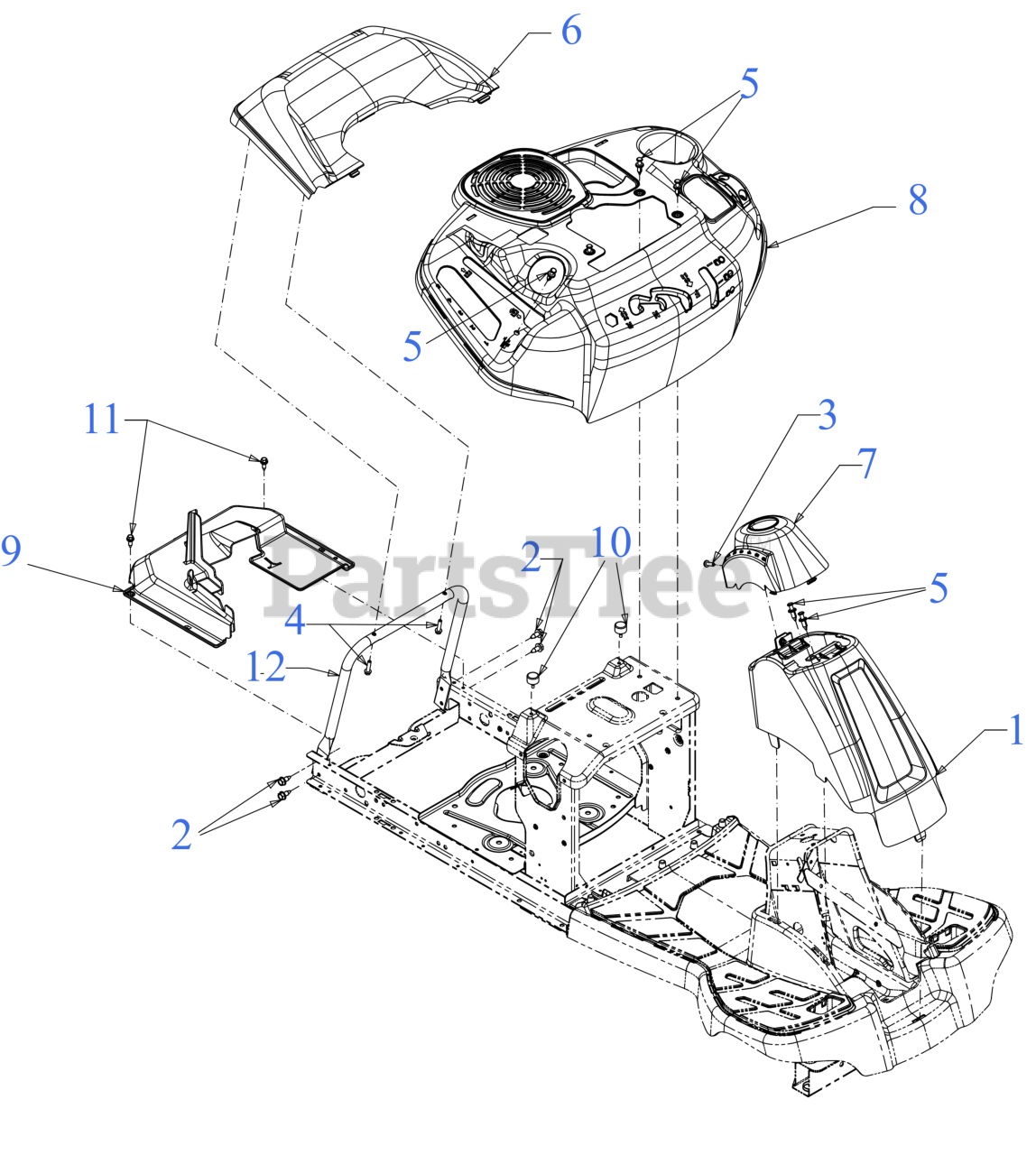

Fender Parts Diagram

  • Title

1

Cub Cadet 931-05041

COLUMN COVER ASSEMBLY

$33.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 712-04092

U NUT

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 10

0

5

Cub Cadet 728-0199

PLASTIC RIVET

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 731-09129A

REAR COVER

$39.99

$

In Stock, only 1 left!

0

7

Cub Cadet 731-09399

STEERING COLUMN CAP (CUB)

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 931-09464A

FENDER

$89.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-10504

DRIVE OVER REAR

$53.99

$

In Stock, only 2 left!

0

10

Cub Cadet 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 738-04184A

SHOULDER SCREW

$7.49

$

In Stock, Qty 18

0

12

Cub Cadet 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

749-04932-0637

Cub Cadet 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 6

0

$29.99

$

Usually ships in 3-6 days

0
