CC 30 H (13AC26JDA10) - Cub Cadet Hydro Mini Rider (2024) Transmission Parts Diagram

Hydro Mini Rider

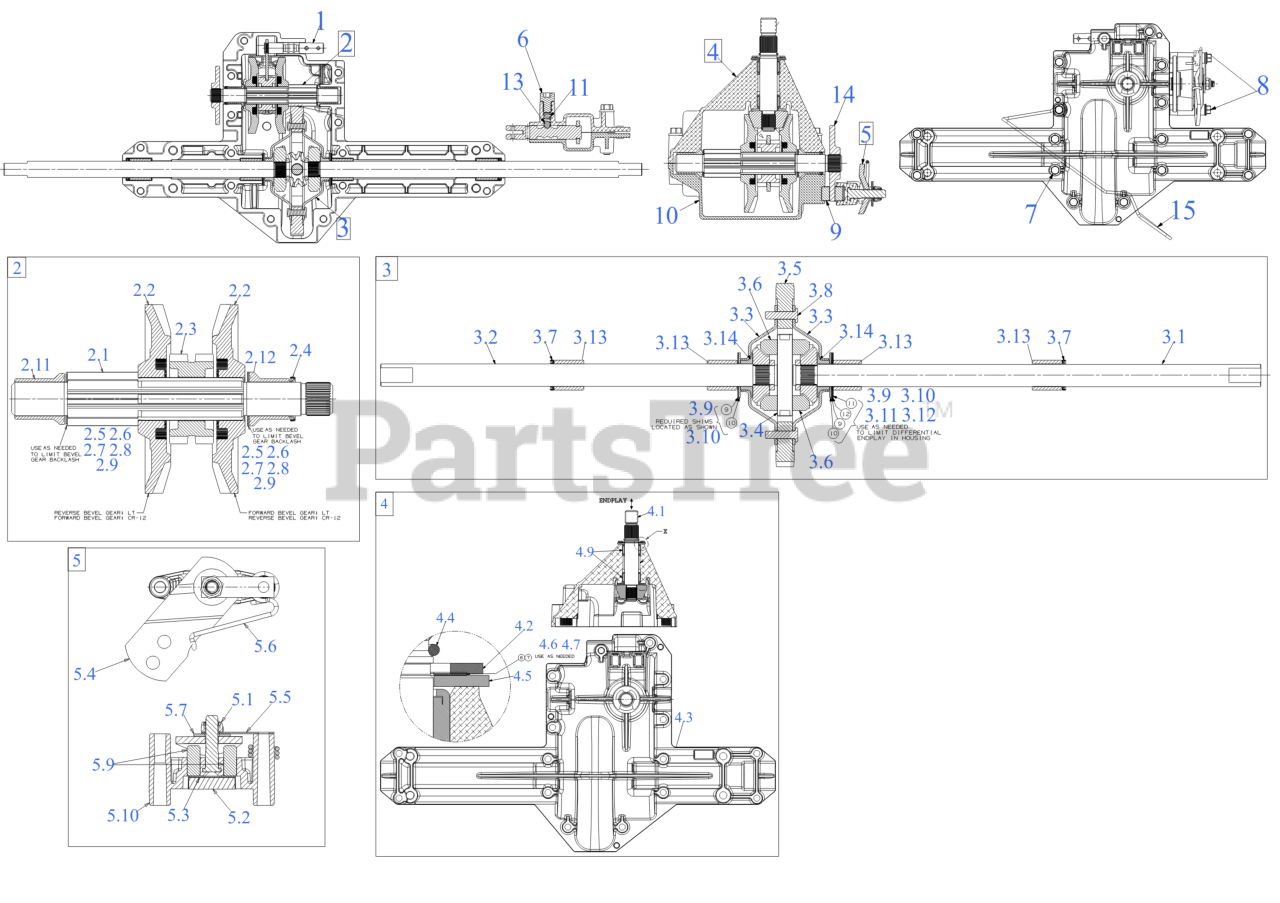

Transmission Parts Diagram

  • Title

1

Cub Cadet 611P05879

DETENT SHAFT ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 611P05870

FWD/REV SHAFT ASSEMBLY

$142.99

$

Usually ships in 3-6 days

0

2.1

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

2.2

Cub Cadet 717P06851

BEVEL GEAR 42T SPLINE

$32.99

$

Usually ships in 3-6 days

0

2.3

Cub Cadet 718P06237

CLUTCH COLLAR

$16.99

$

Usually ships in 3-6 days

0

2.4

Cub Cadet 721-07096

OIL SEAL

$6.49

$

Usually ships in 3-6 days

0

2.5

Cub Cadet 736-06566

SHIM WASHER 0.627x1.030x0.030

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

2.6

Cub Cadet 736-06568

SHIM WASHER 0.627x1.030x0.040

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

2.7

Cub Cadet 736-06569

SHIM WASHER 0.627x1.005x0.020

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

2.8

Cub Cadet 736-06575

SHIM WASHER 0.627x1.010x0.036

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

2.9

Cub Cadet 736-06576

SHIM WASHER 0.627x1.010x0.025

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

2.11

Cub Cadet 741-07158

FLANGE BEARING .625x.750x.938

$6.49

$

Usually ships in 3-6 days

0

2.12

Cub Cadet 741-07159

FLANGE BEARING .625x.750x.750

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 618P09928

DIFFERENTIAL

$259.99

$

Usually ships in 3-6 days

0

3.1

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

3.1

Cub Cadet 736-06637

FLAT WASHER .629x1.015x.160

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

3.2

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

3.2

Cub Cadet 736-06637

FLAT WASHER .629x1.015x.160

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

3.3

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

3.4

Cub Cadet 711-11462

CROSS PIN .500 x 2.75

$38.99

$

Usually ships in 3-6 days

0

3.5

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

3.6

Cub Cadet 717P06854

MITER GEAR 10T

$12.99

$

Usually ships in 3-6 days

0

3.7

Cub Cadet 721P07097

OIL SEAL

$4.99

$

Usually ships in 3-6 days

0

3.8

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

3.9

Cub Cadet 736-06570

SHIM WASHER 0.755x1.505x0.030

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

3.10

Cub Cadet 736-06572

THRUST WASHER 0.755x1.505x0.060

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

3.11

Cub Cadet 736-06573

SHIM WASHER 0.755x1.505x0.010

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

3.12

Cub Cadet 736-06574

SHIM WASHER 0.755x1.505x0.022

Note: As Needed

$3.49

$

Usually ships in 3-6 days

0

3.13

Cub Cadet 741-07160

SLEEVE BEARING

$9.99

$

Usually ships in 3-6 days

0

3.14

Cub Cadet 741P07161

FLANGE BEARING

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 619P06351

UPPER HOUSING ASSEMBLY

$142.99

$

Usually ships in 3-6 days

0

4.1

Cub Cadet 611P05869

INPUT SHAFT ASSEMBLY

$29.99

$

Usually ships in 3-6 days

0

4.1

Cub Cadet 716-05489

SNAP RING

$3.49

$

Usually ships in 3-6 days

0

4.1

Cub Cadet 736-06638

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

4.1

Cub Cadet 717P06855

INPUT PINION GEAR 14T

$14.99

$

Usually ships in 3-6 days

0

4.2

Cub Cadet 716-05490

E-RING

$2.99

$

Usually ships in 3-6 days

0

4.3

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

4.4

Cub Cadet 732-08206

WIRE RING

$3.49

$

Usually ships in 3-6 days

0

4.5

Cub Cadet 736-06638

THRUST WASHER

$3.99

$

Usually ships in 3-6 days

0

4.6

Cub Cadet 736-06571

SHIM WASHER 0.627x1.010x0.010

$3.49

$

Usually ships in 3-6 days

0

4.7

Cub Cadet 736-06639

SHIM WASHER 0.627x1.010x0.007

$2.99

$

Usually ships in 3-6 days

0

4.9

Cub Cadet 741P07155

NEEDLE BEARING

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 661P05053

BRAKE ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

5.1

Cub Cadet 712-07084

HEX JAM LOCK NUT 5/16-24

$3.49

$

Usually ships in 3-6 days

0

5.2

Cub Cadet 717P06847

BRAKE PAD

$6.49

$

In Stock, only 2 left!

0

5.3

Cub Cadet 717P06848

BRAKE PAD PLATE

$3.49

$

Usually ships in 3-6 days

0

5.4

Cub Cadet 717-06850

BRAKE ACTUATING ARM

$15.99

$

Usually ships in 3-6 days

0

5.5

Cub Cadet 718-06236

ANTI ROTATION BRACKET

$3.49

$

Usually ships in 3-6 days

0

5.6

Cub Cadet 732P08346

TORSION SPRING

$4.99

$

Usually ships in 3-6 days

0

5.7

Cub Cadet 736-06636

THRUST WASHER

$3.49

$

Usually ships in 3-6 days

0

5.9

Cub Cadet 741-07156

ACTUATING PIN

$5.49

$

Usually ships in 3-6 days

0

5.10

Cub Cadet 761P05108

BRAKE YOKE

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-11615

SHCS:M8X1.25:10:GB/T 699-1999

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-11617

HXFLG:M6X1:40:GR8.8

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-11618

HXFLG:M6X1:58:GR8.8

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 717P06847

BRAKE PAD

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet 719P07374

HOUSING ASSEMBLY (LOWER)

$90.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 732P08345

DETENT SHAFT SPRING

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 741-07157

DETENT BALL .250

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 761-05106

BRAKE DISC

$15.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-08347

DRIVE BELT KEEPER

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 618P09929

TRANSMISSION

Note: Complete

$402.99

$

Usually ships in 3-6 days

0
