CC 3000 (41BDC03G100) - Cub Cadet String Trimmer (2002) Boom And Trimmer D-Handle Style Parts Diagram

String Trimmer

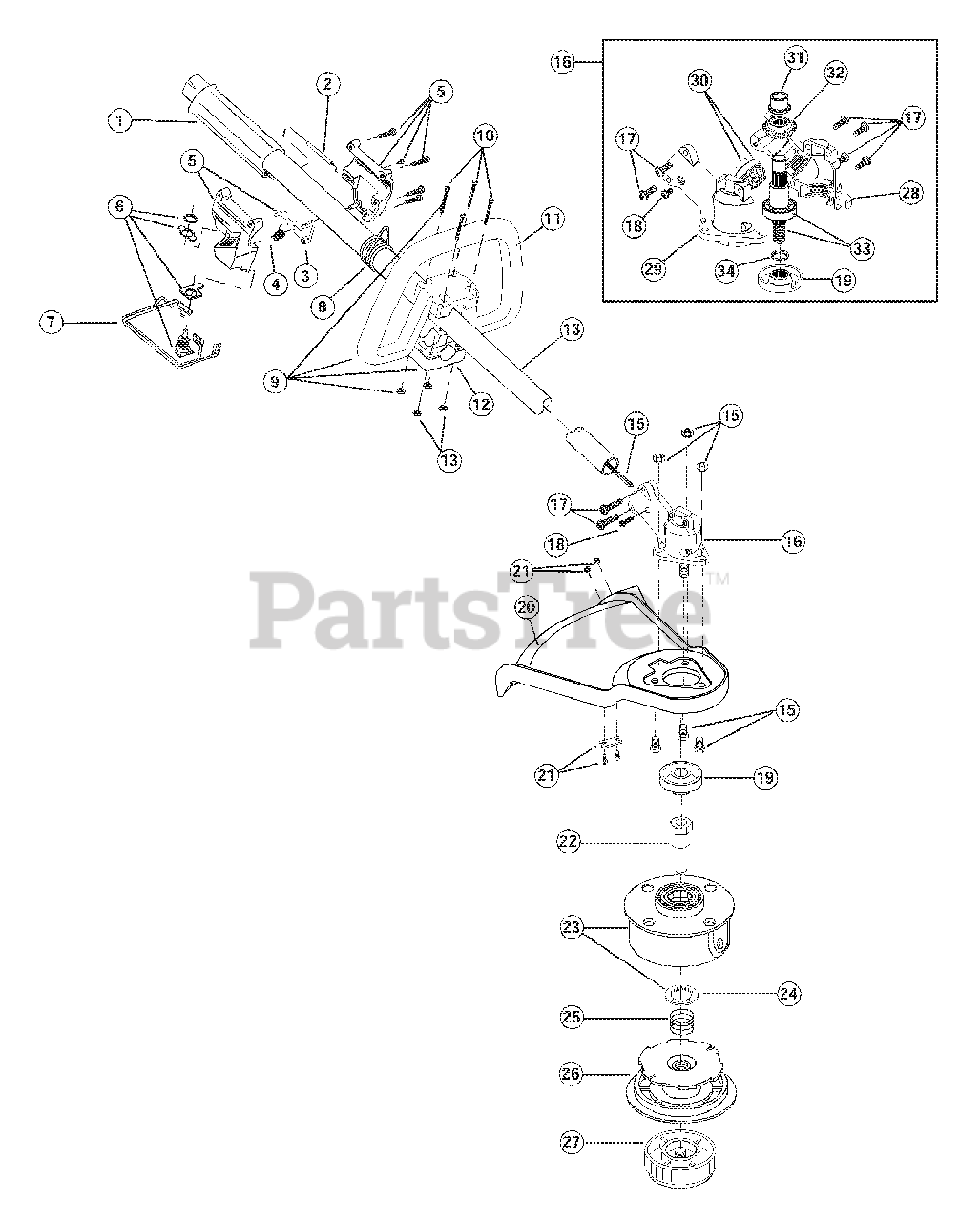

Boom And Trimmer D-Handle Style Parts Diagram

  • Title

1

Cub Cadet 791-180866

Grip

$

$

Not available

2

Cub Cadet 791-181688

Throttle Cable Assembly
(Superseded to 753-05088)

$20.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-180975

Throttle Trigger
(Superseded to 791-181807)

$10.99

$

In Stock, Qty 6

0

4

Cub Cadet 791-610314

Throttle Trigger Spring

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-181689

Throttle Trigger Assembly

Note: (Includes 4)

$

$

Not available

6

Cub Cadet 791-180252

Switch Assembly

$

$

Not available

7

Cub Cadet 791-181690

Wire Lead Assembly

$

$

Not available

8

Cub Cadet 791-610327

Shoulder Harness Clamp

$34.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-1151

Loop Handle Assembly

Note: (Includes 10-12)

$

$

Not available

10

Cub Cadet 753-1152

Screw

$

$

Not available

11

Cub Cadet 753-1153

Washer

$

$

Not available

12

Cub Cadet 753-1154

Nut
(Superseded to 9072)

$

$

Not available

13

Cub Cadet 791-182836

Drive Shaft Housing Assembly

$

$

Not available

?14

Cub Cadet 791-182833

Drive Shaft

$

$

Not available

15

Cub Cadet 791-182200

Shield Mount Screw Assembly

$7.49

$

In Stock, only 2 left!

0

16

Cub Cadet 791-182193

2 piece Gearbox Assembly

Note: (Includes 17-19)

$105.99

$

In Stock, only 2 left!

0

17

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

18

Cub Cadet 791-145569

Anti-Rotation Screw

$10.99

$

In Stock, Qty 7

0

19

Cub Cadet 791-182196

Blade Driver

$23.99

$

In Stock, only 2 left!

0

20

Cub Cadet 791-182189

Shield and Blade Assembly

Note: (Includes 21)

$69.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-682061

Blade Assembly

$15.99

$

In Stock, only 2 left!

0

22

Cub Cadet 791-612483

Spool Shaft

$59.99

$

In Stock, only 1 left!

0

23

Cub Cadet 791-683301

Outer Spool & Eyelet Assembly

$51.99

$

In Stock, Qty 5

0

24

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$7.49

$

In Stock, Qty 12

0

25

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, Qty 20+

0

26

Cub Cadet 791-147495

Inner Reel

$27.99

$

In Stock, Qty 5

0

27

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

28

Cub Cadet 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

29

Cub Cadet 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

30

Cub Cadet 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 17

$33.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

32

Cub Cadet 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

33

Cub Cadet 791-182197

Output Shaft Assembly

Note: (includes 31 & 32); 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

34

Cub Cadet 753-1159

O-Ring

Note: 2 Piece Gearbox Assembly Parts - Item 17

$

$

Not available

Cub Cadet 753-1160

Reel and Line Assembly
(Superseded to 753-1224)

Note: Optional Accessories; Item Not Shown

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 41AM079G100

Brush Cutter Accessory Kit

Note: Optional Accessories; Item Not Shown

$

$

Currently unavailable

Cub Cadet 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: (includes 23-28); Optional Accessories; Item Not Shown

$124.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Harness

Note: Optional Accessories; Item Not Shown

$41.99

$

Usually ships in 3-6 days

0
