CC 3024 H (26B-FFH5710) - Cub Cadet Pressure Washer (2019) General Assembly Parts Diagram

Pressure Washer

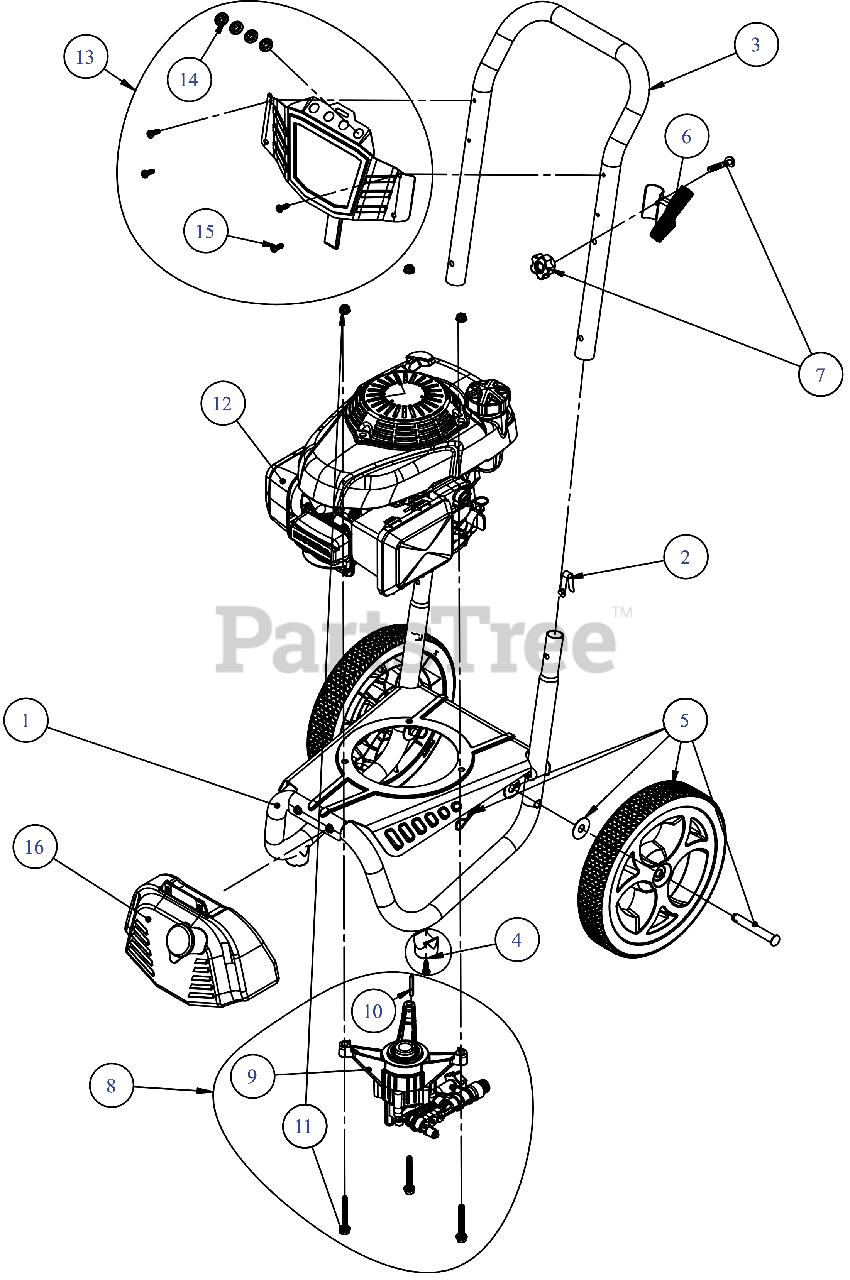

General Assembly Parts Diagram

  • Title

1

Cub Cadet FNA-7110753

FRAME BASE (YELLOW)

$99.99

$

Usually ships in 3-6 days

0

2

Cub Cadet FNA-7102122

HANDLE SNAP BUTTON

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet FNA-7110734

UPPER HANDLE

$21.99

$

Usually ships in 3-6 days

0

4

Cub Cadet FNA-7105468

FOOT PAD KIT

$

$

Not available

5

Cub Cadet FNA-7106790

WHEEL KIT-12"

$

$

Not available

6

Cub Cadet FNA-7110599

SPRAY GUN HOLDER

$

$

Not available

7

Cub Cadet FNA-7107941

KNOB-HANDLE MTG

$9.49

$

Usually ships in 3-6 days

0

8

Cub Cadet FNA-90026

PUMP ASSEMBLY-SVC 51AL24

$

$

Not available

9

PUMP

Note: (Order Kit FNA-90026)

$

$

Not available

10

Cub Cadet FNA-7101506

SHAFT KEY (3/16x3/16x1.5)

$

$

Not available

11

Cub Cadet FNA-7109580

HARDWARE KIT-PUMP MTG

$6.99

$

Usually ships in 3-6 days

0

12

ENGINE SVC ASSY W/ LABELS

Note: (See Separate Breakdown)

$

$

Not available

13

Cub Cadet FNA-7112188

DASHBOARD PANEL (W/LABEL CC 3024H)

$62.99

$

Usually ships in 3-6 days

0

14

Cub Cadet FNA-7106833

SPRAY NOZZLE HOLDER

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet FNA-7103264

DASHBOARD SCREW

$9.49

$

Usually ships in 3-6 days

0

16

Cub Cadet FNA-7110754

SOAP TANK (W/LBL)

$

$

Not available
