CC 3400 (26B-AJM1710) - Cub Cadet Pressure Washer (2019) Pump Assembly Parts Diagram

Pressure Washer

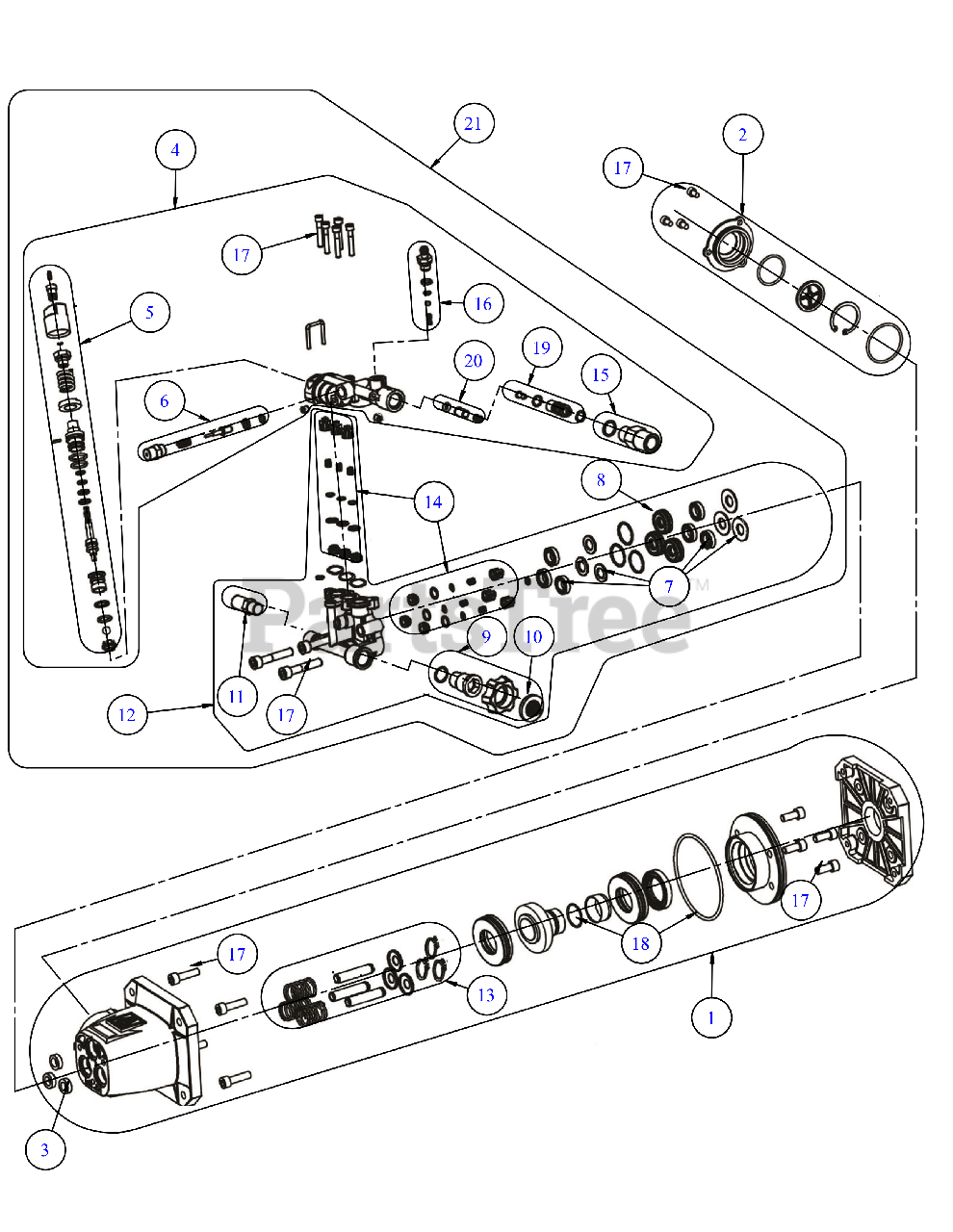

Pump Assembly Parts Diagram

  • Title

1

Cub Cadet FNA-7112276

CRANKCASE KIT-PUMP

$

$

Not available

2

Cub Cadet FNA-7105921

CVR KIT-CRNKCASE SIDE

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet FNA-7105741

SEAL KIT-OIL

$

$

Not available

4

Cub Cadet FNA-7112336

MANIFOLD KIT-BYPASS PRESR WASH

$

$

Not available

5

Cub Cadet FNA-7112354

REPAIR KIT-BYPASS PRESR WASH

$

$

Not available

6

Cub Cadet FNA-7106628

VLV KIT-PRESSURE BOOST

$

$

Not available

7

Cub Cadet FNA-7112361

SEAL KIT-WATER PRESR WASH

$

$

Not available

8

Cub Cadet FNA-7110156

SEAL SPACER KIT

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet FNA-7112362

INLET KIT-WATER PRESR WASH

$

$

Not available

10

Cub Cadet FNA-7000123

WATER INLET SCREEN

$

$

Not available

11

Cub Cadet FNA-7101359

VALVE-THERMAL RELIEF

$

$

Not available

12

Cub Cadet FNA-7112277

HEAD KIT-PUMP CYL PRESR WASH

$252.99

$

Usually ships in 3-6 days

0

13

Cub Cadet FNA-7112363

PISTON KIT-PUMP PRESR WASH

$72.99

$

Usually ships in 3-6 days

0

14

Cub Cadet FNA-7104223

VALVE KIT-MANIFOLD

$34.99

$

In Stock, only 2 left!

0

15

Cub Cadet FNA-7106686

CONNECTOR-OUTLET PRESR WASH

$

$

Not available

16

Cub Cadet FNA-7104228

INJECTOR KIT-SOAP

$

$

Not available

17

Cub Cadet FNA-7112279

HARDWARE KIT-PUMP PRESR WASH

$17.99

$

Usually ships in 3-6 days

0

18

Cub Cadet FNA-7112280

ORING KIT-PUMP PRESR WASH

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet FNA-7110154

VENTURI KIT

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet FNA-7112281

VALVE KIT-CHECK PRESR WASH

$17.99

$

Usually ships in 3-6 days

0

21

Cub Cadet FNA-7112337

HEAD KIT-PUMP PRESR WASH

$

$

Not available
