CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Carburetor Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

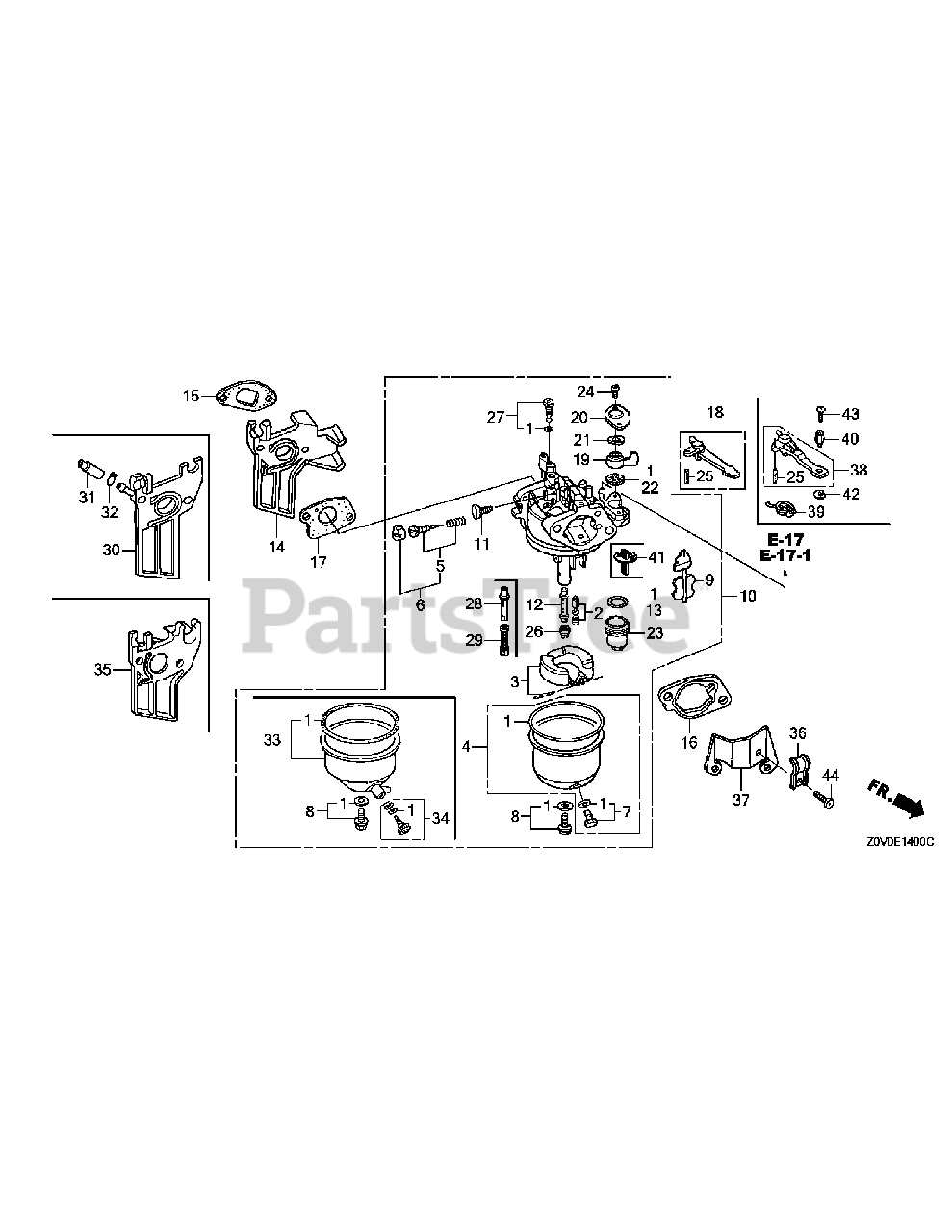

Engine-Carburetor Parts Diagram

  • Title

1

Honda 16010-ZE1-812

Gasket Set

$21.99

$

In Stock, Qty 8

0

2

Honda 16011-ZE0-005

Valve Set, Float

$31.99

$

In Stock, Qty 6

0

3

Honda 16013-Z0S-B01

16013-Z0S-B01 Float Set

$36.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z4M-911

Chamber Set, Float

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

Screw Set, Pilot

Note: Not used on this spec

$

$

Currently unavailable

6

Honda 16016-ZH7-W01

Screw Set, Pilot

$22.99

$

In Stock, Qty 5

0

7

Honda 16024-Z5T-901

Screw Set, Drain

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16028-Z5T-901

Screw Set

$6.49

$

In Stock, only 2 left!

0

9

Honda 16044-Z4M-911

Choke Set

$40.99

$

In Stock, only 1 left!

0

10

Cub Cadet 16100-Z4V-472

Carburetor Assy.(Be59Q A)
(Superseded to 16100-Z4V-V72)

$57.99

$

In Stock, only 1 left!

0

11

Honda 16124-ZE0-005

Screw, Throttle Stop

$18.99

$

In Stock, only 2 left!

0

12

Honda 16166-Z4V-921

Nozzle, Main

$28.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

Packing, Fuel Strainer Cup

$7.99

$

In Stock, Qty 20+

0

14

Cub Cadet n/a

Insulator, Carburetor

Note: Not used on this spec

$

$

Currently unavailable

15

Honda 16212-ZH8-800

Packing, Insulator

$3.99

$

In Stock, Qty 20+

0

16

Honda 16220-ZE1-020

Spacer Comp., Carburetor

$8.99

$

In Stock, Qty 20+

0

17

Honda 16221-ZH8-801

Packing, Carburetor

$2.49

$

In Stock, Qty 20+

0

18

Honda 16610-ZE1-000

Lever Comp., Choke(Std.)

$11.99

$

In Stock, Qty 10

0

19

Honda 16953-ZE1-812

Lever, Cock

$11.99

$

In Stock, only 2 left!

0

20

Honda 16954-ZE1-812

Plate, Lever Setting

$4.49

$

In Stock, Qty 8

0

21

Honda 16956-ZE1-811

Spring, Cock Lever

$4.49

$

In Stock, only 3 left!

0

22

Honda 16957-ZE1-812

Packing, Fuel Cock

$4.99

$

In Stock, Qty 6

0

23

Honda 16967-ZE0-811

Cup, Fuel Strainer

$24.99

$

In Stock, only 2 left!

0

24

Cub Cadet 93500-03006-1H

Screw, Pan, 3X6
(Superseded to 93500-03006-0H)

$1.49

$

In Stock, Qty 10

0

25

Honda 94305-20122

Pin, Spring, 2X12

$2.49

$

In Stock, only 2 left!

0

26

99101-Zk7-0700

Jet, Main, #70

$

$

Not available

26

Honda 99101-ZH8-0720

Jet, Main, #72

$8.99

$

In Stock, only 2 left!

0

26

Honda 99101-ZH8-0750

Jet, Main, #75

$8.99

$

In Stock, only 1 left!

0

26

Honda 99101-ZK7-0680

Jet, Main, #68

$8.99

$

In Stock, only 2 left!

0

27

Honda 99204-ZE2-0400

Jet Set, Pilot, #40

$24.99

$

In Stock, only 4 left!

0

28

Cub Cadet n/a

Nozzle, Main

Note: Not used on this spec

$

$

Currently unavailable

29

Cub Cadet n/a

Porous, Nozzle

Note: Not used on this spec

$

$

Currently unavailable

30

Cub Cadet n/a

Insulator Comp., Carburetor

Note: Not used on this spec

$

$

Currently unavailable

31

Cub Cadet n/a

Cap, Boost

Note: Not used on this spec

$

$

Currently unavailable

32

Cub Cadet n/a

Clip, Tube(B7)

Note: Not used on this spec

$

$

Currently unavailable

33

Cub Cadet n/a

Chamber, Float

Note: Not used on this spec

$

$

Currently unavailable

34

Cub Cadet n/a

Screw Set, Drain

Note: Not used on this spec

$

$

Currently unavailable

35

Honda 16211-Z4V-000

Insulator, Carburetor

$27.99

$

In Stock, only 2 left!

0

36

Cub Cadet n/a

Holder, Control Cable

Note: Not used on this spec

$

$

Currently unavailable

37

Cub Cadet n/a

Stay, Choke Control

Note: Not used on this spec

$

$

Currently unavailable

38

Cub Cadet n/a

Lever Comp., Choke(Remote)

Note: Not used on this spec

$

$

Currently unavailable

39

Cub Cadet n/a

Spring, Return

Note: Not used on this spec

$

$

Currently unavailable

40

Cub Cadet n/a

Holder, Cable

Note: Not used on this spec

$

$

Currently unavailable

41

Honda 16959-Z5T-901

Filter, Cup

$8.99

$

In Stock, Qty 12

0

42

Cub Cadet n/a

Circlip, 5Mm

Note: Not used on this spec

$

$

Currently unavailable

43

Cub Cadet n/a

Screw, Pan, 4X8

Note: Not used on this spec

$

$

Currently unavailable

44

Cub Cadet n/a

Screw, Pan, 5X8

Note: Not used on this spec

$

$

Currently unavailable
