CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Control Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

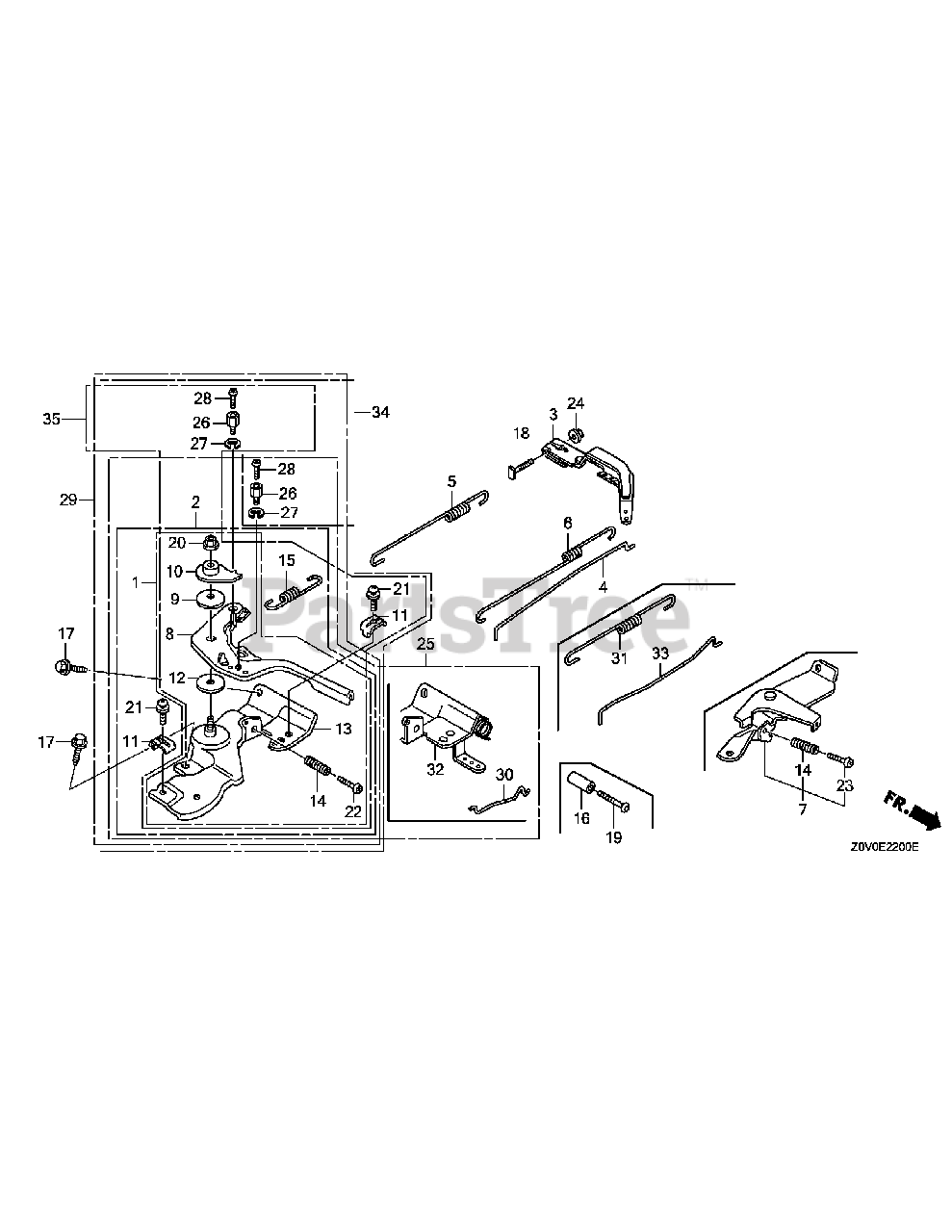

Engine-Control Parts Diagram

  • Title

1

Cub Cadet n/a

Control Assy

Note: Not used on this spec

$

$

Currently unavailable

2

Honda 16500-Z4M-307

Control Assy.(Remote)
(Superseded to 16500-Z4M-820)

$41.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZL0-000

Arm, Governor

$19.99

$

In Stock, only 2 left!

0

4

Honda 16555-Z4M-000

Rod, Governor
(Superseded to 16555-Z0T-N70)

$5.49

$

In Stock, Qty 10

0

5

Honda 16561-ZL0-000

Spring, Governor

$5.99

$

In Stock, Qty 7

0

6

Honda 16562-ZE1-020

Spring, Throttle Return

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet n/a

Control Assy

Note: Not used on this spec

$

$

Currently unavailable

8

Honda 16571-Z4M-000

Lever, Control

$7.49

$

In Stock, only 2 left!

0

9

Honda 16574-ZE1-000

Spring, Lever

$4.49

$

In Stock, Qty 7

0

10

Honda 16575-ZH8-000

Washer, Control Lever

$6.49

$

In Stock, only 1 left!

0

11

Honda 16576-891-000

Holder, Cable

$5.49

$

In Stock, Qty 7

0

12

Honda 16578-ZE1-000

Spacer, Control Lever

$5.99

$

In Stock, only 1 left!

0

13

Honda 16580-Z4M-810

Base Comp., Control

$29.99

$

In Stock, only 2 left!

0

14

Honda 16584-883-300

Spring, Control Adjusting

$5.49

$

In Stock, only 2 left!

0

15

Honda 16592-ZE1-810

Spring, Cable Return

$2.49

$

In Stock, Qty 19

0

16

Cub Cadet n/a

Collar, Stopper

Note: Not used on this spec

$

$

Currently unavailable

17

Honda 90013-883-000

Bolt, Flange, 6X12(Ct200)

$2.49

$

In Stock, Qty 20+

0

18

Honda 90015-ZE5-010

Bolt, Governor Arm

$3.49

$

In Stock, only 3 left!

0

19

Cub Cadet n/a

Screw, Recessed, 5X25

Note: Not used on this spec

$

$

Currently unavailable

20

Honda 90114-SA0-000

Nut, Self-Lock, 6Mm

$4.49

$

In Stock, Qty 20+

0

21

Honda 93500-05016-0A

Screw, Pan, 5X16

$1.49

$

In Stock, Qty 12

0

22

Honda 93500-05025-0H

Screw, Pan, 5X25

$1.49

$

In Stock, only 4 left!

0

23

Cub Cadet n/a

Screw, Pan, 5X35

Note: Not used on this spec

$

$

Currently unavailable

24

Honda 94050-06000

Nut, Flange, 6Mm

$0.99

$

In Stock, Qty 20+

0

25

Cub Cadet n/a

Control Assy.(

Note: Not used on this spec

$

$

Currently unavailable

26

Cub Cadet n/a

Holder, Wire

Note: Not used on this spec

$

$

Currently unavailable

27

Cub Cadet n/a

Circlip, 5Mm

Note: Not used on this spec

$

$

Currently unavailable

28

Cub Cadet n/a

Screw, Pan, 4X6

Note: Not used on this spec

$

$

Currently unavailable

29

Cub Cadet n/a

Control Assy.(Norton)

Note: Not used on this spec

$

$

Currently unavailable

30

Cub Cadet n/a

Rod, Control

Note: Not used on this spec

$

$

Currently unavailable

31

Cub Cadet n/a

Spring, Throttle Return

Note: Not used on this spec

$

$

Currently unavailable

32

Cub Cadet n/a

Base Comp., Control

Note: Not used on this spec

$

$

Currently unavailable

33

Cub Cadet n/a

Rod, Throttle

Note: Not used on this spec

$

$

Currently unavailable

34

Cub Cadet n/a

Control Assy.(Remote Intl-S)

Note: Not used on this spec

$

$

Currently unavailable

35

Cub Cadet n/a

Control Assy.(Remote Intl-S)

Note: Not used on this spec

$

$

Currently unavailable
