CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Fan Cover Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

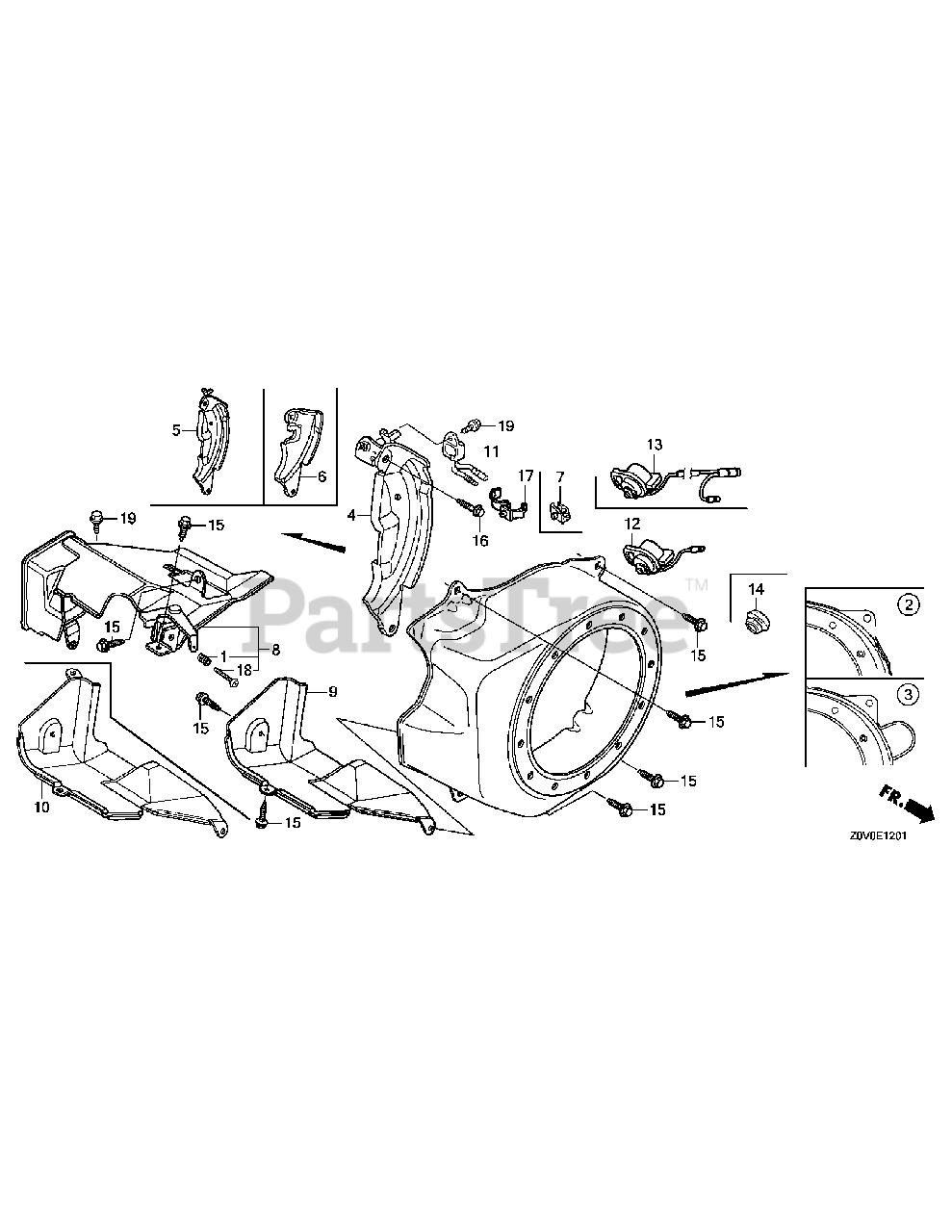

Engine-Fan Cover Parts Diagram

  • Title

1

Cub Cadet n/a

Spring, Control Adjusting

Note: Not used on this spec

$

$

Currently unavailable

2

Honda 19610-Z4M-000ZB

Cover Comp., Fan

$36.99

$

In Stock, only 2 left!

0

3

Cub Cadet n/a

Cover Comp., Fan

Note: Not used on this spec

$

$

Currently unavailable

4

Honda 19611-Z4M-810

Plate Comp., Side(Oil Alert)

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

Plate, Side(Std.)

Note: Not used on this spec

$

$

Currently unavailable

6

Cub Cadet n/a

Plate, Side(Starter Motor)

Note: Not used on this spec

$

$

Currently unavailable

7

Cub Cadet n/a

Clamp, Cord

Note: Not used on this spec

$

$

Currently unavailable

8

Cub Cadet n/a

Shroud Assy., Upper

Note: Not used on this spec

$

$

Currently unavailable

9

Honda 19630-ZH8-000

Shroud Comp.

$18.99

$

Usually ships in 3-6 days

0

10

Cub Cadet n/a

Shroud Comp., Lower

Note: Not used on this spec

$

$

Currently unavailable

11

Honda 34150-ZH7-023

Alert Unit, Oil

$57.99

$

In Stock, only 3 left!

0

12

Cub Cadet n/a

Switch Assy., Engine Stop

Note: Not used on this spec

$

$

Currently unavailable

13

Honda 35120-Z0T-851

Switch Assy., Engine Stop
(Superseded to 35120-Z0T-831)

$7.49

$

In Stock, only 3 left!

0

14

Cub Cadet n/a

Grommet, Drain Hole

Note: Not used on this spec

$

$

Currently unavailable

15

Honda 90013-883-000

Bolt, Flange, 6X12(Ct200)

$2.49

$

In Stock, Qty 20+

0

16

Honda 90022-888-010

Bolt, Flange, 6X20(Ct200)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90601-ZH7-013

Clip, Harness

$2.99

$

In Stock, only 1 left!

0

18

Cub Cadet n/a

Screw, Pan, 5X35

Note: Not used on this spec

$

$

Currently unavailable

19

Honda 95701-06008-00

Bolt, Flange, 6X8

$4.99

$

In Stock, Qty 19

0
