CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Fuel Tank Parts Diagram

Pressure Washer - 3400 PSI Max.

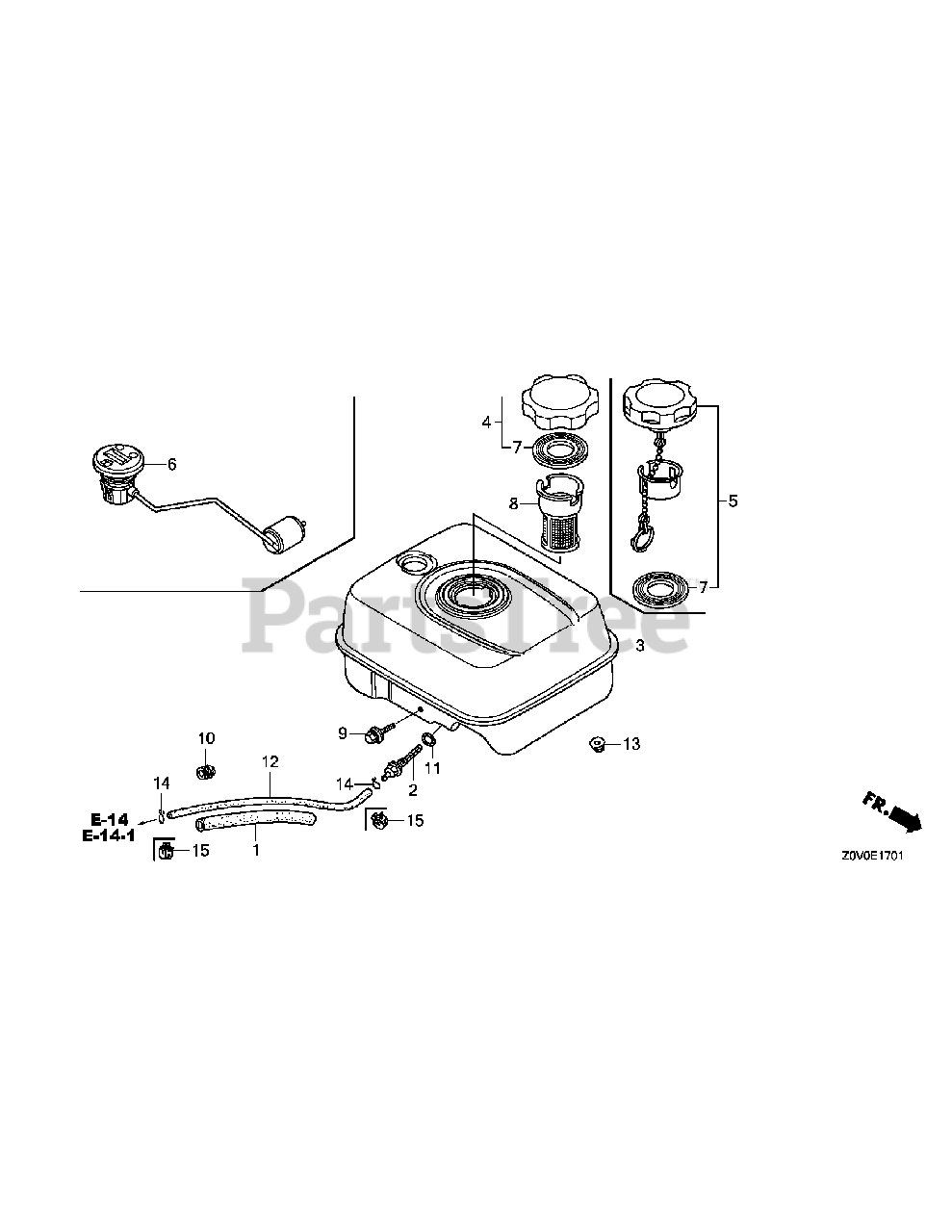

Engine-Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 16854-ZH8-000

Rubber, Supporter(107Mm)

$5.49

$

In Stock, Qty 6

0

2

Cub Cadet 16955-ZE1-010

Joint, Fuel Tank

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet 17510-Z4M-000ZB

Tank Comp., Fuel

$71.99

$

In Stock, only 2 left!

0

4

Cub Cadet n/a

Cap Comp., Fuel Filler

Note: Not used on this spec

$

$

Currently unavailable

5

Cub Cadet 17620-Z4H-030

Cap Comp., Fuel Filler
(Superseded to 17620-Z4H-912)

$102.99

$

Usually ships in 3-6 days

0

6

Cub Cadet n/a

Gauge Assy., Fuel

Note: Not used on this spec

$

$

Currently unavailable

7

Cub Cadet 17631-Z0T-801

Packing, Fuel Filler Cap

$0.99

$

In Stock, Qty 7

0

8

Cub Cadet n/a

Filter, Fuel

Note: Not used on this spec

$

$

Currently unavailable

9

Cub Cadet 90004-ZL0-003

Bolt, Flange, 6X34

$1.99

$

In Stock, Qty 6

0

10

Cub Cadet n/a

Rubber, Fuel(9X15X20)

Note: Not used on this spec

$

$

Currently unavailable

11

Cub Cadet 91353-671-004

O-Ring, 14Mm(Nok)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 91424-Z4M-003

Tube, Fuel, 4.5X145(Fkm)

$

$

Not available

13

Cub Cadet 94050-06000

Nut, Flange, 6Mm

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet n/a

Clip, Tube(B8)

Note: Not used on this spec

$

$

Currently unavailable

15

Cub Cadet 95002-40800-08

Clamp, Tube(D8)

$3.49

$

In Stock, Qty 12

0
