CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Muffler Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

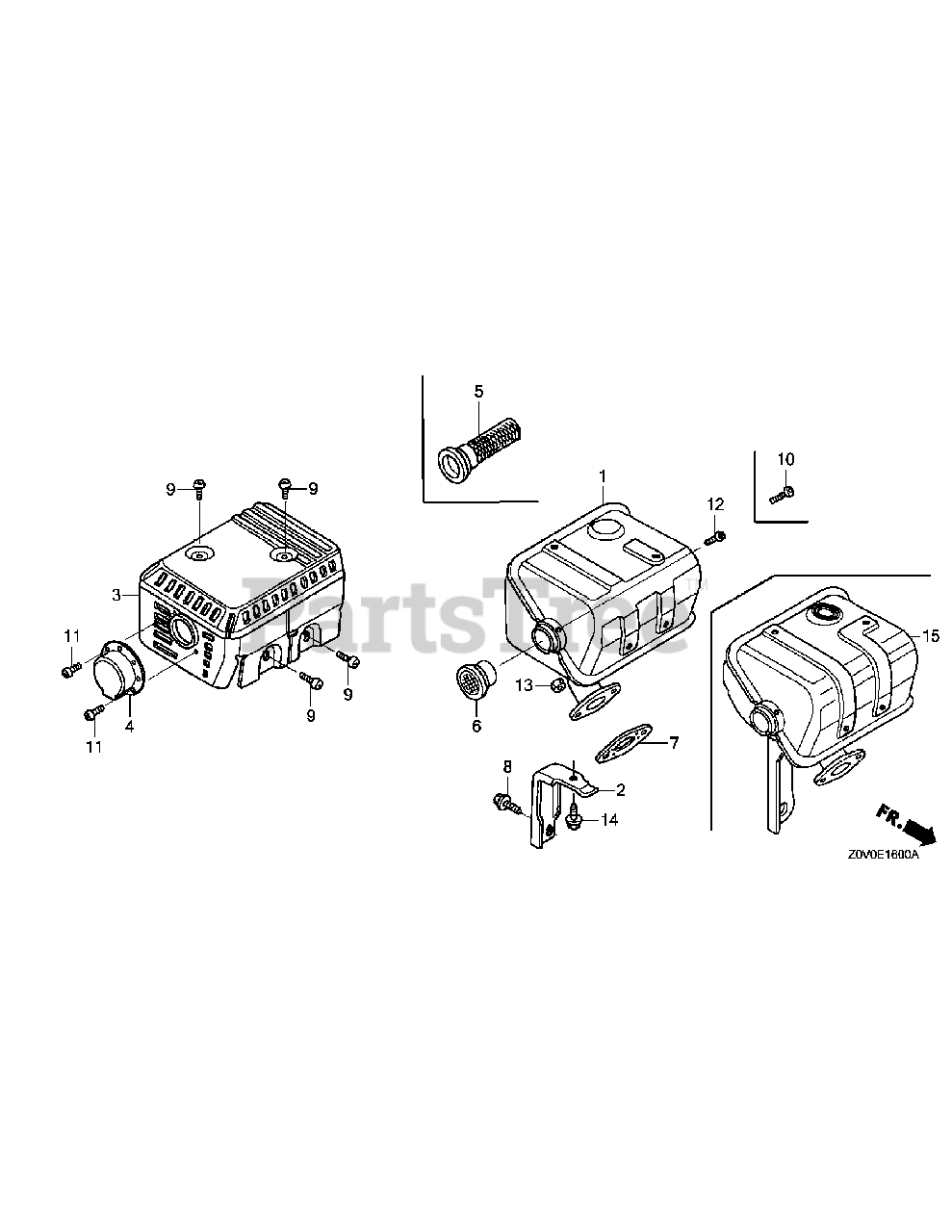

Engine-Muffler Parts Diagram

  • Title

1

Cub Cadet n/a

Muffler Comp.

Note: Not used on this spec

$

$

Currently unavailable

2

Cub Cadet n/a

Stay, Muffler

Note: Not used on this spec

$

$

Currently unavailable

3

Honda 18320-Z4V-000

Protector Comp., Muffler

$11.99

$

In Stock, only 4 left!

0

4

Cub Cadet n/a

Cap, Muffler

Note: Not used on this spec

$

$

Currently unavailable

5

Honda 18355-ZL0-000

Arrester, Spark

$22.99

$

In Stock, only 1 left!

0

6

Cub Cadet n/a

Netting, Wire Flange

Note: Not used on this spec

$

$

Currently unavailable

7

Honda 18381-Z0T-801

Gasket, Muffler

$5.99

$

In Stock, Qty 8

0

8

Honda 90016-ZE1-000

Bolt, Flange, 6X13(Ct200)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90050-ZE1-000

Screw, Tapping, 5X8

$2.49

$

In Stock, Qty 17

0

10

Honda 90055-ZE1-000

Screw, Tapping, 4X6

$1.49

$

In Stock, Qty 8

0

11

Cub Cadet n/a

Screw, Tapping, 4X6

Note: Not used on this spec

$

$

Currently unavailable

12

Cub Cadet n/a

Screw, Tapping, 4X6

Note: Not used on this spec

$

$

Currently unavailable

13

Honda 94001-08000-0S

Nut, Hex., 8Mm

$1.99

$

Usually ships in 3-6 days

0

14

Cub Cadet n/a

Bolt, Flange, 6X12

Note: Not used on this spec

$

$

Currently unavailable

15

Honda 18310-Z4V-000

Muffler Comp.
(Superseded to 18310-Z4V-010)

$30.99

$

In Stock, only 1 left!

0
