CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Piston Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

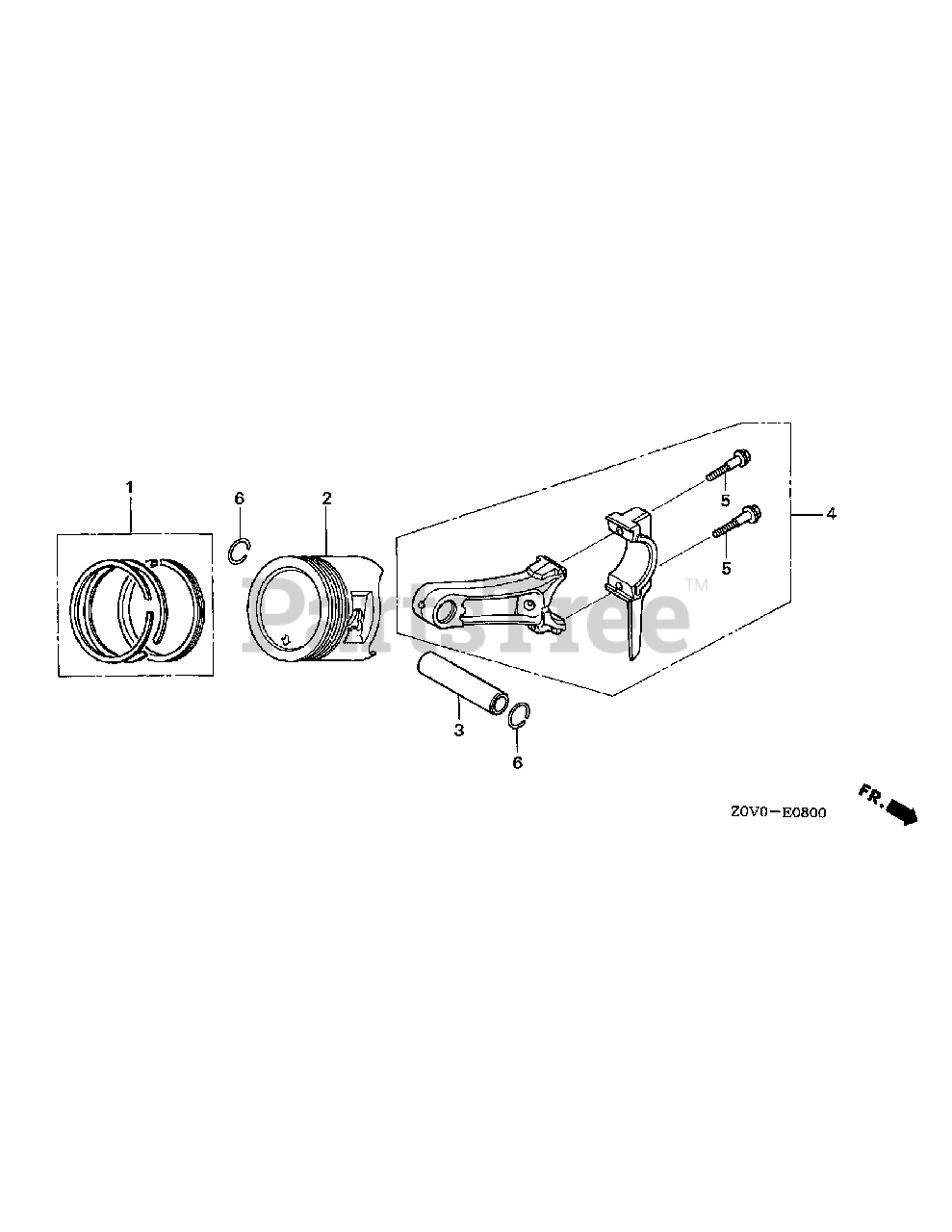

Engine-Piston Parts Diagram

  • Title

1

Honda 13010-Z4K-004

Ring Set, Piston(Std.)(Teikoku)

$35.99

$

In Stock, Qty 6

0

1

Honda 13010-Z4M-003

Ring Set, Piston(Std.)(Riken)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z4K-004

Ring Set, Piston(0.25)(Teikoku)

$

$

Not available

1

Honda 13011-Z4M-003

Ring Set, Piston(0.25)(Riken)

$

$

Not available

1

Honda 13012-Z4K-004

Ring Set, Piston(0.50)(Teikoku)

$

$

Not available

1

Honda 13012-Z4M-003

Ring Set, Piston(0.50)(Riken)
(Superseded to 13010-Z4M-003)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z4K-004

Ring Set, Piston(0.75)(Teikoku)

$

$

Not available

1

Honda 13013-Z4M-003

Ring Set, Piston(0.75)(Riken)

$

$

Not available

2

Honda 13101-Z4V-800

Piston(Std.)

$26.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZL0-020

Piston(0.25)

$

$

Not available

2

Honda 13103-ZL0-020

Piston(0.50)

$

$

Not available

2

Honda 13104-ZL0-020

Piston(0.75)

$

$

Not available

3

Honda 13111-Z4M-000

Pin, Piston

$22.99

$

In Stock, only 2 left!

0

4

Honda 13200-Z0T-800

Rod Assy., Connecting
(Superseded to 13200-Z4V-900)

$14.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE1-000

Bolt, Connecting Rod

$4.49

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE1-000

Clip, Piston Pin, 18Mm

$1.99

$

In Stock, Qty 14

0
