CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) Engine-Recoil Starter Parts Diagram

The Cub Cadet CC 3425 is a semi‑pro, cold‑water pressure washer delivering 3400 PSI at 2.5 GPM. Powered by a Honda GX200 engine, it features a heavy‑duty AAA™ Triplex pump with PowerBoost, a 25' wire‑reinforced hose, five quick‑connect spray tips, Dial‑N‑Wash pressure control, onboard accessory storage, and a durable powder‑coated cart.

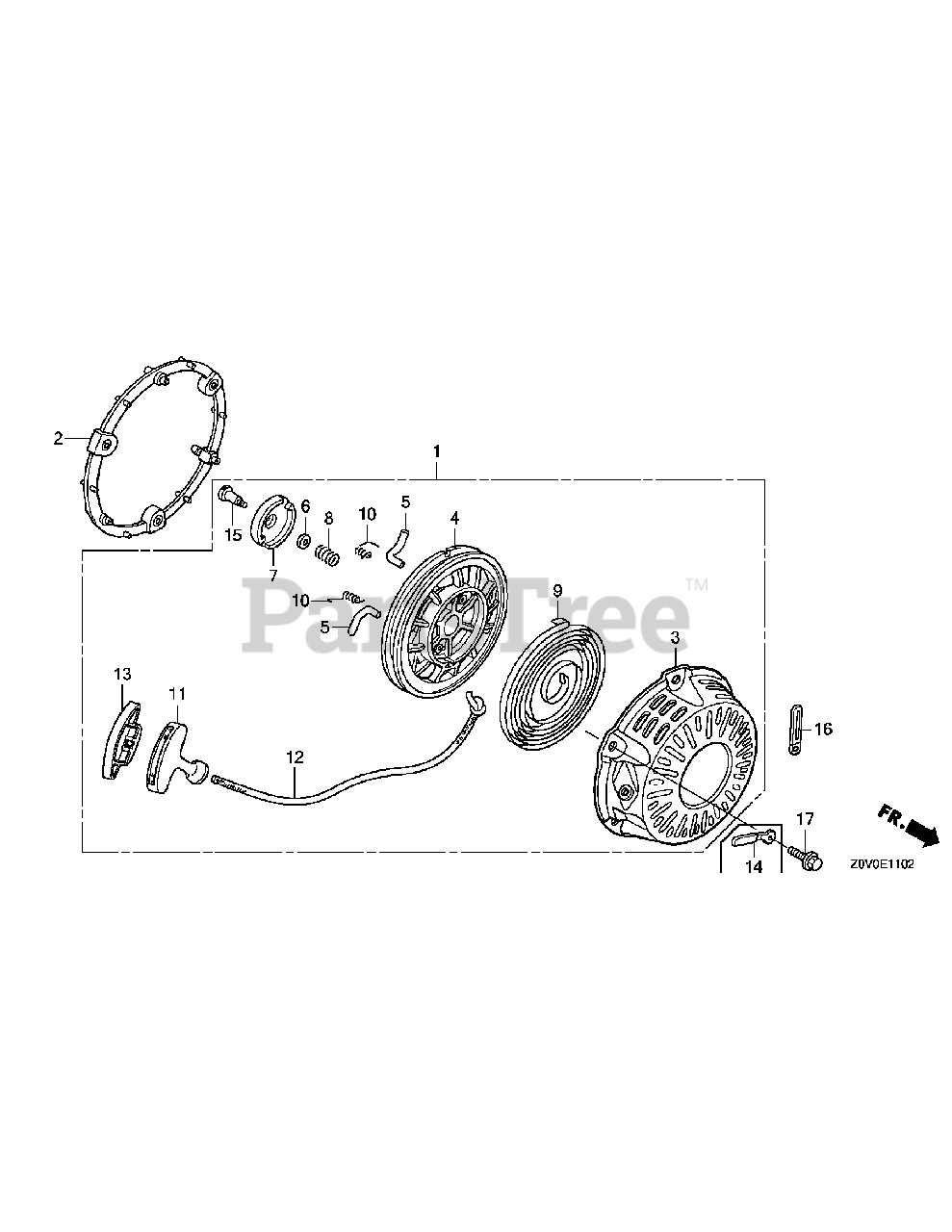

Engine-Recoil Starter Parts Diagram

  • Title

1

Honda 28400-Z4M-305ZD

Starter Assy., Recoil

$23.99

$

In Stock, only 1 left!

0

2

Honda 28405-ZL0-000ZA

Spacer, Recoil Starter

$34.99

$

In Stock, only 1 left!

0

3

Honda 28410-Z4M-003ZD

Case Comp., Recoil Starter

$14.99

$

In Stock, only 2 left!

0

4

Honda 28421-Z0T-003

Reel, Recoil Starter

$40.99

$

In Stock, only 1 left!

0

5

Honda 28422-ZH8-801

Ratchet, Starter

$7.49

$

In Stock, only 4 left!

0

6

Honda 28431-ZH8-801

Plate, Friction

$5.99

$

In Stock, only 2 left!

0

7

Honda 28433-ZH8-801

Guide, Ratchet

$10.99

$

In Stock, only 1 left!

0

8

Honda 28441-ZH8-801

Spring, Friction

$4.99

$

In Stock, Qty 5

0

9

Honda 28442-ZH8-003

Spring, Recoil Starter

$20.99

$

In Stock, Qty 6

0

10

Honda 28443-ZH8-801

Spring, Return

$4.49

$

Usually ships in 3-6 days

0

11

Honda 28461-Z4M-305

Knob, Recoil Starter
(Superseded to 28461-Z4M-003)

$

$

Not available

12

Honda 28462-ZH8-003

Rope, Recoil Starter

$13.99

$

In Stock, only 1 left!

0

13

Honda 28463-Z4M-003

Knob, Reinforcement

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet n/a

Clip, Sub Cord

Note: Not used on this spec

$

$

Currently unavailable

15

Honda 90003-ZH8-801

Screw, Setting

$4.99

$

In Stock, Qty 5

0

16

Cub Cadet n/a

Clip, Wire

Note: Not used on this spec

$

$

Currently unavailable

17

Honda 95701-06018-00

Bolt, Flange, 6X18

$2.49

$

In Stock, only 3 left!

0
