CC 3425 (26A-AJH2710) - Cub Cadet Pressure Washer (2015) General Assembly Parts Diagram

Pressure Washer - 3400 PSI Max.

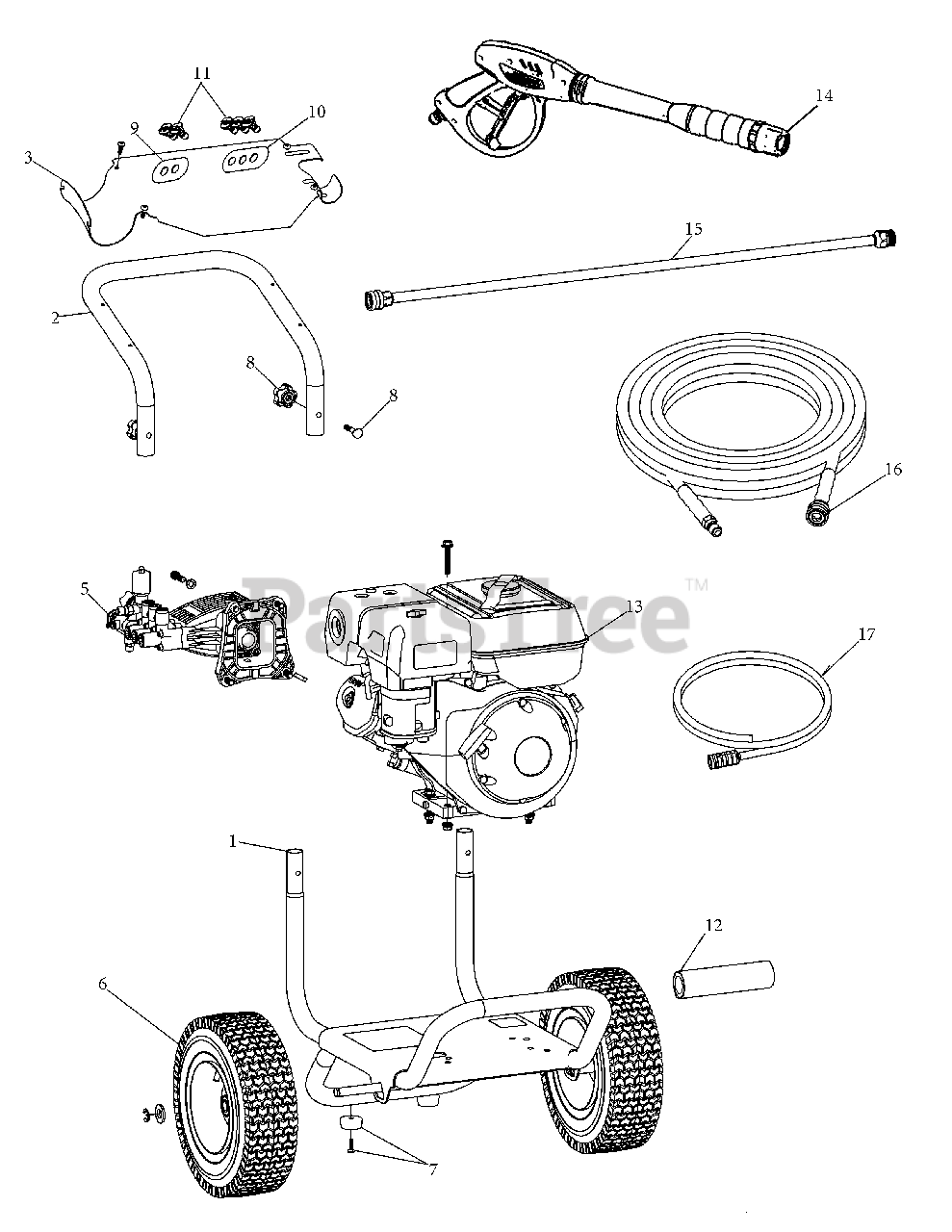

General Assembly Parts Diagram

  • Title

1

Cub Cadet FNA-7108050

Base Assembly, Frame

$

$

Not available

2

Cub Cadet FNA-7108051

Handle, Upper

$15.99

$

Usually ships in 3-6 days

0

3

Cub Cadet FNA-7108181

Panel, Dashboard w/Label

$61.99

$

Usually ships in 3-6 days

0

5

Cub Cadet FNA-530011

Pump Assembly
(Superseded to FNA-530008P)

$

$

Not available

6

Cub Cadet FNA-7108040

Wheel Assembly

$

$

Not available

7

Cub Cadet FNA-7103292

Foot Pad

$

$

Not available

8

Cub Cadet FNA-7107941

Knob, Handle Mounting

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet FNA-7107067

Nozzle Holder, 2pc

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet FNA-7107068

Nozzle Holder, 3pc

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet FNA-7104818

Nozzle Set 5pc

$

$

Not available

12

Cub Cadet FNA-7107408

Grip, Handle

$30.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HM-656821

Engine Assembly

$

$

Not available

14

Cub Cadet FNA-7107849

Gun, Spray
(Superseded to FNA-7108168P)

$

$

Not available

15

Cub Cadet FNA-7103550

Wand, Spray Gun 16"

$

$

Not available

16

Cub Cadet FNA-7105645

Hose, Spray 26'

$

$

Not available

17

Cub Cadet FNA-7102207

Hose, Soap w/Filter

$

$

Not available

Cub Cadet FNA-7102045

Tool, Nozzle Cleaning

Note: (Not Shown)

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet FNA-7200068

Hose Adapter 3/8 Coupler x 22mm

Note: (Not Shown)

$

$

Not available
