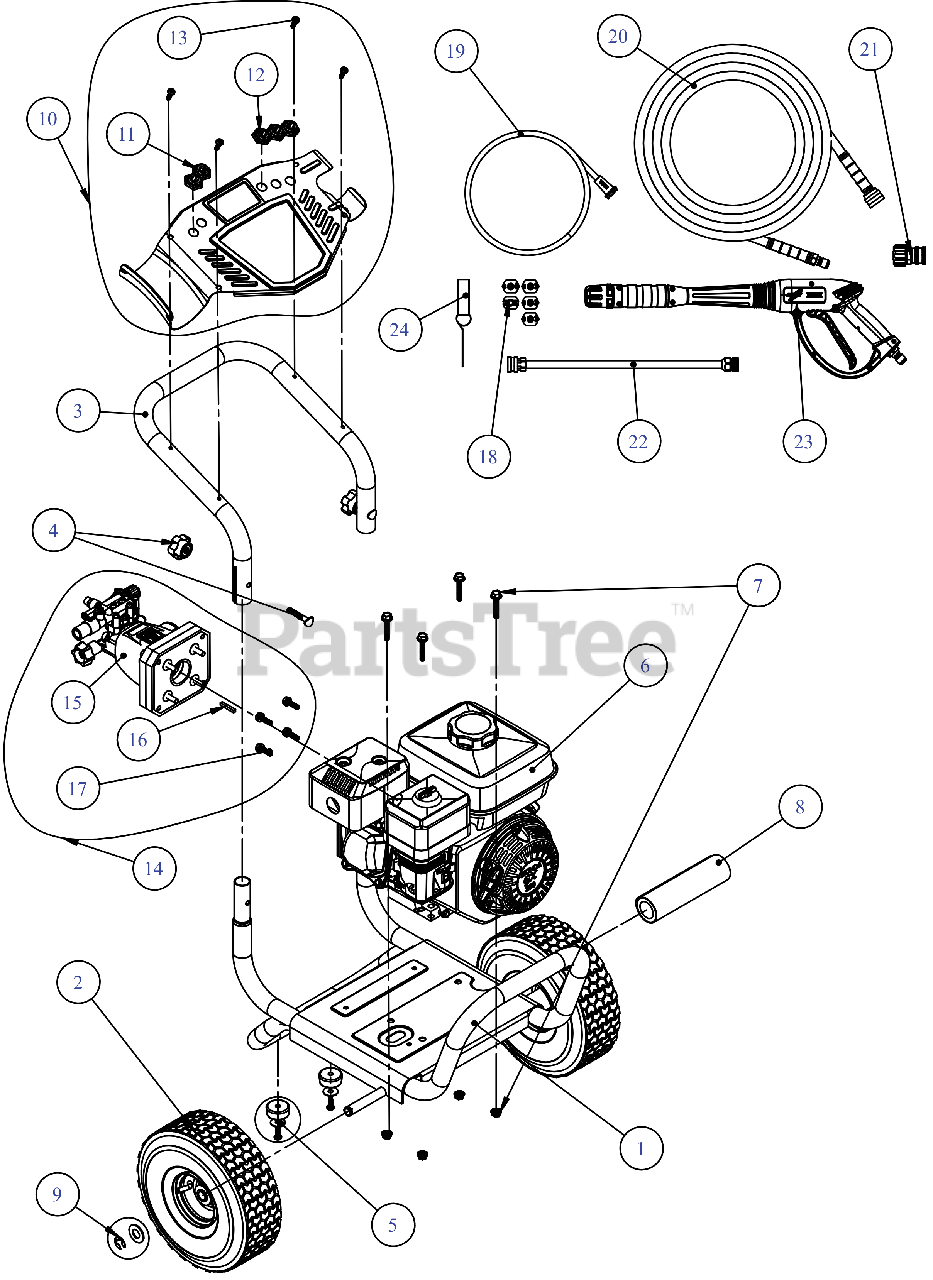

CC 3600 (26B-ALH2710) - Cub Cadet Pressure Washer (2019) General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Cub Cadet FNA-7108050

BASE ASSEMBLY-FRAME

$

$

Not available

2

Cub Cadet FNA-7108040

WHEEL ASSEMBLY

$

$

Not available

3

Cub Cadet FNA-7108051

UPPER HANDLE

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet FNA-7107941

KNOB-HANDLE MTG

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet FNA-7103292

FOOT PAD

$

$

Not available

6

ENGINE SVC ASSY W/ LABELS,

Note: (Not Serviced)

$

$

Not available

7

Cub Cadet FNA-7103750

MOUNTING KIT: ENGINE

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet FNA-7107408

GRIP-HANDLE

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet FNA-7111659

WHEEL MOUNTING KIT

$27.99

$

Usually ships in 3-6 days

0

10

Cub Cadet FNA-7112183

DASHBOARD PANEL (W/LABEL CC 3600)

$52.99

$

Usually ships in 3-6 days

0

11

Cub Cadet FNA-7107067

HOLDER-NOZZLE 2 PC

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet FNA-7107068

HOLDER-NOZZLE 3 PC

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet FNA-7111658

DASHBOARD MOUNTING KIT (4-SCREWS)

$36.99

$

Usually ships in 3-6 days

0

14

PUMP KIT, AX300

Note: (Not Serviced)

$

$

Not available

15

Cub Cadet FNA-540001

AX300 PUMP

$

$

Not available

16

Cub Cadet FNA-7104174

SHAFT KEY (3/16x3/16x1.25)

$8.49

$

Usually ships in 3-6 days

0

17

Cub Cadet FNA-7105474

HARDWARE KIT: PUMP MOUNTING

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet FNA-7109338

5 PIECE NOZZLE SET

$

$

Not available

19

Cub Cadet FNA-7102207

HOSE-SOAP W/FILTER

$

$

Not available

20

Cub Cadet FNA-7105645

HOSE-SPRAY GUN 25'

$

$

Not available

21

Cub Cadet FNA-7200068

ADAPTER-HOSE

$

$

Not available

22

Cub Cadet FNA-7103550

WAND-SPRAY GUN 16"

$

$

Not available

23

Cub Cadet FNA-7110276

SPRAY GUN REAR ENTRY

$

$

Not available

24

Cub Cadet FNA-7102045

TOOL-NOZZLE CLEANING

$7.99

$

Usually ships in 3-6 days

0
