CC 3700 (61071) - Cub Cadet Pressure Washer (2019) General Assembly Parts Diagram

Pressure Washer

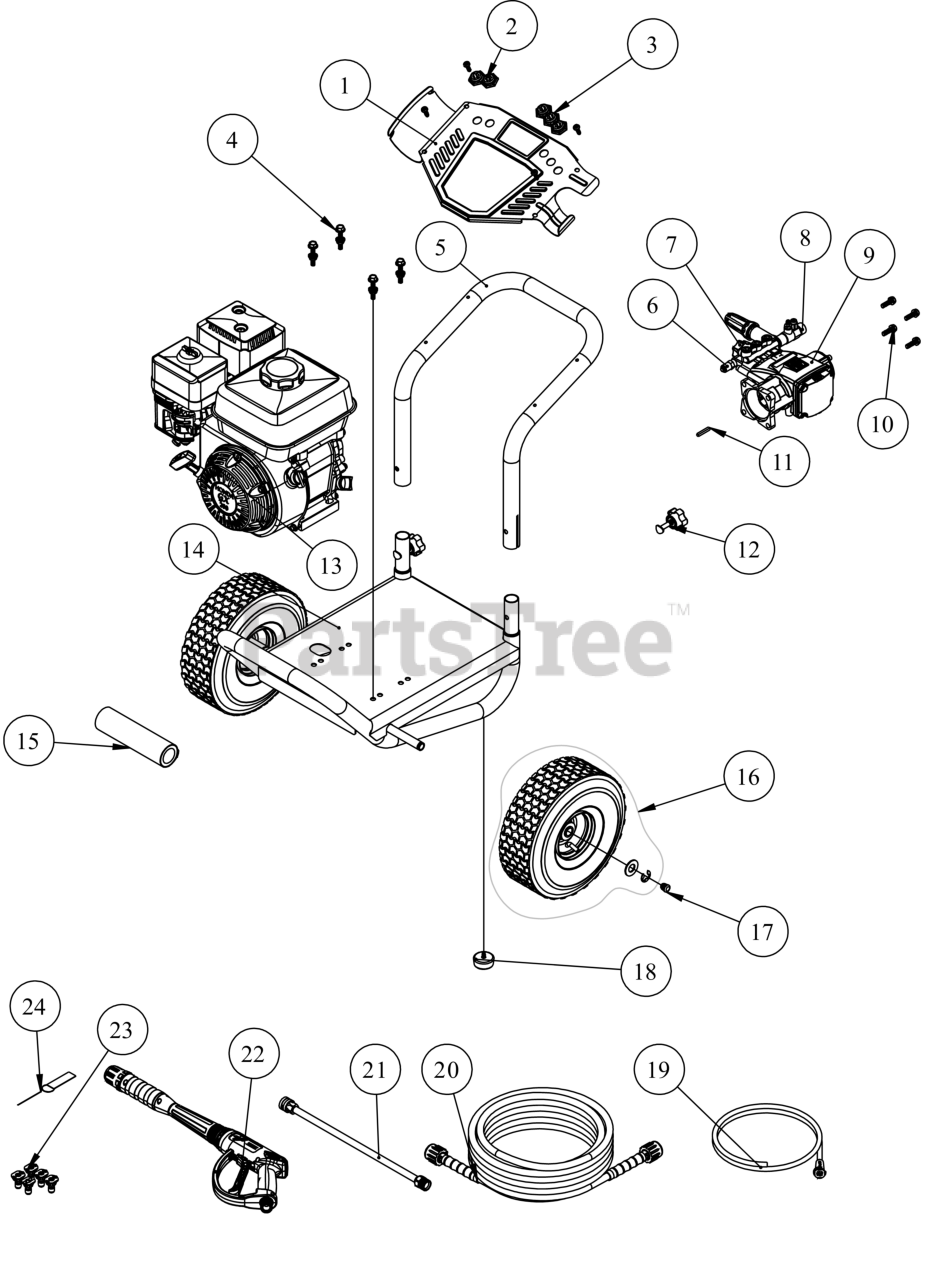

General Assembly Parts Diagram

  • Title
1

Cub Cadet FNA-7113440

DASHBOARD SVC ASSY

$

$

Currently unavailable

2

Cub Cadet FNA-7107067

HOLDER-NOZZLE 2 PC

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet FNA-7107068

HOLDER-NOZZLE 3 PC

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet FNA-7103750

MOUNTING KIT: ENGINE

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet FNA-7110737

HANDLE, CUB YELLOW

$

$

Currently unavailable

6

Cub Cadet FNA-7101359

VALVE-THERMAL RELIEF

$

$

Not available

7

Cub Cadet FNA-7110329

WATER INLET KIT C31

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet FNA-7106264

FITTING KIT-OUTLET

$

$

Not available

9

Cub Cadet FNA-530016

PUMP, C32 SERIES, H-TRI

$

$

Currently unavailable

10

Cub Cadet FNA-7105474

HARDWARE KIT: PUMP MOUNTING

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet FNA-7104174

SHAFT KEY (3/16x3/16x1.25)

$8.49

$

Usually ships in 3-6 days

0

12

Cub Cadet FNA-7107941

KNOB-HANDLE MTG

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet FNA-100465

ENGINE, HONDA RED GX200

Note: (Not Serviced)

$

$

Currently unavailable

14

Cub Cadet FNA-7109092YL2

FRAME, BASE WELDMENT CUB CADET

$

$

Currently unavailable

15

Cub Cadet FNA-7107408

GRIP-HANDLE

$29.99

$

Usually ships in 3-6 days

0

16

Cub Cadet FNA-7108473

10" WHEEL (BEIGE)

$47.99

$

Usually ships in 3-6 days

0

17

Cub Cadet FNA-7111195

CAP, PLASTIC, 5/8 HOLLOW AXLE

$

$

Currently unavailable

18

$

$

Not available

19

Cub Cadet FNA-7102207

HOSE-SOAP W/FILTER

$

$

Not available

20

Cub Cadet FNA-7108160

HOSE, MORFLEX 1/4" x 25' x 3100PSI M22 x M22

$

$

Currently unavailable

21

Cub Cadet FNA-7103550

WAND-SPRAY GUN 16"

$

$

Not available

22

Cub Cadet FNA-7109565

SPRAY GUN (3600PSI M22)

$

$

Not available

23

Cub Cadet FNA-7109338

5 PIECE NOZZLE SET

$

$

Not available

24

Cub Cadet FNA-7102045

TOOL-NOZZLE CLEANING

$8.49

$

Usually ships in 3-6 days

0
