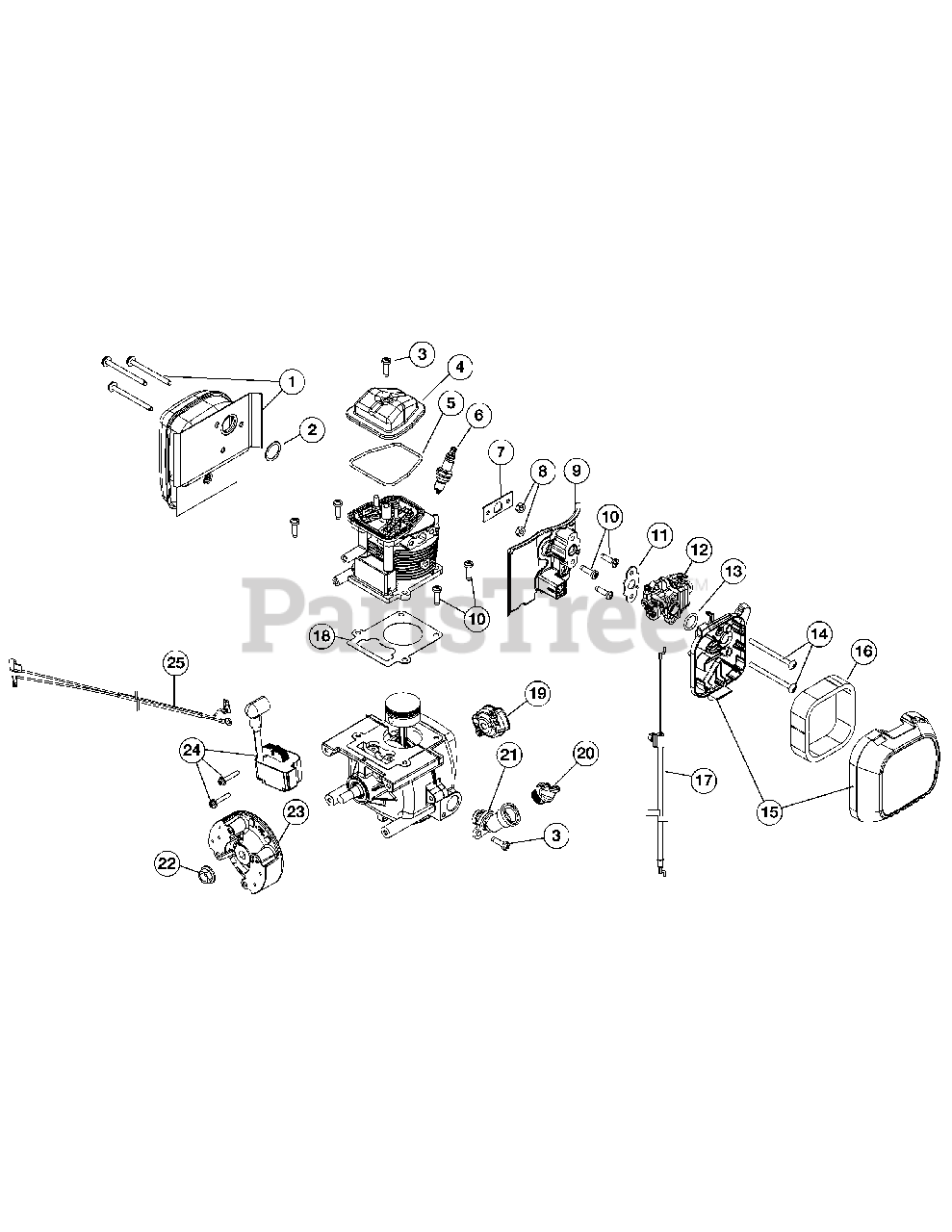

CC 4 BP (41AR4BPG912) - Cub Cadet Backpack Blower (2008) Engine Parts Parts Diagram

Backpack Blower

Engine Parts Parts Diagram

  • Title

1

Cub Cadet 753-05669

Muffler Assembly (includes 2)

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-05670

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05377

Screw
(Superseded to 710-04604)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 753-05671

Rocker Cover

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05672

Rocker Cover O-Ring

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05255

Spark Plug
(Superseded to 794-00082)

$7.99

$

In Stock, Qty 20+

0

7

Cub Cadet 753-05673

Insulator Gasket

$10.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-05248

Nut
(Superseded to 712-04099)

$7.49

$

In Stock, Qty 11

0

9

Cub Cadet 753-05674

Insulator

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

11

Cub Cadet 753-05675

Carburetor Gasket

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-05676

Carburetor
(Superseded to 753-05676A)

$

$

Not available

13

Cub Cadet 791-181751

Carburetor O-Ring

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 753-05253

Screw
(Superseded to 710-04517)

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 753-05711

Air Cleaner Assembly (includes 16)

$36.99

$

In Stock, only 3 left!

0

16

Cub Cadet 753-05677

Air Filter

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 753-05679

Throttle Cable

$

$

Not available

18

Cub Cadet 753-05681

Cylinder Gasket

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05635

Pawl Assembly

$

$

Not available

20

Cub Cadet 753-05400

Oil Plug
(Superseded to 753-05408)

$31.99

$

In Stock, Qty 10

0

21

Cub Cadet 753-05682

Oil Fill Tube (includes 3)

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-05687

Nut
(Superseded to 712-04137)

$7.49

$

In Stock, only 2 left!

0

23

Cub Cadet 753-05688

Flywheel Asssembly

$47.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 753-05243

Module Assembly
(Superseded to 753-05301)

$120.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 753-05690

Lead Wire

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-05694

Short Block Assembly

Note: Not Shown

$204.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-05696

Spark Arrestor
(Superseded to 753-05297)

Note: Not Shown

$28.99

$

Usually ships in 3-6 days

0
