CC 4000 T (61072) - Cub Cadet Pressure Washer (2019) General Assembly Parts Diagram

Pressure Washer

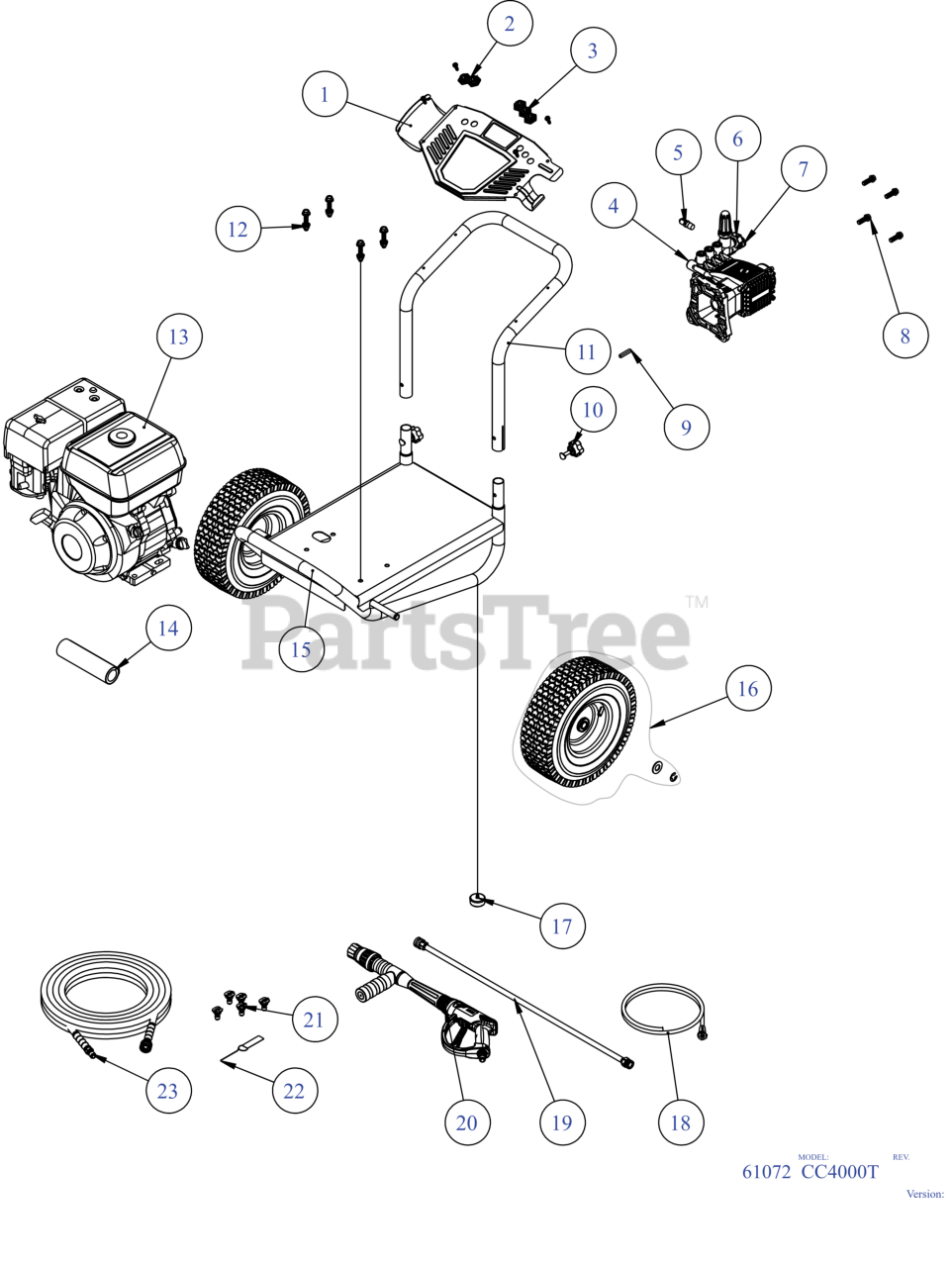

General Assembly Parts Diagram

  • Title

1

Cub Cadet FNA-7113448

DASHBOARD SVC ASSY

$

$

Currently unavailable

2

Cub Cadet FNA-7107067

HOLDER-NOZZLE 2 PC

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet FNA-7107068

HOLDER-NOZZLE 3 PC

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet FNA-530010

PUMP ASSEMBLY
(Superseded to FNA-530010P)

$

$

Not available

5

Cub Cadet FNA-7101359

VALVE-THERMAL RELIEF

$

$

Not available

6

Cub Cadet FNA-7110330

INLET CONNECTION KIT

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet FNA-7110331

QUICK CONNECT OUTLET

$

$

Not available

8

Cub Cadet FNA-7113347

PUMP MOUNTING HARDWARE

$

$

Currently unavailable

9

Cub Cadet FNA-7105453

KEY: SHAFT 1/4" x 1/4" x 1.5"

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet FNA-7107941

KNOB-HANDLE MTG

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet FNA-7109163

TUBE, HANDLE BENT PUNCHED CUB CADET

$

$

Currently unavailable

12

Cub Cadet FNA-7103277

ENGINE MOUNTING KIT

$7.99

$

Usually ships in 3-6 days

0

13

ENGINE, SVC ASSY HONDA GX270 W/LABELS

Note: (Not Serviced)

$

$

Not available

14

Cub Cadet FNA-7107408

GRIP-HANDLE

$29.99

$

Usually ships in 3-6 days

0

15

Cub Cadet FNA-7109162

FRAME, BASE WELDMENT CUB CADET

$

$

Currently unavailable

16

Cub Cadet FNA-7108482

13" WHEEL (BEIGE)

$60.99

$

Usually ships in 3-6 days

0

17

Cub Cadet FNA-7103292

FOOT PAD

$

$

Not available

18

Cub Cadet FNA-7102207

HOSE-SOAP W/FILTER

$

$

Not available

19

Cub Cadet FNA-7103261

WAND-SPRAY GUN 31"

$

$

Not available

20

Cub Cadet FNA-7108168

GUN-SPRAY DIAL-N-WASH
(Superseded to FNA-7108168P)

$

$

Not available

21

Cub Cadet FNA-7106201

NOZZLE SET-5 PIECE

$

$

Not available

22

Cub Cadet FNA-7102045

TOOL-NOZZLE CLEANING

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet FNA-7103642

HOSE-SPRAY GUN 50'

$

$

Not available
