CC 4033 (26A-BPH3710) - Cub Cadet Pressure Washer (2015) Engine-Crankcase Cover Parts Diagram

Pressure Washer

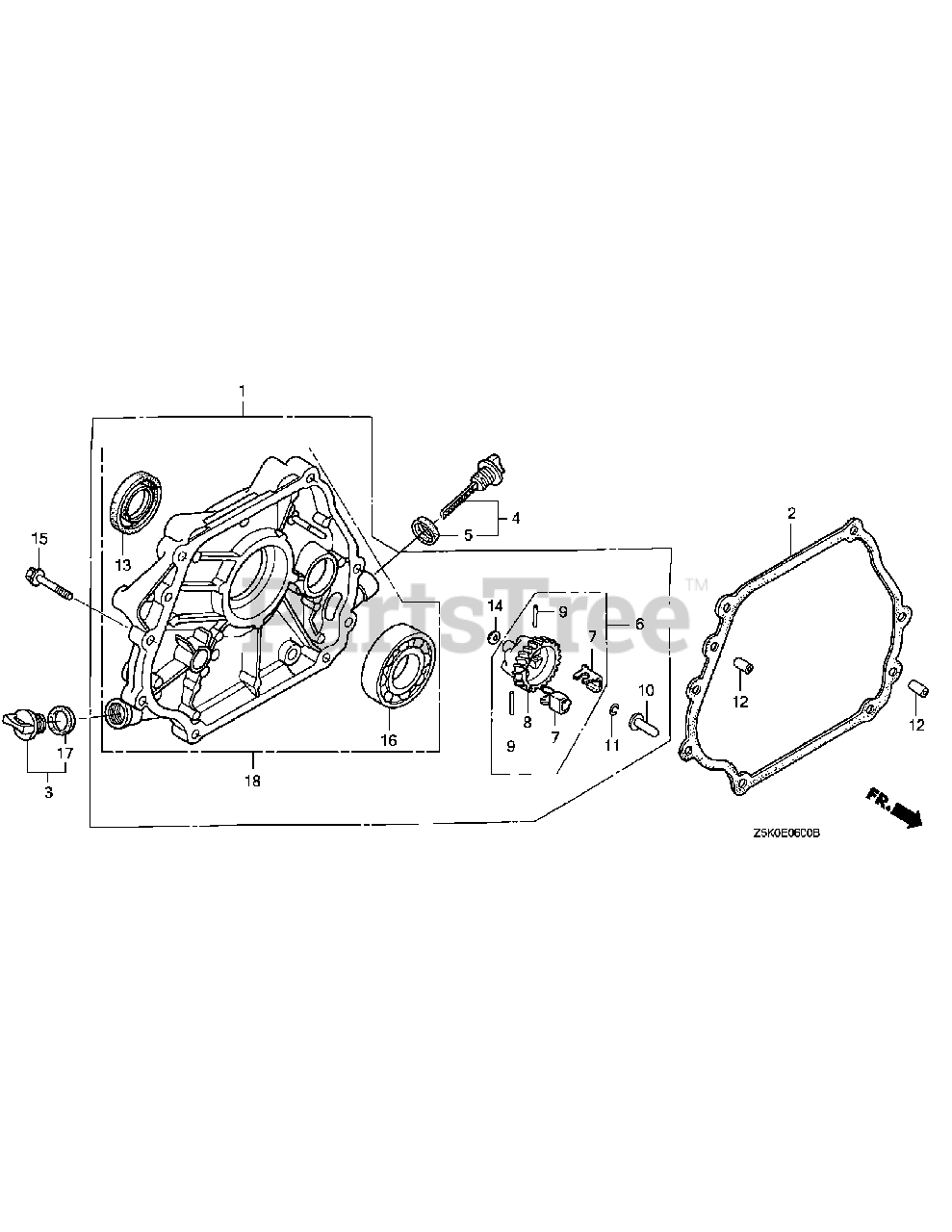

Engine-Crankcase Cover Parts Diagram

  • Title

1

Honda 11300-Z1D-600

Cover Assy., Crankcase

$219.99

$

Usually ships in 3-6 days

0

2

Honda 11381-Z5K-000

Packing, Case Cover

$6.49

$

In Stock, Qty 9

0

3

Honda 15600-Z0T-820

Cap Assy., Oil Filler

$1.49

$

In Stock, Qty 10

0

4

Honda 15600-Z1C-000

Cap Assy., Oil Filler

$7.49

$

In Stock, only 2 left!

0

5

Honda 15625-Z0T-800

Packing, Oil Filler Cap

$3.49

$

In Stock, Qty 5

0

6

Honda 16510-ZE2-000

Governor Assy.

$25.99

$

Usually ships in 3-6 days

0

7

Honda 16511-ZE2-000

Weight, Governor

$3.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE2-000

Holder, Governor Weight

$17.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

Pin, Governor Weight

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

Slider, Governor

$3.49

$

In Stock, Qty 6

0

11

Honda 90602-ZE1-000

Clip, Governor Holder

$1.99

$

In Stock, Qty 11

0

12

Honda 90701-HC4-000

Dowel Pin, 8X12

$3.49

$

Usually ships in 3-6 days

0

13

Honda 91201-Z1D-003

Oil Seal, 30X46X8

$11.99

$

In Stock, only 2 left!

0

14

Honda 94101-06800

Washer, Plain, 6Mm

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-08035-00

Bolt, Flange, 8X35

$2.99

$

In Stock, only 3 left!

0

16

Honda 96100-62060-00

Bearing, Radial Ball, 6206

$28.99

$

Usually ships in 3-6 days

0

17

Honda 15625-Z0T-800

Packing, Oil Filler Cap

$3.49

$

In Stock, Qty 5

0

18

Cub Cadet n/a

Cover Assy., Crankcase

Note: Not used on this spec

$

$

Currently unavailable
