CC 4033 (26A-BPH3710) - Cub Cadet Pressure Washer (2015) Engine-Flywheel Parts Diagram

Pressure Washer

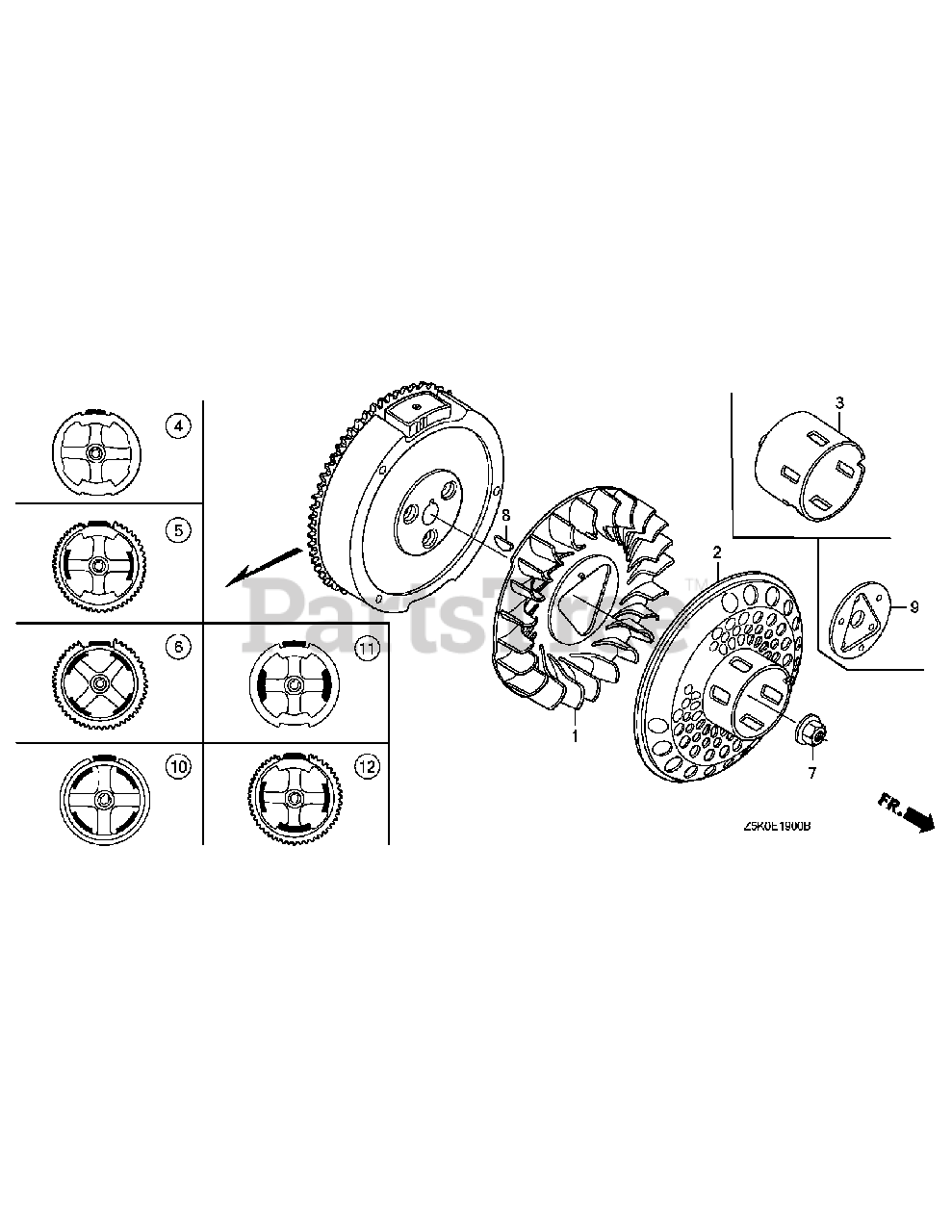

Engine-Flywheel Parts Diagram

  • Title

1

Honda 19511-ZE2-000

Fan, Cooling

$39.99

$

In Stock, only 1 left!

0

2

Cub Cadet n/a

Pulley Comp., Starter (Screen Grid)

Note: Not used on this spec

$

$

Currently unavailable

3

Honda 28451-ZE2-W01

Pulley, Starter

$32.99

$

In Stock, only 1 left!

0

4

Honda 31110-Z5K-000

Flywheel Comp.

$285.99

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

Flywheel Comp.(Starter Motor)

Note: Not used on this spec

$

$

Currently unavailable

6

Cub Cadet n/a

Flywheel Comp.(4Pole)

Note: Not used on this spec

$

$

Currently unavailable

7

Honda 90201-ZE3-790

Nut, Special, 16Mm

$12.99

$

In Stock, only 2 left!

0

8

Honda 90741-ZE2-000

Key, Special Woodruff, 25X18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet n/a

Plate, Cooling Fan Setting

Note: Not used on this spec

$

$

Currently unavailable

10

Cub Cadet n/a

Flywheel Comp.(18A)

Note: Not used on this spec

$

$

Currently unavailable

11

Cub Cadet n/a

Flywheel Comp.(Lamp)

Note: Not used on this spec

$

$

Currently unavailable

12

Cub Cadet n/a

Flywheel Comp.(Sel)

Note: Not used on this spec

$

$

Currently unavailable
