CC 4033 (26A-BPH3710) - Cub Cadet Pressure Washer (2015) Engine-Piston Parts Diagram

Pressure Washer

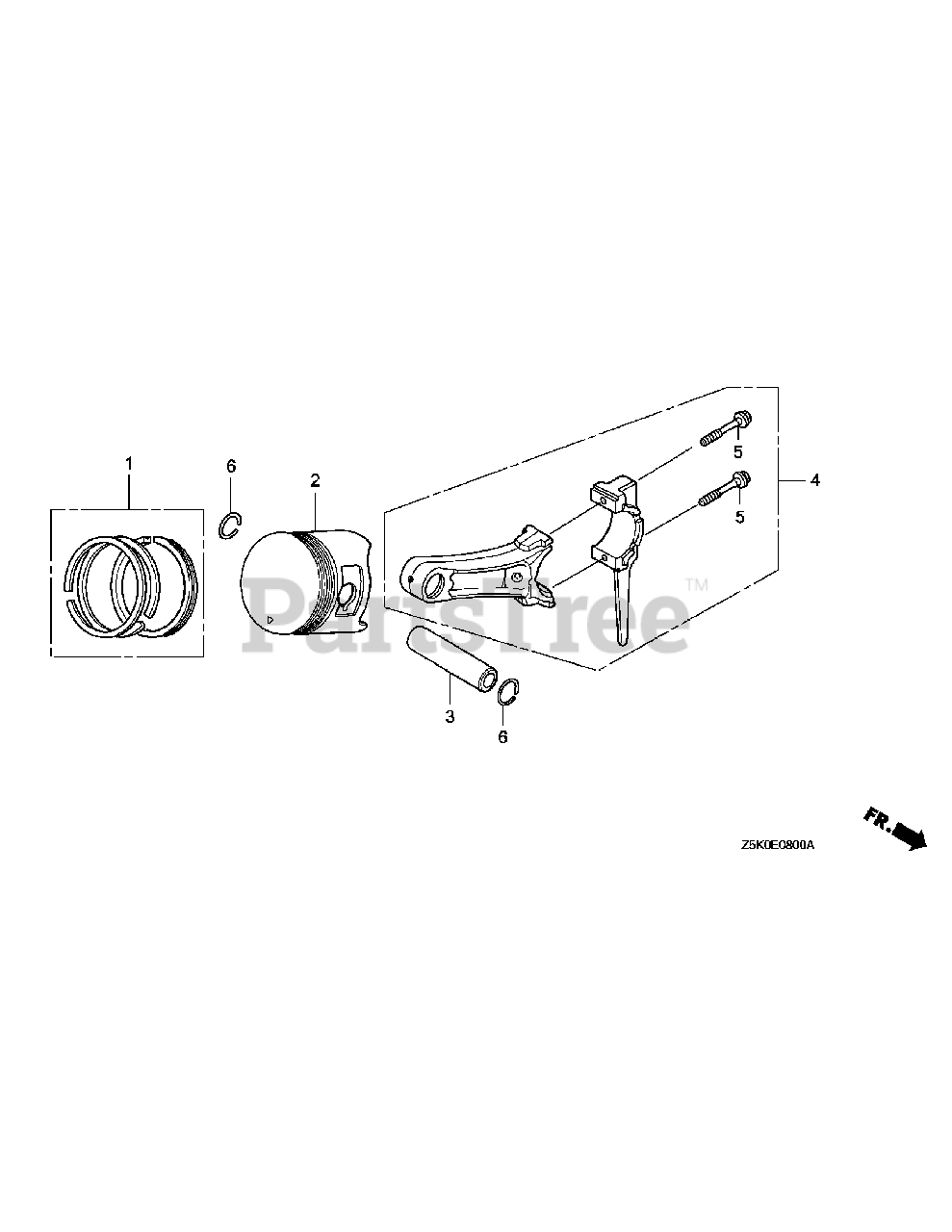

Engine-Piston Parts Diagram

  • Title

1

Honda 13010-Z5K-004

Ring Set, Piston(Std.) (Teikoku)

$8.49

$

Usually ships in 3-6 days

0

1

Honda 13011-Z5K-004

Ring Set, Piston(0.25) (Teikoku)

$

$

Not available

1

Honda 13012-Z5K-004

Ring Set, Piston(0.50) (Teikoku)

$

$

Not available

1

Honda 13013-Z5K-004

Ring Set, Piston(0.75) (Teikoku)

$

$

Not available

2

Honda 13101-Z5K-000

Piston(Std.)
(Superseded to 13101-Z1D-900)

$15.99

$

Usually ships in 3-6 days

0

2

Honda 13102-Z5K-000

Piston(0.25)

$

$

Not available

2

Honda 13103-Z5K-000

Piston(0.50)

$

$

Not available

2

Honda 13104-Z5K-000

Piston(0.75)

$25.99

$

In Stock, only 1 left!

0

3

Honda 13111-Z5K-000

Pin, Piston

$4.49

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1D-000

Rod Assy., Connecting(Std.)
(Superseded to 13200-Z1D-900)

$28.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1D-305

Rod Assy., Connecting (0.25 Under Size)

$

$

Not available

5

Honda 90001-ZE8-000

Bolt, Connecting Rod

$4.49

$

In Stock, only 4 left!

0

6

Honda 90551-ZE1-000

Clip, Piston Pin, 18Mm

$1.49

$

In Stock, Qty 20+

0
