CC 4065 SS (41AD465C910) - Cub Cadet String Trimmer (2006) Boom and Trimmer Parts Parts Diagram

String Trimmer

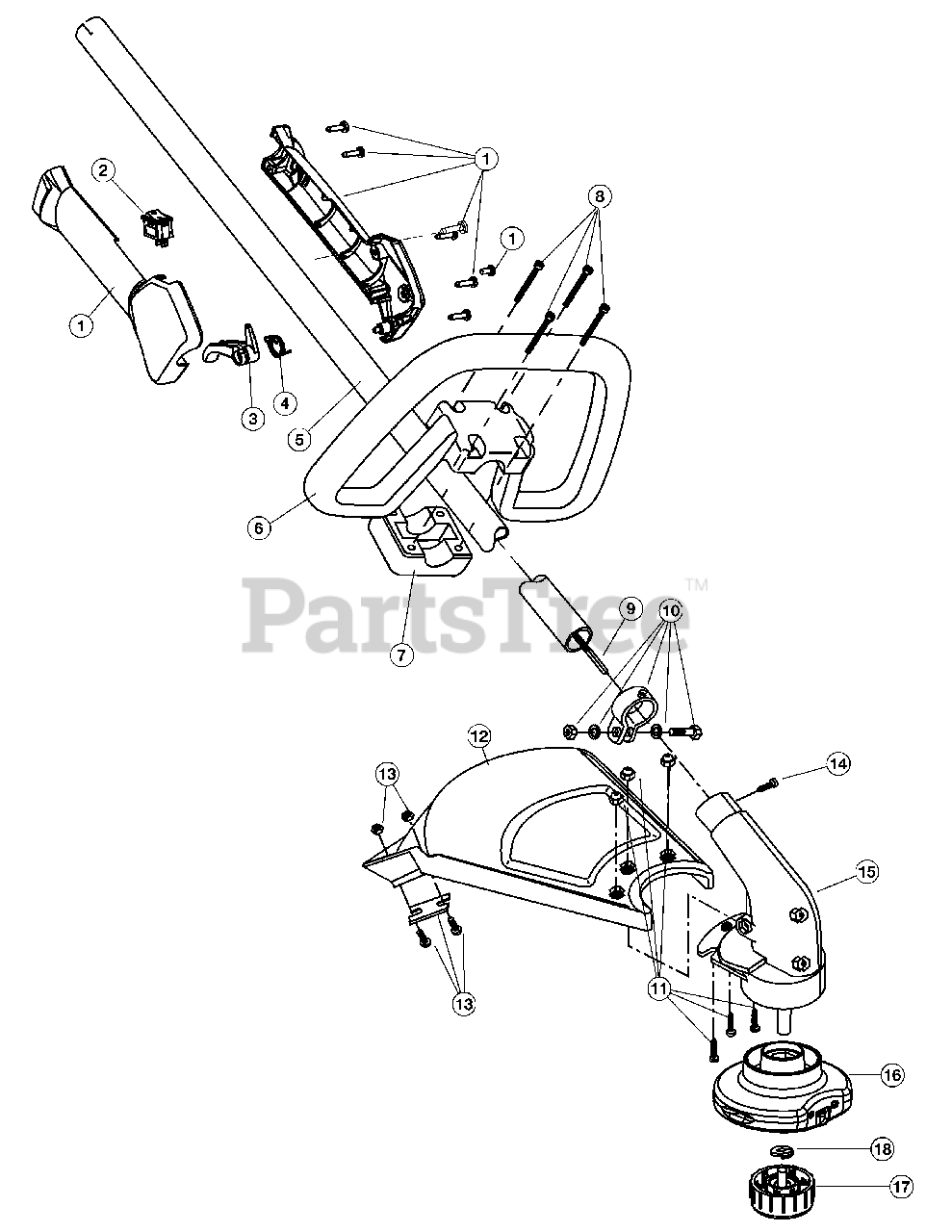

Boom and Trimmer Parts Parts Diagram

  • Title

1

Cub Cadet 791-00057

Throttle Housing Assembly (includes 2-4)

$

$

Not available

2

Cub Cadet 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet 791-00058

Throttle Trigger
(Superseded to 753-06754)

$6.99

$

In Stock, only 1 left!

0

4

Cub Cadet 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

5

Cub Cadet 753-05166

Drive Shaft Housing Assembly (includes 9)

$

$

Not available

6

Cub Cadet 791-180869

D-Handle (includes 7&8)

$

$

Not available

7

Cub Cadet 791-182168

D-Handle Base

$

$

Not available

8

Cub Cadet 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-05167

Flexible Drive Shaft

$

$

Not available

10

Cub Cadet 791-153597

Lower Clamp Assembly (includes 14)

$15.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-180547

Guard Mounting Screw Assembly

$

$

Not available

12

Cub Cadet 791-180548

Guard Assembly (includes 13)

$

$

Not available

13

Cub Cadet 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

14

Cub Cadet 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

15

Cub Cadet 753-05168

Gearbox Assembly

$

$

Not available

16

Cub Cadet 753-05165

Fixed HD Line Assembly
(Superseded to 753-08193)

$11.99

$

In Stock, Qty 20+

0

17

Cub Cadet 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet 791-182413

Lock Washer
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 753-05164

Replacement Line (Optional Accessory- not shown)
(Superseded to 796-00027)

$28.99

$

Usually ships in 3-6 days

0
