CC 4175 (41BDC47C712) - Cub Cadet String Trimmer (2008) Boom & Trimmer Parts Diagram

String Trimmer

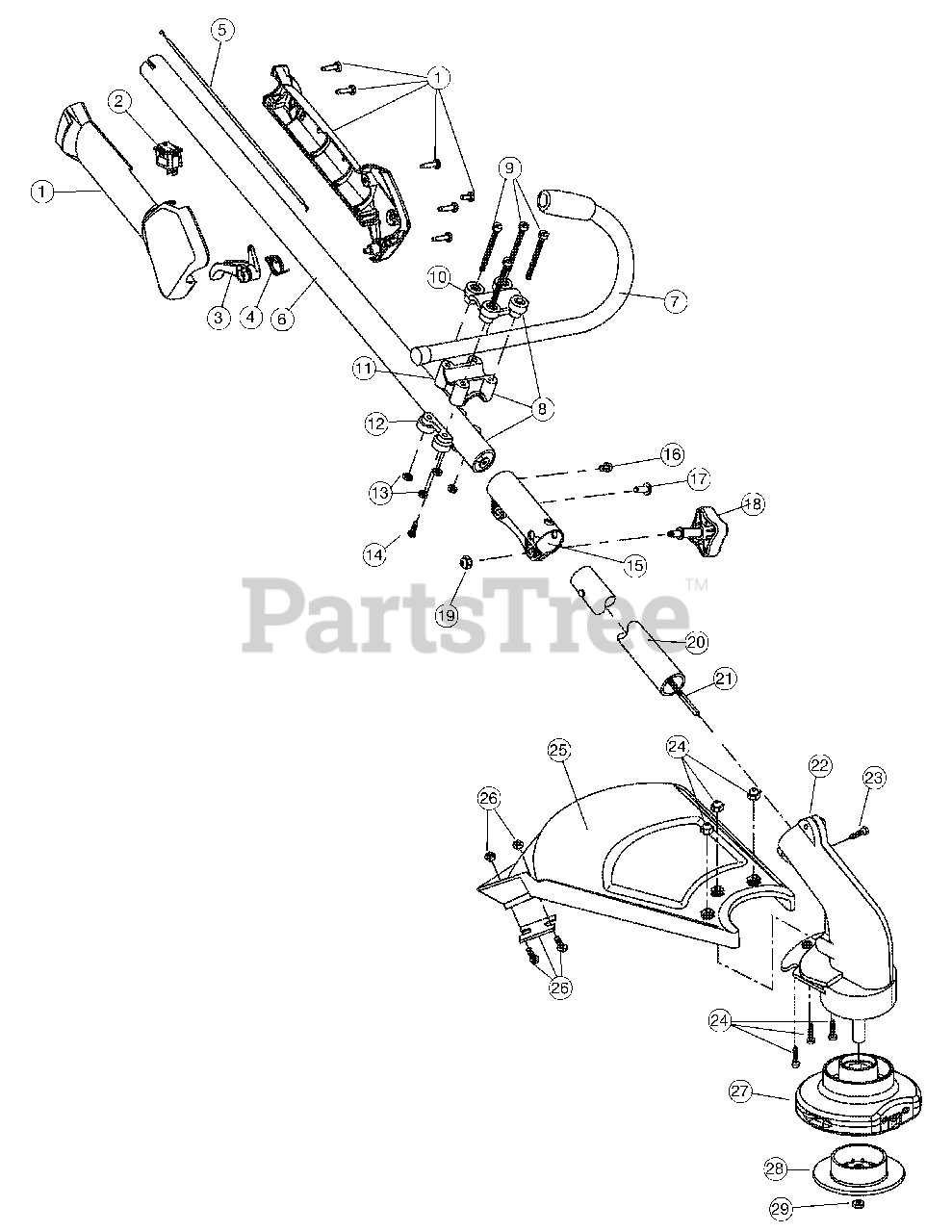

Boom & Trimmer Parts Diagram

  • Title

1

Cub Cadet 753-04234

Throttle Housing Assembly (includes 2-4)

$19.99

$

In Stock, Qty 20+

0

2

Cub Cadet 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

Cub Cadet 753-05266

Throttle Cable

$19.99

$

In Stock, Qty 20+

0

6

Cub Cadet 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

7

Cub Cadet 791-180687

J-Handle Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-683295

Handle Bracket Assembly (includes 9-14)

$42.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181811

Screw

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

15

Cub Cadet 791-160511

Split Boom Coupler (includes 16-19)
(Superseded to 753-1190)

$21.99

$

In Stock, only 4 left!

0

16

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

17

Cub Cadet 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 791-181618B

Adjustment Knob (Includes 19)
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

20

Cub Cadet 753-04504

Lower Drive Shaft Housing Assembly

$64.99

$

In Stock, only 1 left!

0

21

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 13

0

22

Cub Cadet 753-05168

Gearbox Assembly

$

$

Not available

23

Cub Cadet 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

24

Cub Cadet 791-180547

Shield Mounting Hardware

$

$

Not available

25

Cub Cadet 753-1213

Shield Assembly (includes 26)
(Superseded to 1A6902)

$

$

Not available

26

Cub Cadet 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-05470

Fixed Line Head Assembly (includes 28 & 29)
(Superseded to 753-05495)

$

$

Not available

28

Cub Cadet 753-05428

Glide Cap
(Superseded to 731-05714)

$16.99

$

In Stock, Qty 10

0

29

Cub Cadet 753-05429

Locknut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

Cub Cadet 753-05493

Tube of Line
(Superseded to 796-00029)

Note: Not Shown

$17.99

$

Usually ships in 3-6 days

0
