CC 46 ES (12AE46K8209) - Cub Cadet Walk-Behind Mower (2012) Kohler XT173-3316 Fuel System Parts Diagram

Walk-Behind Mower

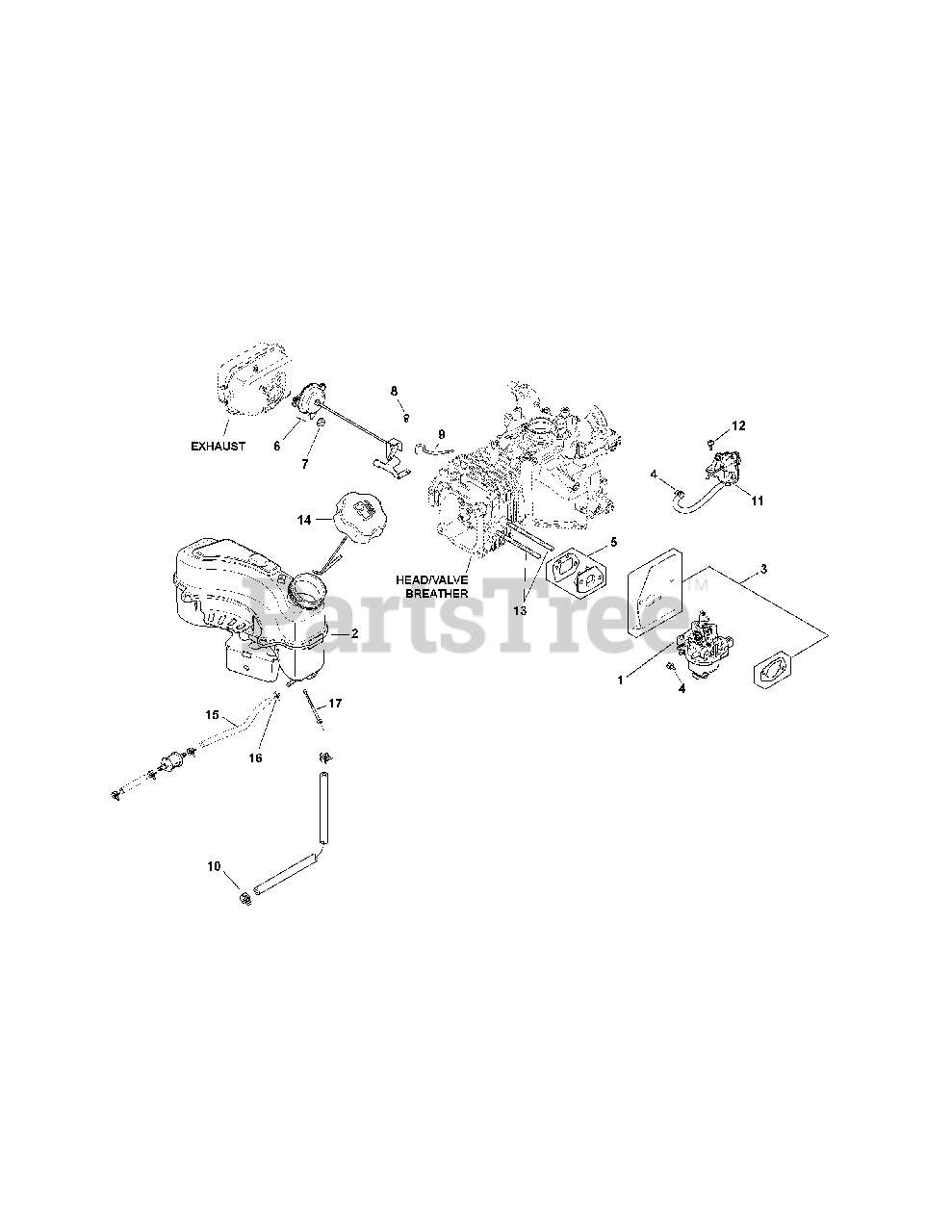

Kohler XT173-3316 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-14-853-41-S

Carburetor, 13MM Auto Choke
(Superseded to KH-14-853-57-S)

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-14-065-29-S

Fuel Tank Assembly
(Superseded to KH-14-065-41-S)

$136.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-14-041-24-S

Kit, Gasket
(Superseded to KH-14-041-31-S)

$16.99

$

In Stock, Qty 6

0

4

Cub Cadet KH-14-237-05-S

Hose Clamp

$2.99

$

In Stock, Qty 5

0

5

Cub Cadet KH-14-112-13-S

Carburetor Spacer Kit

$19.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-14-187-01-S

Arm, Assembly

$34.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-14-100-08-S

Nut, Hex Flange, M6
(Superseded to KH-14-100-16-S)

$2.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-25-086-277-S

Screw, M4 Thread Forming

$

$

Not available

9

Cub Cadet KH-14-079-17-S

Linkage, Auto Choke
(Superseded to KH-14-079-26-S)

$5.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-14-237-07-S

Hose Clamp

$

$

Not available

11

Cub Cadet KH-14-268-04-S

Diaphragm, Assembly

$23.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-25-086-275-S

Screw, Shoulder

$

$

Not available

13

Cub Cadet KH-24-072-06-S

Stud, M6 x 1.0 x 93

$18.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-14-227-15-S

Fuel Cap Assembly
(Superseded to KH-14-227-26-S)

$36.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-111-69-S

Fuel Hose, Low-Permeation

$10.99

$

In Stock, only 4 left!

0

16

Cub Cadet KH-14-237-01-S

Hose Clamp

$2.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-14-050-14-S

Filter, Fuel In-Nipple

$7.99

$

In Stock, Qty 20+

0
