CC 469 (12AV469Q709) - Cub Cadet Walk-Behind Mower (2008) Piston & Connecting Rod Parts Diagram

Walk-Behind Mower

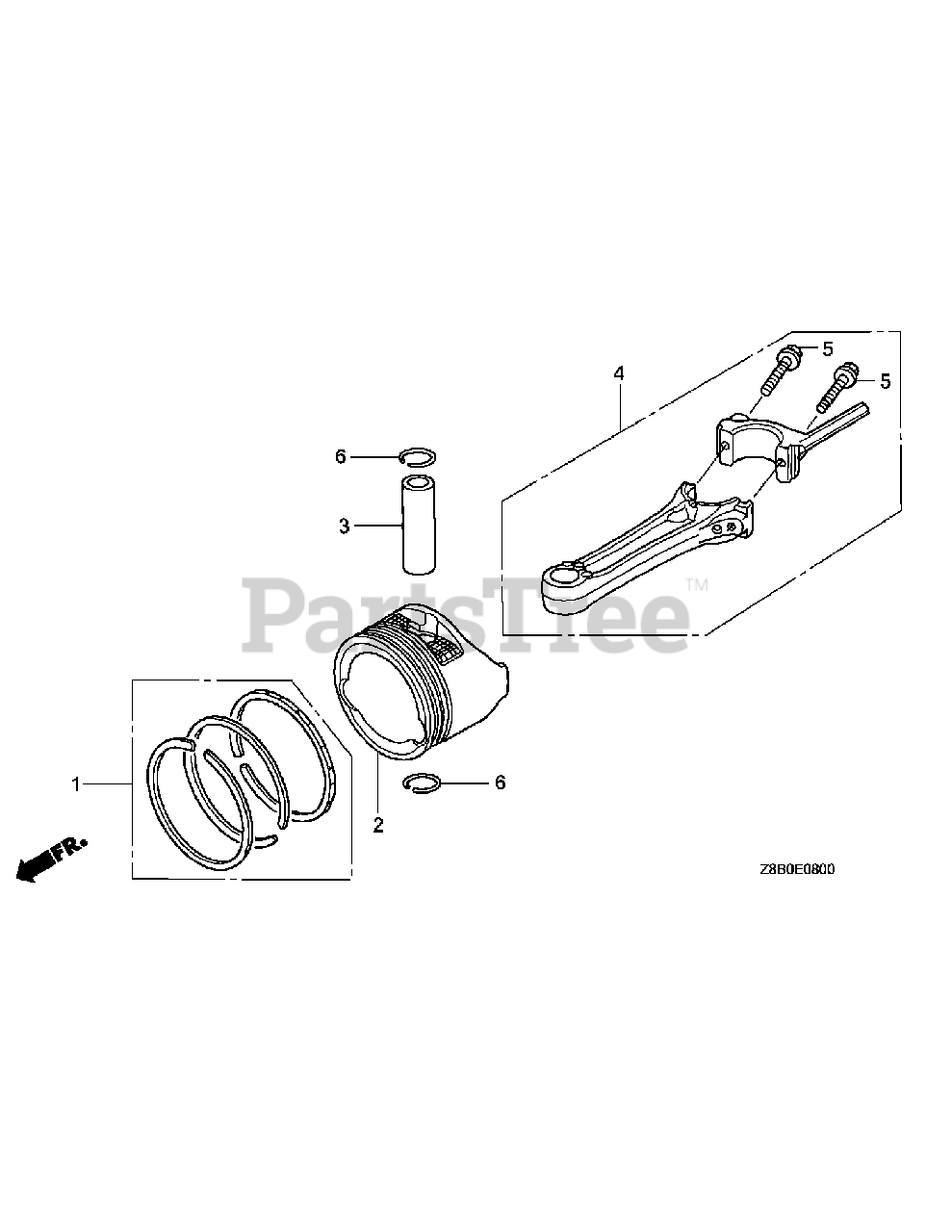

Piston & Connecting Rod Parts Diagram

  • Title

1

Honda 13010-Z0L-014

RING SET, PISTON (STD.) (TEIKOKU)

$30.99

$

In Stock, only 1 left!

0

2

Honda 13101-Z2A-010

PISTON
(Superseded to 13101-Z8B-820)

$30.99

$

In Stock, only 4 left!

0

3

Honda 13111-ZE0-000

PIN, PISTON

$7.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0J-000

ROD ASSY., CONNECTING
(Superseded to 13200-ZDS-000)

$19.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE0-000

CLIP, PISTON PIN, 13MM

$1.99

$

In Stock, only 3 left!

0
