CC 500 (11A-18M9010) - Cub Cadet Walk-Behind Mower (2010) Engine Assembly 5P65M0B Parts Diagram

Walk-Behind Mower

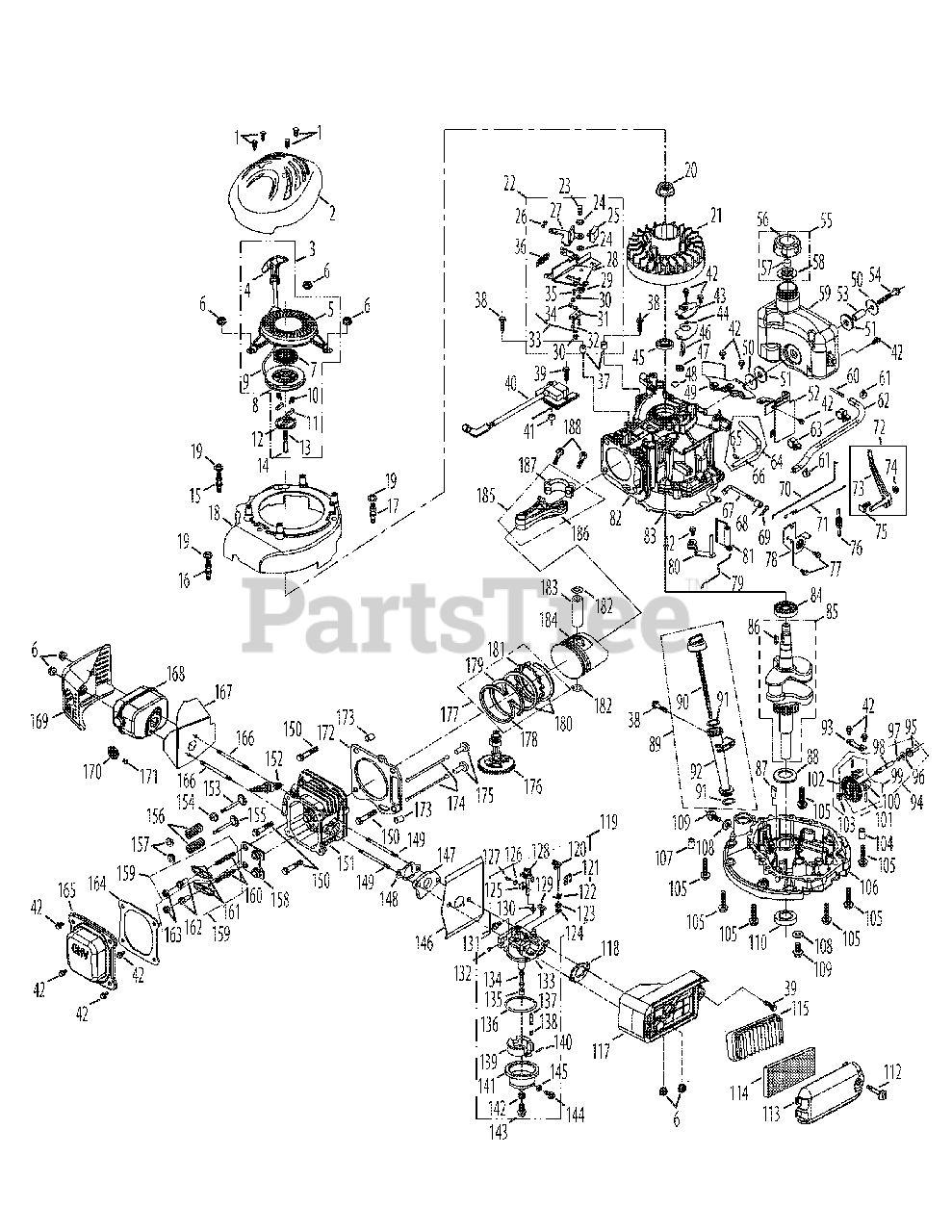

Engine Assembly 5P65M0B Parts Diagram

  • Title

1

Cub Cadet 710-04744

Self-Tap Bolt, Hilo #12-16 x 1.00"

$4.99

$

In Stock, Qty 11

0

2

Cub Cadet N/A

Engine Shroud

Note: See Unit for Specific Shroud

$

$

Currently unavailable

3

Cub Cadet 951-11720

Recoil Starter Assembly
(Superseded to 951-12683)

Note: (Incl Ref No. 4-14)

$85.99

$

In Stock, Qty 5

0

4

Cub Cadet N/A

Starter Handle

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

5

Cub Cadet N/A

Starter Housing

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

6

Cub Cadet 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

7

Cub Cadet 951-11721

Recoil Spring and Pulley Assembly

$43.99

$

In Stock, only 2 left!

0

8

Cub Cadet N/A

Starter Pulley

Note: Furnish 951-11721, Recoil Spring & Pulley Assembly

$

$

Currently unavailable

9

Cub Cadet N/A

Starter Rope

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

10

Cub Cadet N/A

Starter Pawl Return Spring

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

11

Cub Cadet N/A

Starter Pawl

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

12

Cub Cadet N/A

Pressure Plate

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

13

Cub Cadet N/A

Pressure Plate Spring

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

14

Cub Cadet N/A

Pressure Plate Bolt

Note: Furnish 951-11720, Recoil Starter Assembly

$

$

Currently unavailable

15

Cub Cadet 751-11722

Starter/Shroud Stud Black/M6 x 75

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-11723

Starter/Shroud Stud Front/M6 x 75.3

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-11724

Starter/Shroud Stud White/M6 x 73

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-10875

Inner Shroud

$42.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05320

Engine Shroud Spacer

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-04221

Flywheel Nut M14
(Superseded to 712-04287)

$6.49

$

In Stock, only 1 left!

0

21

Cub Cadet 951-11043

Flywheel

$136.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-10320A

Brake Assembly

Note: (Incl Ref No. 23-36)

$37.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-05384

Brake Spacer

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04980

Bolt M6×35

$3.99

$

In Stock, only 1 left!

0

39

Cub Cadet 710-04969

Bolt M6×30

$3.99

$

In Stock, only 4 left!

0

40

Cub Cadet 951-10367

Ignition Coil Assembly

$95.99

$

In Stock, only 2 left!

0

41

Cub Cadet 750-05383

Ignition Coil Spacer

$

$

Not available

42

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

In Stock, only 2 left!

0

42

Cub Cadet 710-04916

Bolt M6×14

Note: Furnish 951-11789, Shortblock

$4.49

$

In Stock, only 2 left!

0

43

Cub Cadet 951-11612

Breather Cover Plate
(Superseded to 951-11728)

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11612

Breather Cover Plate
(Superseded to 951-11728)

Note: Furnish 951-11789, Shortblock

$6.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

Note: Furnish 951-11787, Gasket Kit Complete

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

Note: Furnish 951-11789, Shortblock

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

Note: Furnish 951-11788, Gasket Kit External

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-11596

Upper Crankshaft Seal

$5.99

$

In Stock, only 1 left!

0

45

Cub Cadet 951-11596

Upper Crankshaft Seal

Note: Furnish 951-11787, Gasket Kit Complete

$5.99

$

In Stock, only 1 left!

0

45

Cub Cadet 951-11596

Upper Crankshaft Seal

Note: Furnish 951-11789, Shortblock

$5.99

$

In Stock, only 1 left!

0

46

Cub Cadet 951-11730

Mesh Screen

$5.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11730

Mesh Screen

Note: Furnish 951-11789, Shortblock

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 732-04718

Breather Valve Spring

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 732-04718

Breather Valve Spring

Note: Furnish 951-11789, Shortblock

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-11614

Breather Valve

Note: Furnish 951-11789, Shortblock

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-11542

Fuel Tank Bottom Bracket

$9.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 736-04456

Fuel Tank Washer

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-10335

Rubber Bushing

$5.49

$

In Stock, only 1 left!

0

52

Cub Cadet 951-11748

Tank/Label Bracket

$6.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 750-05322

Fuel Tank Bushing

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-04922

Tank Bolt M8×50

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-10300

Fuel Cap Assembly

$10.99

$

In Stock, Qty 10

0

56

Cub Cadet N/A

Fuel Cap

Note: Furnish 951-10300, Fuel Cap Assembly

$

$

Currently unavailable

57

Cub Cadet N/A

Foam Insert

Note: Furnish 951-10300, Fuel Cap Assembly

$

$

Currently unavailable

58

Cub Cadet N/A

Vent Gasket

Note: Furnish 951-10300, Fuel Cap Assembly

$

$

Currently unavailable

59

Cub Cadet 951-10337

Fuel Tank Assembly

$60.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

60

Cub Cadet 951-10358

Fuel Filter
(Superseded to 951-12296A)

Note: Furnish 951-10363, Fuel Line Kit

$9.49

$

In Stock, Qty 20+

0

61

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

61

Cub Cadet 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

Note: Furnish 951-10363, Fuel Line Kit

$3.99

$

In Stock, only 3 left!

0

62

Cub Cadet N/A

Fuel Hose

Note: Furnish 951-10363, Fuel Line Kit

$

$

Currently unavailable

63

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$2.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11520

Breather Hose Assembly

$5.49

$

Usually ships in 3-6 days

0

65

Cub Cadet N/A

Breather Hose Clamp

Note: Furnish 951-11520, Breather Hose Assembly

$

$

Currently unavailable

66

Cub Cadet N/A

Breather Hose

$

$

Currently unavailable

67

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

Note: Furnish 951-11789, Shortblock

$9.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

68

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

Note: Furnish 951-11787, Gasket Kit Complete

$4.49

$

In Stock, only 1 left!

0

68

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902)

Note: Furnish 951-11789, Shortblock

$4.49

$

In Stock, only 1 left!

0

69

Cub Cadet 714-04074

Governor Cotter Pin
(Superseded to 714-04078)

$3.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 714-04074

Governor Cotter Pin
(Superseded to 714-04078)

Note: Furnish 951-11789, Shortblock

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11521

Throttle Linkage Rod

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11522

Throttle Linkage Spring

$5.49

$

In Stock, Qty 5

0

72

Cub Cadet N/A

Gover Arm Assembly

Note: Order Components

$

$

Currently unavailable

73

Cub Cadet 951-11523

Governor Arm

$8.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 712-04212

Governor Arm Nut M6
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

75

Cub Cadet 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-10293

Governor Spring

$

$

Not available

77

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

78

Cub Cadet 951-11544

Throttle / Governor Bracket

$6.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 951-11524

Choke Linkage Rod

$

$

Not available

80

Cub Cadet 951-11792

Air Vane Bracket

$7.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-11529

Air Vane
(Superseded to 951-11529A)

$6.99

$

In Stock, only 1 left!

0

82

Cub Cadet N/A

Crankcase

Note: Furnish 951-11789, Shortblock

$

$

Currently unavailable

83

Cub Cadet 951-11732

Crankcase Cover Gasket

$12.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11732

Crankcase Cover Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$12.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11732

Crankcase Cover Gasket

Note: Furnish 951-11789, Shortblock

$12.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11369

Main Bearing

$32.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-11369

Main Bearing

Note: Furnish 951-11789, Shortblock

$32.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-11591

Crankshaft Assembly

$218.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-11591

Crankshaft Assembly

Note: Furnish 951-11789, Shortblock

$218.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

86

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

Note: Furnish 951-11789, Shortblock

$2.49

$

In Stock, Qty 11

0

87

Cub Cadet 951-11733

Oil Return Seal

$4.99

$

In Stock, only 1 left!

0

87

Cub Cadet 951-11733

Oil Return Seal

Note: Furnish 951-11789, Shortblock

$4.99

$

In Stock, only 1 left!

0

88

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 736-04491

Crankshaft Thrust Washer

Note: Furnish 951-11789, Shortblock

$4.49

$

Usually ships in 3-6 days

0

89

Cub Cadet N/A

Dipstick Assembly Complete

Note: Order Components

$

$

Currently unavailable

90

Cub Cadet N/A

Dipstick

Note: Furnish 951-11795. Dipstick Assembly

$

$

Currently unavailable

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

$3.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

Note: Furnish 951-11765, Oil Filler Tube Assembly

$3.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

Note: Furnish 951-11795. Dipstick Assembly

$3.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

Note: Furnish 951-11787, Gasket Kit Complete

$3.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

Note: Furnish 951-11789, Shortblock

$3.99

$

In Stock, only 1 left!

0

91

Cub Cadet 951-11547

Dipstick and Oil Fill Tube O-Ring

Note: Furnish 951-11788, Gasket Kit External

$3.99

$

In Stock, only 1 left!

0

92

Cub Cadet N/A

Tube

Note: Furnish 951-11765, Oil Filler Tube Assembly

$

$

Currently unavailable

93

Cub Cadet 951-11609

Governor Gear Mounting Plate

$4.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-11609

Governor Gear Mounting Plate

Note: Furnish 951-11789, Shortblock

$4.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-11549

Governor Gear/Shaft Assembly

$11.99

$

In Stock, only 1 left!

0

94

Cub Cadet 951-11549

Governor Gear/Shaft Assembly

Note: Furnish 951-11789, Shortblock

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet N/A

Governor Slide Cap

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

96

Cub Cadet N/A

Governor Slide Cap Washer

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

97

Cub Cadet N/A

Governor Ring

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

98

Cub Cadet N/A

Governor Gear Shaft

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

99

Cub Cadet N/A

Governor Gear Assembly

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

100

Cub Cadet N/A

Governor Fly Weight

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

101

Cub Cadet N/A

Governor Fly Weight Pin

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

102

Cub Cadet N/A

Governor Gear

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

103

Cub Cadet N/A

Governor Gear Washer

Note: Furnish 951-11549, Governor Gear/Shaft Assembly

$

$

Currently unavailable

104

Cub Cadet 715-04092

Crankcase Cover Dowel 7×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

Note: Furnish 951-11789, Shortblock

$3.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 710-04920

Coil/Sump Bolt M6x28
(Superseded to 710-04931)

$6.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 710-04920

Coil/Sump Bolt M6x28
(Superseded to 710-04931)

Note: Furnish 951-11789, Shortblock

$6.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-11793

Crankcase Cover

$

$

Not available

106

Cub Cadet 951-11793

Crankcase Cover

Note: Furnish 951-11789, Shortblock

$

$

Not available

107

Cub Cadet 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

Note: Furnish 951-11789, Shortblock

$3.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

108

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-10370, Oil Drain Plug & Washer Ass'y

$6.49

$

In Stock, Qty 6

0

108

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11787, Gasket Kit Complete

$6.49

$

In Stock, Qty 6

0

108

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11789, Shortblock

$6.49

$

In Stock, Qty 6

0

108

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

Note: Furnish 951-11788, Gasket Kit External

$6.49

$

In Stock, Qty 6

0

109

Cub Cadet 710-04906

Oil Drain Plug

$6.49

$

In Stock, Qty 6

0

109

Cub Cadet 710-04906

Oil Drain Plug

Note: Furnish 951-10370, Oil Drain Plug & Washer Ass'y

$6.49

$

In Stock, Qty 6

0

109

Cub Cadet 710-04906

Oil Drain Plug

Note: Furnish 951-11789, Shortblock

$6.49

$

In Stock, Qty 6

0

110

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$9.99

$

In Stock, only 4 left!

0

110

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

Note: Furnish 951-11787, Gasket Kit Complete

$9.99

$

In Stock, only 4 left!

0

110

Cub Cadet 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

Note: Furnish 951-11789, Shortblock

$9.99

$

In Stock, only 4 left!

0

112

Cub Cadet 951-10297

Air Filter Cover Thumb Screw

$5.49

$

In Stock, Qty 19

0

113

Cub Cadet N/A

Outer Air Cleaner Cover

Note: Furnish 951-10876, Air Cleaner Housing Ass'y

$

$

Currently unavailable

114

Cub Cadet N/A

Foam Filter Element

Note: Furnish 951-10298, Air Cleaner Kit

$

$

Currently unavailable

115

Cub Cadet N/A

Paper Filter Element

Note: Furnish 951-10298, Air Cleaner Kit

$

$

Currently unavailable

117

Cub Cadet N/A

Inner Air Cleaner Housing

Note: Furnish 951-10876, Air Cleaner Housing Ass'y

$

$

Currently unavailable

116

Cub Cadet N/A

Breather Channel Cover

$

$

Currently unavailable

118

Cub Cadet 951-11257

Carburetor Gasket Plate
(Superseded to 951-11525)

$4.99

$

In Stock, Qty 11

0

118

Cub Cadet 951-11257

Carburetor Gasket Plate
(Superseded to 951-11525)

Note: Furnish 951-11789, Shortblock

$4.99

$

In Stock, Qty 11

0

119

Cub Cadet 951-10873

Carburetor Assembly

Note: (Incl Ref No. 120-145)

$83.99

$

In Stock, only 1 left!

0

120

Cub Cadet N/A

Choke Shaft

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

121

Cub Cadet N/A

Choke Plate

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

122

Cub Cadet N/A

Choke Return Spring

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

123

Cub Cadet N/A

Choke Shaft Washer

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

124

Cub Cadet N/A

Fiber O-Ring

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

125

Cub Cadet N/A

Throttle Plate

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

126

Cub Cadet N/A

Throttle Plate Lock Washer

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

127

Cub Cadet N/A

Throttle Plate Screw

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

128

Cub Cadet N/A

Throttle Shaft

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

129

Cub Cadet N/A

Idle Jet Assembly

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

130

Cub Cadet N/A

Fiber O-Ring

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

131

Cub Cadet N/A

Idle Speed Adjusting Screw

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

132

Cub Cadet N/A

Idle Mixture Screw

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

133

Cub Cadet N/A

Carburetor Body

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

134

Cub Cadet N/A

Main Nozzle / Emulsion Tube

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

135

Cub Cadet N/A

Main Jet

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

136

Cub Cadet 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

136

Cub Cadet N/A

Fuel Bowl O-Ring

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

137

Cub Cadet N/A

Needle Valve

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

138

Cub Cadet N/A

Needle Valve Spring

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

139

Cub Cadet N/A

Float

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

140

Cub Cadet N/A

Float Pin

Note: Furnish 951-10874, Carburetor Kit Major

$

$

Currently unavailable

141

Cub Cadet N/A

Fuel Bowl

Note: Furnish 951-10873, Carburetor Assembly

$

$

Currently unavailable

142

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

142

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-10874, Carburetor Kit Major

$5.49

$

Usually ships in 3-6 days

0

143

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0

144

Cub Cadet 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$3.99

$

In Stock, only 4 left!

0

145

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 16

0

145

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-10874, Carburetor Kit Major

$3.99

$

In Stock, Qty 16

0

146

Cub Cadet 951-11737

Carburetor Gasket

$5.49

$

In Stock, Qty 11

0

146

Cub Cadet 951-11737

Carburetor Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$5.49

$

In Stock, Qty 11

0

146

Cub Cadet 951-11737

Carburetor Gasket

Note: Furnish 951-11788, Gasket Kit External

$5.49

$

In Stock, Qty 11

0

147

Cub Cadet 951-11738

Carburetor Insulator

$5.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-11738

Carburetor Insulator

Note: Furnish 951-11787, Gasket Kit Complete

$5.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-11738

Carburetor Insulator

Note: Furnish 951-11789, Shortblock

$5.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-11738

Carburetor Insulator

Note: Furnish 951-11746, Cylinder Head Assembly

$5.49

$

Usually ships in 3-6 days

0

147

Cub Cadet 951-11738

Carburetor Insulator

Note: Furnish 951-11788, Gasket Kit External

$5.49

$

Usually ships in 3-6 days

0

148

Cub Cadet 951-11528

Carburetor Insulator Gasket

$4.49

$

In Stock, only 2 left!

0

148

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$4.49

$

In Stock, only 2 left!

0

148

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11789, Shortblock

$4.49

$

In Stock, only 2 left!

0

148

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11746, Cylinder Head Assembly

$4.49

$

In Stock, only 2 left!

0

148

Cub Cadet 951-11528

Carburetor Insulator Gasket

Note: Furnish 951-11788, Gasket Kit External

$4.49

$

In Stock, only 2 left!

0

149

Cub Cadet 710-05093

Carb Stud M6x92

$3.99

$

In Stock, only 2 left!

0

150

Cub Cadet 710-04982

Head Bolt M8×54

$3.99

$

Usually ships in 3-6 days

0

150

Cub Cadet 710-04982

Head Bolt M8×54

Note: Furnish 951-10846A, Cylinder Head Kit

$3.99

$

Usually ships in 3-6 days

0

151

Cub Cadet N/A

Cylinder Head

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

152

Cub Cadet 951-10292

Spark Plug/F6rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

153

Cub Cadet N/A

Intake Valve

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

153

Cub Cadet N/A

Intake Valve

Note: Furnish 951-10313, Valve Kit

$

$

Currently unavailable

154

Cub Cadet N/A

Intake Valve Seal

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

154

Cub Cadet 951-11818

Valve Seal

Note: Furnish 951-10846A, Cylinder Head Kit

$10.99

$

Usually ships in 3-6 days

0

155

Cub Cadet N/A

Exhaust Valve

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

155

Cub Cadet N/A

Exhaust Valve

Note: Furnish 951-10313, Valve Kit

$

$

Currently unavailable

156

Cub Cadet N/A

Valve Spring

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

157

Cub Cadet N/A

Valve Spring Retainer

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

158

Cub Cadet 951-11687

Push Rod Guide

$6.99

$

Usually ships in 3-6 days

0

158

Cub Cadet 951-11687

Push Rod Guide

Note: Furnish 951-11746, Cylinder Head Assembly

$6.99

$

Usually ships in 3-6 days

0

159

Cub Cadet 951-11606

Rocker Arm Assembly

$37.99

$

In Stock, only 1 left!

0

160

Cub Cadet 710-04902

Rocker Arm Stud

$6.49

$

In Stock, Qty 12

0

160

Cub Cadet 710-04902

Rocker Arm Stud

Note: Furnish 951-11746, Cylinder Head Assembly

$6.49

$

In Stock, Qty 12

0

161

Cub Cadet N/A

Rocker Arm

Note: Furnish 951-11746, Cylinder Head Assembly

$

$

Currently unavailable

162

Cub Cadet 751-11123

Valve Adjustment Nut

$9.99

$

In Stock, Qty 10

0

162

Cub Cadet 751-11123

Valve Adjustment Nut

Note: Furnish 951-11746, Cylinder Head Assembly

$9.99

$

In Stock, Qty 10

0

163

Cub Cadet 751-11124

Pivot Locking Nut

$8.99

$

In Stock, Qty 6

0

163

Cub Cadet 751-11124

Pivot Locking Nut

Note: Furnish 951-11746, Cylinder Head Assembly

$8.99

$

In Stock, Qty 6

0

164

Cub Cadet 951-11551

Valve Cover Gasket

$9.99

$

In Stock, Qty 11

0

164

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$9.99

$

In Stock, Qty 11

0

164

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11789, Shortblock

$9.99

$

In Stock, Qty 11

0

164

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11746, Cylinder Head Assembly

$9.99

$

In Stock, Qty 11

0

164

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-11788, Gasket Kit External

$9.99

$

In Stock, Qty 11

0

164

Cub Cadet 951-11551

Valve Cover Gasket

Note: Furnish 951-10846A, Cylinder Head Kit

$9.99

$

In Stock, Qty 11

0

165

Cub Cadet 951-11548

Valve Cover

$13.99

$

Usually ships in 3-6 days

0

166

Cub Cadet 710-05094

Muffler Stud M6x95

$4.49

$

In Stock, Qty 10

0

166

Cub Cadet 710-05094

Muffler Stud

Note: Furnish 951-10342, Muffler Stud Assembly

$4.49

$

In Stock, Qty 10

0

167

Cub Cadet 951-11739

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$9.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11789, Shortblock

$9.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11739

Muffler Gasket

Note: Furnish 951-11746, Cylinder Head Assembly

$9.99

$

Usually ships in 3-6 days

0

167

Cub Cadet 951-11739

Muffler Heat Shield Gasket

Note: Furnish 951-11788, Gasket Kit External

$9.99

$

Usually ships in 3-6 days

0

168

Cub Cadet 951-10295

Muffler Assembly
(Superseded to 951-10403)

$76.99

$

In Stock, only 1 left!

0

169

Cub Cadet 951-11791

Muffler Shield

$

$

Not available

170

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$51.99

$

Usually ships in 3-6 days

0

171

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11555

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11787, Gasket Kit Complete

$11.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11789, Shortblock

$11.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-11746, Cylinder Head Assembly

$11.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-11555

Cylinder Head Gasket

Note: Furnish 951-10846A, Cylinder Head Kit

$11.99

$

Usually ships in 3-6 days

0

173

Cub Cadet 715-04090

Cylinder Head Dowel 10×16
(Superseded to 715-04108)

$3.99

$

In Stock, only 3 left!

0

173

Cub Cadet 715-04090

Cylinder Head Dowel 10×16
(Superseded to 715-04108)

Note: Furnish 951-11789, Shortblock

$3.99

$

In Stock, only 3 left!

0

174

Cub Cadet 951-10314

Push Rod Kit

Note: Furnish 951-11788, Gasket Kit External

$16.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11607

Tappet

$7.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-11607

Tappet

Note: Furnish 951-11789, Shortblock

$7.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11741

Camshaft Assembly

$61.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-11741

Camshaft Assembly

Note: Furnish 951-11789, Shortblock

$61.99

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-11688

Piston Ring Set

$18.99

$

In Stock, only 4 left!

0

177

Cub Cadet 951-11688

Piston Ring Set

Note: Furnish 951-11789, Shortblock

$18.99

$

In Stock, only 4 left!

0

178

Cub Cadet N/A

Upper Piston Compression Ring

Note: Furnish 951-11688 Piston Ring Set

$

$

Currently unavailable

179

Cub Cadet N/A

Lower Piston Compression Ring

Note: Furnish 951-11688 Piston Ring Set

$

$

Currently unavailable

180

Cub Cadet N/A

Piston Oil Ring Segment

Note: Furnish 951-11688 Piston Ring Set

$

$

Currently unavailable

181

Cub Cadet N/A

Piston Oil Ring Expander

Note: Furnish 951-11688 Piston Ring Set

$

$

Currently unavailable

182

Cub Cadet 951-11603

Piston Pin Snap Ring

$3.99

$

Usually ships in 3-6 days

0

182

Cub Cadet 951-11603

Piston Pin Snap Ring

Note: Furnish 951-11789, Shortblock

$3.99

$

Usually ships in 3-6 days

0

183

Cub Cadet 951-11604

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

183

Cub Cadet 951-11604

Piston Pin

Note: Furnish 951-11789, Shortblock

$7.49

$

Usually ships in 3-6 days

0

184

Cub Cadet 951-11605

Piston

$29.99

$

In Stock, only 1 left!

0

184

Cub Cadet 951-11605

Piston

Note: Furnish 951-11789, Shortblock

$29.99

$

In Stock, only 1 left!

0

185

Cub Cadet 951-11744

Connecting Rod Assembly

$64.99

$

Usually ships in 3-6 days

0

185

Cub Cadet 951-11744

Connecting Rod Assembly

Note: Furnish 951-11789, Shortblock

$64.99

$

Usually ships in 3-6 days

0

186

Cub Cadet N/A

Connecting Rod

Note: Furnish 951-11744, Connecting Rod Assembly

$

$

Currently unavailable

187

Cub Cadet N/A

Connecting Rod Cap

Note: Furnish 951-11744, Connecting Rod Assembly

$

$

Currently unavailable

188

Cub Cadet 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

188

Cub Cadet 710-05162

Connecting Rod Bolt

Note: Furnish 951-11789, Shortblock

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 951-11765

Oil Filler Tube Assembly
(Superseded to 951-11765A)

Note: Not Shown (Incl Ref No. 91,92)

$18.99

$

In Stock, only 1 left!

0

Cub Cadet 951-11795

Dipstick Assembly

Note: Not Shown (Incl Ref No. 90,91)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-10298

Air Cleaner Kit

Note: Not Shown (Incl Ref No. 114,115)

$15.99

$

In Stock, Qty 20+

0

Cub Cadet 951-10300

Fuel Cap Assembly

Note: Not Shown (Incl Ref No. 56-58)

$10.99

$

In Stock, Qty 10

0

Cub Cadet 951-10876

Air Cleaner Housing Ass'y Comp

Note: Not Shown (Incl Ref No. 113,117)

$36.99

$

In Stock, Qty 6

0

Cub Cadet 951-10874

Carburetor Repair Kit - Major
(Superseded to 951-10874A)

Note: Not Shown (Incl Ref No. 124,130,131,134-140,142,145)

$

$

Not available

Cub Cadet 951-10342

Muffler Stud Assembly

Note: Not Shown (Incl Ref No. 166)

$9.49

$

In Stock, only 2 left!

0

Cub Cadet 951-11721

Recoil Spring and Pulley Assembly

Note: Not Shown (Incl Ref No. 7,8)

$43.99

$

In Stock, only 2 left!

0

Cub Cadet 951-10363

Fuel Line Kit

Note: Not Shown (Incl Ref No. 60-62)

$26.99

$

In Stock, only 2 left!

0

Cub Cadet 951-10370

Oil Drain Plug and Washer Ass'y

Note: Not Shown (Incl Ref No. 108,109)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 951-11787

Gasket Kit - Complete

Note: Not Shown (Incl Ref No. 44,45,68,83,91,108,110,146-148,164,-167,172)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11789

Short Block

Note: Not Shown (Incl Ref No. 42-48,67-69,82-88,91,93,94,104-110,118,147,148,164,167,172,173-175-177,182-185,188)

$341.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11746

Cylinder Head Assembly

Note: Not Shown (Incl Ref No. 147,148,151,153-158,160-164,167,172)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11788

Gasket Kit - External

Note: Not Shown (Incl Ref No. 44,91,108,146-148,164,167,174)

$

$

Not available

Cub Cadet 951-10313

Valve Kit

Note: Not Shown (Incl Ref No. 153,155)

$60.99

$

In Stock, only 1 left!

0

Cub Cadet 951-10846A

Cylinder Head Kit

Note: Not Shown (Incl Ref No. 150,154,164,172)

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z5P65M0B

Engine Complete
(Superseded to 952Z5P65MU)

Note: Not Shown

$

$

Not available
