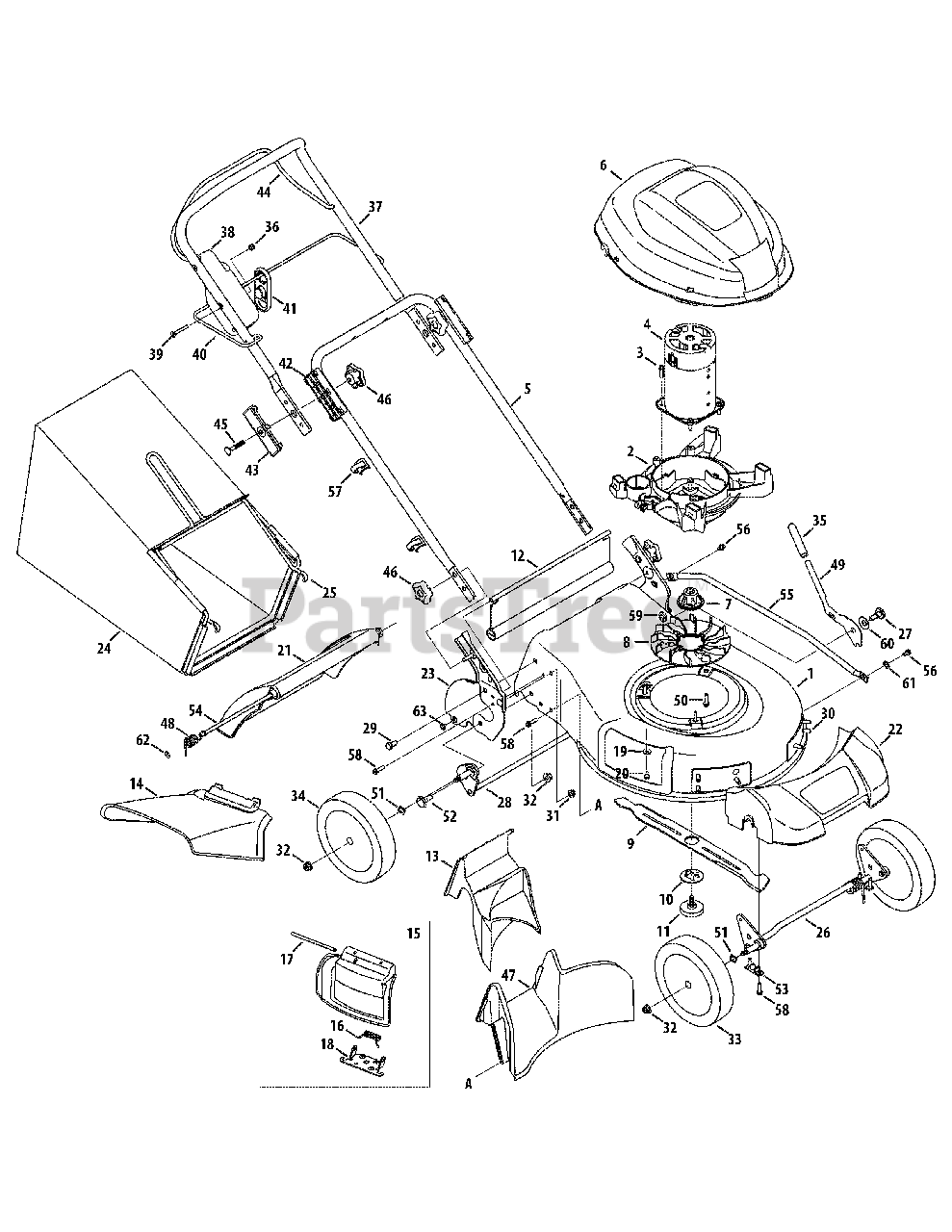

CC 500 EL (18A-182-710) - Cub Cadet Walk-Behind Mower, Electric (2008) General Assembly Parts Diagram

Walk-Behind Mower, Electric

General Assembly Parts Diagram

  • Title

1

Cub Cadet 787-01649

19'' Deck

Variations

Cub Cadet 787-01649-0638

SHELL-19" DECK - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 787-01649-0640

SHELL-19" DECK - CO-OP GREEN (0640)

$

$

Not available

Cub Cadet 787-01649-0691

SHELL-19" DECK - BLACK JACK (0691)

$

$

Not available

Cub Cadet 787-01649-0709

SHELL-19" DECK - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 787-01649-0721

USE 787-01649-4044 SHELL-19" - SEARS RED (0721)

$

$

Not available

Cub Cadet 787-01649-4021

SHELL-19" DECK - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 787-01649-4044

SHELL-19" DECK - CRAFTSMAN RED (4044)

$

$

Not available

$

$

2

Cub Cadet 731-05727

Motor Bracket

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet 624-04010

Electric Motor, 120V

$

$

Not available

4

Cub Cadet 925-1715

Rectifier

Note: Not Shown

$77.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 787-01421

Bracket,Rectifier

Note: Not Shown

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 749-04312

Lower Handle

Variations

Cub Cadet 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 5

0

$50.99

$

In Stock, Qty 5

0

6

Cub Cadet 731-05749

Motor Shroud

$

$

Not available

7

Cub Cadet 731-2095A

Blade Hub
(Superseded to 631-04228)

$24.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-05832

Electric Fan

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 742-04152

Mulching Blade
(Superseded to 942-04152)

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 782-7051

Blade Locking Plate

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 624-0078

Blade Bolt Assembly

$28.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-05639A

Trail Shield

$19.99

$

In Stock, Qty 5

0

13

Cub Cadet 731-05746

Rear Mulch Plug

$

$

Not available

14

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

Note: (Incl. Ref No.16-18)

$27.99

$

In Stock, Qty 12

0

16

Cub Cadet 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0270

Bellville Washer

$3.99

$

In Stock, Qty 9

0

20

Cub Cadet 710-0599

Screw, 1/4-15 x .750

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 731-05686

Rear Door
(Superseded to 931-05686)

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-05634

Front Cover
(Superseded to 931-05634)

$67.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02325

Handle Bracket - RH

Variations

Cub Cadet 687-02325-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$31.99

$

In Stock, only 1 left!

0

$27.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02324

Handle Bracket - LH

Variations

Cub Cadet 687-02324-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 664-04078

Grass Bag
(Superseded to 964-04078)

$

$

Not available

25

Cub Cadet 647-04107

Grass Bag Frame
(Superseded to 647-04107-0637)

Variations

Cub Cadet 647-04107-0637

FRAME ASM-GRSBAG - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02225

Front Bracket Assembly
(Superseded to 687-02225-0637)

Variations

Cub Cadet 687-02225-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

27

Cub Cadet 738-0148

Screw, Shoulder, .50 x .66
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 687-02228

Rear Bracket Assembly
(Superseded to 687-02228-0637)

Variations

Cub Cadet 687-02228-0637

AXLE ASM-REAR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

30

Cub Cadet 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

31

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Nut, Flange Lock 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 634-04346

Front Wheel

$39.99

$

In Stock, only 2 left!

0

34

Cub Cadet 634-04347

Rear Wheel

$48.99

$

In Stock, only 2 left!

0

35

Cub Cadet 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

36

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 749-04353

Upper Handle

$

$

Not available

38

Cub Cadet 625-04035

Motor/Blade Control
(Superseded to 925-04035)

$188.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04213

Screw, Flat, 1/4-20 x 1.75
(Superseded to 753-04430)

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-04672

Guide Rod

$

$

Not available

41

Cub Cadet 726-0368

Cord Retainer

Variations

Cub Cadet 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 731-05186

Lower Handle Insulator

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 731-05178

Upper Handle Insulator

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 747-04663

Motor/Blade Control Handle
(Superseded to 747-04663A)

$22.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0572

Bolt, Carriage, 5/16-18 x 2.50

$4.49

$

In Stock, only 4 left!

0

46

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 731-05710

Rear Baffle
(Superseded to 731-05710A)

$33.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04264

Door Torsion Spring - RH

$10.99

$

In Stock, only 1 left!

0

48

Cub Cadet 732-04265

Door Torsion Spring - LH

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-04377B

Spring Lever
(Superseded to 732-04377C)

$

$

Not available

50

Cub Cadet 710-0726

Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 738-0507B

Screw, Shoulder, .500 Dia x .434

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0492A

Bushing, Lock, .505 Dia x .62

$6.49

$

In Stock, Qty 12

0

54

Cub Cadet 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-04356

Cross Bracket
(Superseded to 749-04356-0637)

Variations

Cub Cadet 749-04356-0637

BRACKET-CROSS:ELEC - POWDER BLACK (0637)

$

$

Not available

$

$

56

Cub Cadet 738-04278

Screw, Shoulder, 1/4-20 x .50

$6.99

$

In Stock, Qty 20+

0

57

Cub Cadet 731-2422

Cable Guide

$15.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 20+

0

59

Cub Cadet 731-05880

Spacer, .515 x 1.00 x .310

$3.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0255

Washer, Bell .510 x 1.14 x .040

$4.99

$

In Stock, only 3 left!

0

61

Cub Cadet 736-3012A

Washer Wave, .390 x .825 x .016

$6.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 726-0201

Nut, Speed

$6.99

$

In Stock, Qty 20+

0

63

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0
