CC 5075 SS (41AD575C910) - Cub Cadet String Trimmer (2007) Boom Parts Diagram

String Trimmer

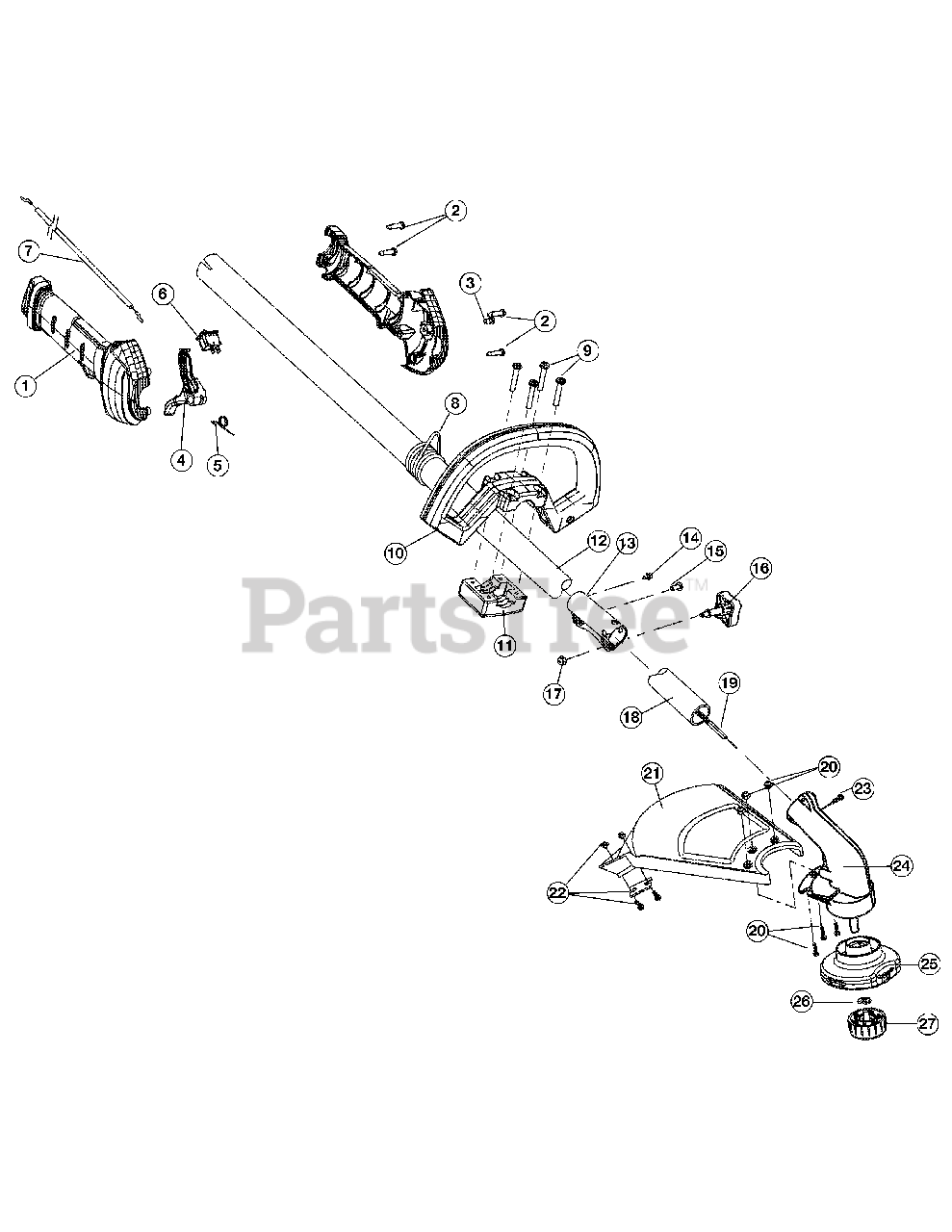

Boom Parts Diagram

  • Title

1

Cub Cadet 753-05292

Throttle Grip Assembly (includes 2-6)

$

$

Not available

2

Cub Cadet 753-05274

Screw
(Superseded to 710-04508)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 753-05293

Throttle Trigger
(Superseded to 731-04970B-10)

$8.99

$

In Stock, Qty 10

0

5

Cub Cadet 753-05007

Throttle Trigger Spring

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-186405

Switch

$

$

Currently unavailable

7

Cub Cadet 753-05270

Throttle Cable

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-05008

D-Handle

$29.99

$

In Stock, only 2 left!

0

11

Cub Cadet 753-05009

D-Handle Base

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-04344

Upper Drive Shaft Assembly

$79.99

$

In Stock, Qty 8

0

13

Cub Cadet 791-181616B

Split Boom Coupler Assembly (includes 14-17)
(Superseded to 753-1190)

$21.99

$

In Stock, only 4 left!

0

14

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 14

0

15

Cub Cadet 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

16

Cub Cadet 791-181618B

Knob (includes 17)
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

17

Cub Cadet 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 753-04504

Lower Drive Shaft Housing Assembly

$64.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-05267

Lower Flex Shaft

$39.99

$

In Stock, Qty 8

0

20

Cub Cadet 791-180547

Guard Mounting Screw Assembly

$

$

Not available

21

Cub Cadet 753-1213

Gaurd Assembly (includes 22)
(Superseded to 1A6902)

$

$

Not available

22

Cub Cadet 791-181823

Blade Assembly

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 10

0

24

Cub Cadet 753-05168

Gearbox Assembly

$

$

Not available

25

Cub Cadet 753-05165

Fixed Head Line Assembly
(Superseded to 753-08193)

$11.99

$

In Stock, Qty 20+

0

26

Cub Cadet 791-182413

Lock Washer
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

Cub Cadet 753-05164

Replacement Line, 0.105" Diameter
(Superseded to 796-00027)

Note: Optional Accessories Not shown

$28.99

$

Usually ships in 3-6 days

0
