CC 600 (12ACW6M9710) - Cub Cadet Walk-Behind Mower (2021) Drive Parts Diagram

Walk-Behind Mower

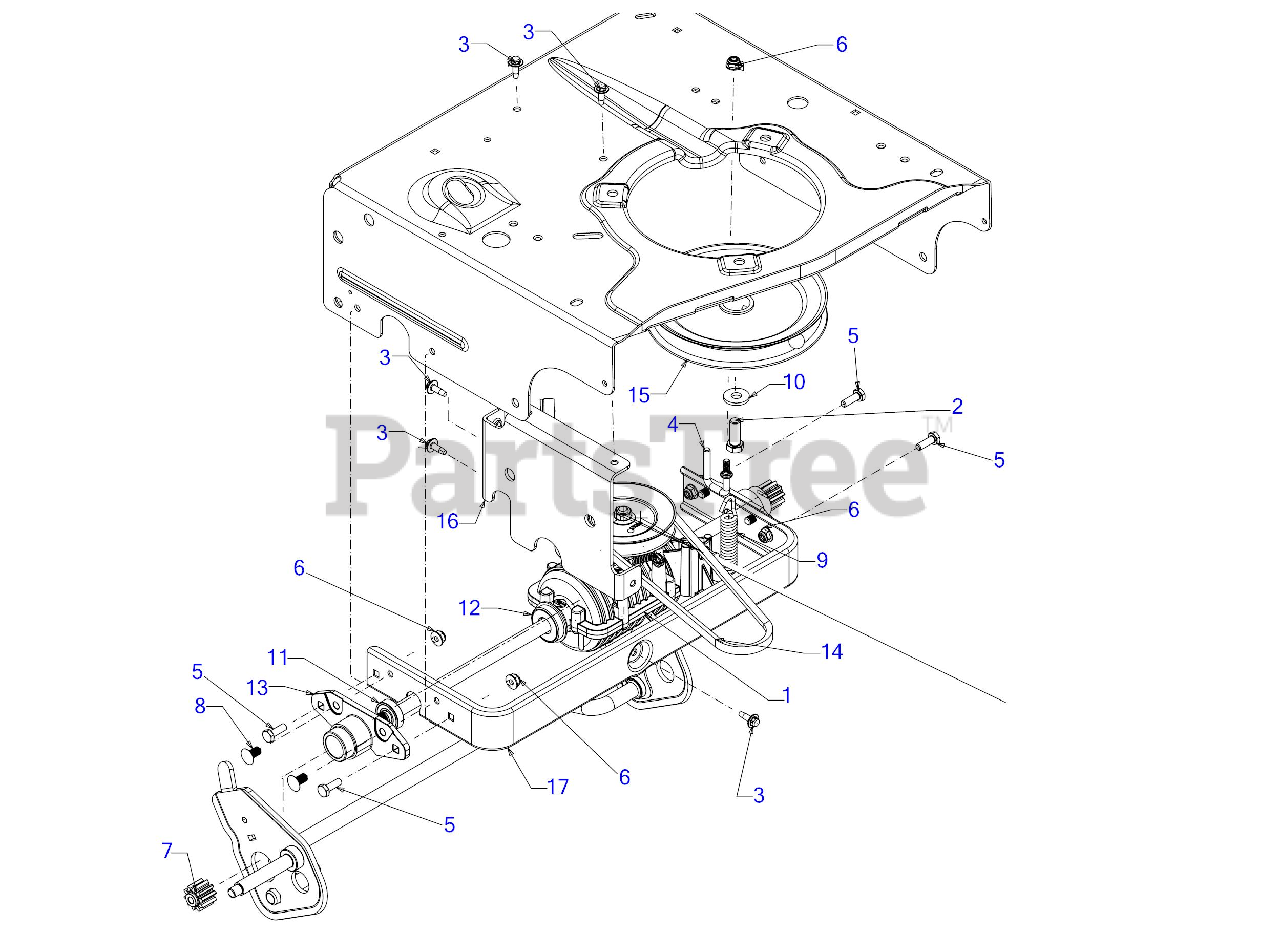

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07163

TRANSMISSION

$396.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0591

SCREW 3/8-24 x 1.00 GR5

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-06534

EYE BOLT SPRING GUIDE 1/4-20

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 917-04852

SPUR GEAR 10T

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 726-0465

RETAINER PAN CLIP

$5.49

$

In Stock, Qty 16

0

9

Cub Cadet 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3072

WASHER

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 741-04430A

BALL BEARING

$6.99

$

In Stock, Qty 8

0

12

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 8

0

13

Cub Cadet 948-05111A

DRIVE BEARING

$27.99

$

In Stock, only 3 left!

0

14

Cub Cadet 954-05090

BELT 3/8 x 24.68"

$29.99

$

In Stock, only 4 left!

0

15

Cub Cadet 756-05201

ENGINE PULLEY

$104.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 787-03454A

TRANSMISSION SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 787-03454A-0606

BRACKET-TRANSMISSI - MAJESTIC ORANGE (0606)

$26.99

$

In Stock, only 2 left!

0

Cub Cadet 787-03454A-0638

BRACKET-TRANSMISSI - MTD/TROY-BILT RED (0638)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-03454A-0691

BRACKET-TRANSMISSI - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-03454A-4021

BRACKET-TRANSMISSI - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 787-03588A

AXLE BEARING SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 787-03588A-0606

AXLE BEARING PLATE - MAJESTIC ORANGE (0606)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-03588A-0638

AXLE BEARING PLATE - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-03588A-4021

AXLE BEARING PLATE - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-03588A-4028

AXLE BEARING PLATE - SEARS YELLOW (4028)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0
