CC 760 ES (12AE76JU009) - Cub Cadet Walk-Behind Mower (2016) Frame Assembly Parts Diagram

Walk-Behind Mower

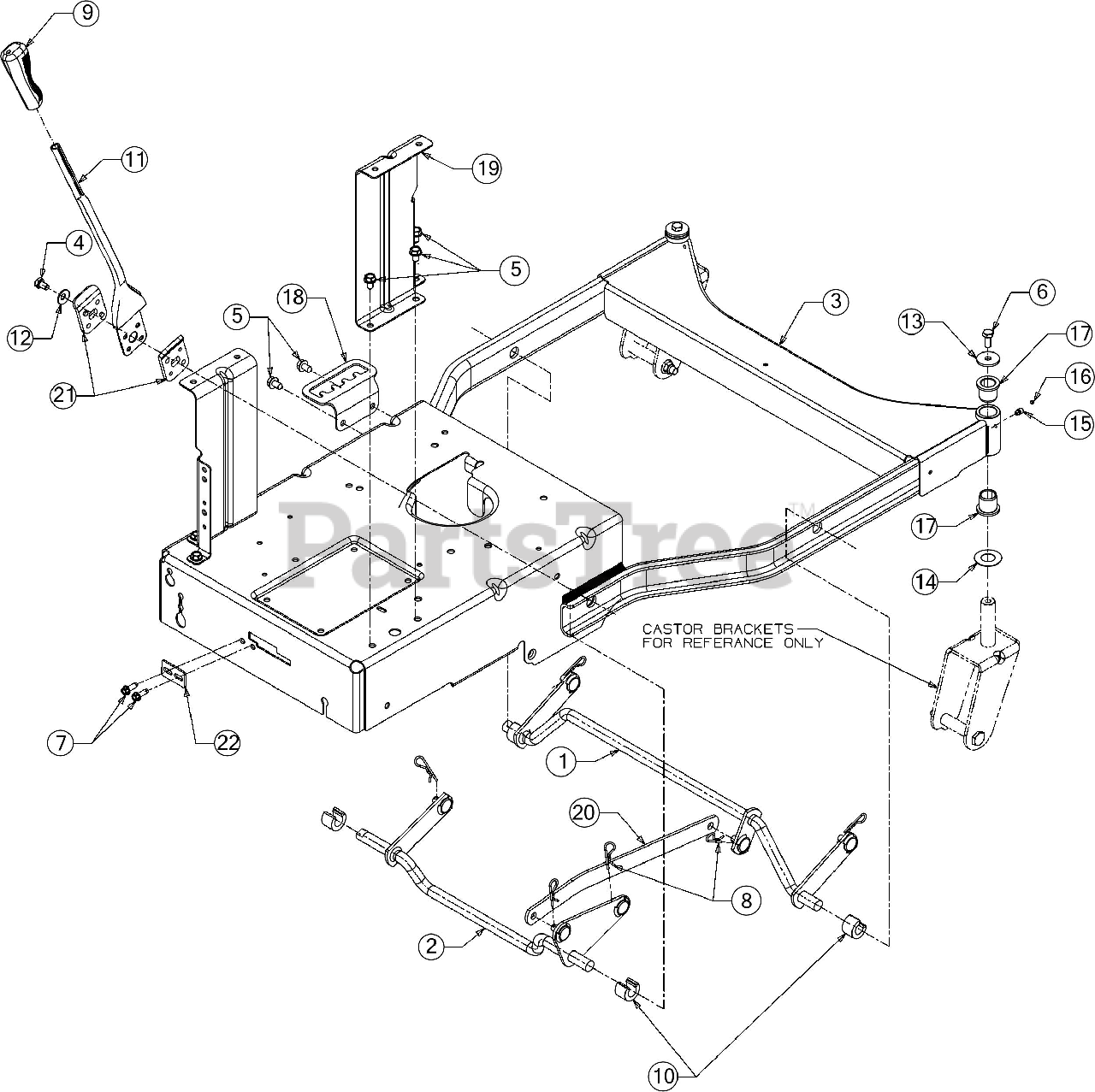

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 687-02265-0637

FRONT LIFT ASSEMBLY

$55.99

$

In Stock, only 1 left!

0

2

Cub Cadet 687-02419-0637

DECK LIFT ASSEMBLY

$64.99

$

In Stock, only 2 left!

0

3

Cub Cadet 687-02591B-4021

FRAME ASSEMBLY
(Superseded to 687-02591C-4021)

$416.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 787-01996-4021

FRAME BRACKET

$

$

Currently unavailable

4

Cub Cadet 710-04312

SCREW 5/16-18 X .50

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0604A

SCREW 5/16-18 X .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0627

SCREW 5/16-24 X .750 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0642

SCREW 1/4-20 X .750

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 720-0311

HANDLE GRIP

$14.99

$

In Stock, Qty 5

0

10

Cub Cadet 731-05791

SNAP SPACER

$5.49

$

In Stock, Qty 5

0

11

Cub Cadet 732-04418C

DECK HEIGHT LEVER

$41.99

$

In Stock, Qty 14

0

12

Cub Cadet 736-0242

BELL WASHER .337 X.867 X .057

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0343

WASHER-5/16 X 1.25X 1.27

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 936-0351

THRUST WASHER
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 937-3000

GREASE FITTING

$4.49

$

In Stock, Qty 20+

0

16

GREASE

$

$

Not available

17

Cub Cadet 741-0660A

FLANGE BEARING .760 ID

$2.99

$

In Stock, Qty 20+

0

18

Cub Cadet 787-01496-0637

HEIGHT ADJUSTMENT BRACKET

$

$

Currently unavailable

19

Cub Cadet 787-01507B-4021

FUEL TANK BRACKET

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 787-01510-0637

LIFT LINK

$36.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 787-01521-0637

HEIGHT LEVER BRACKET

$8.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 787-02009

SHIFT PLATE

$9.49

$

Usually ships in 3-6 days

0
