CC 800 (12AE764B010) - Cub Cadet Walk-Behind Mower (2024) Engine Accessories Parts Diagram

Walk-Behind Mower

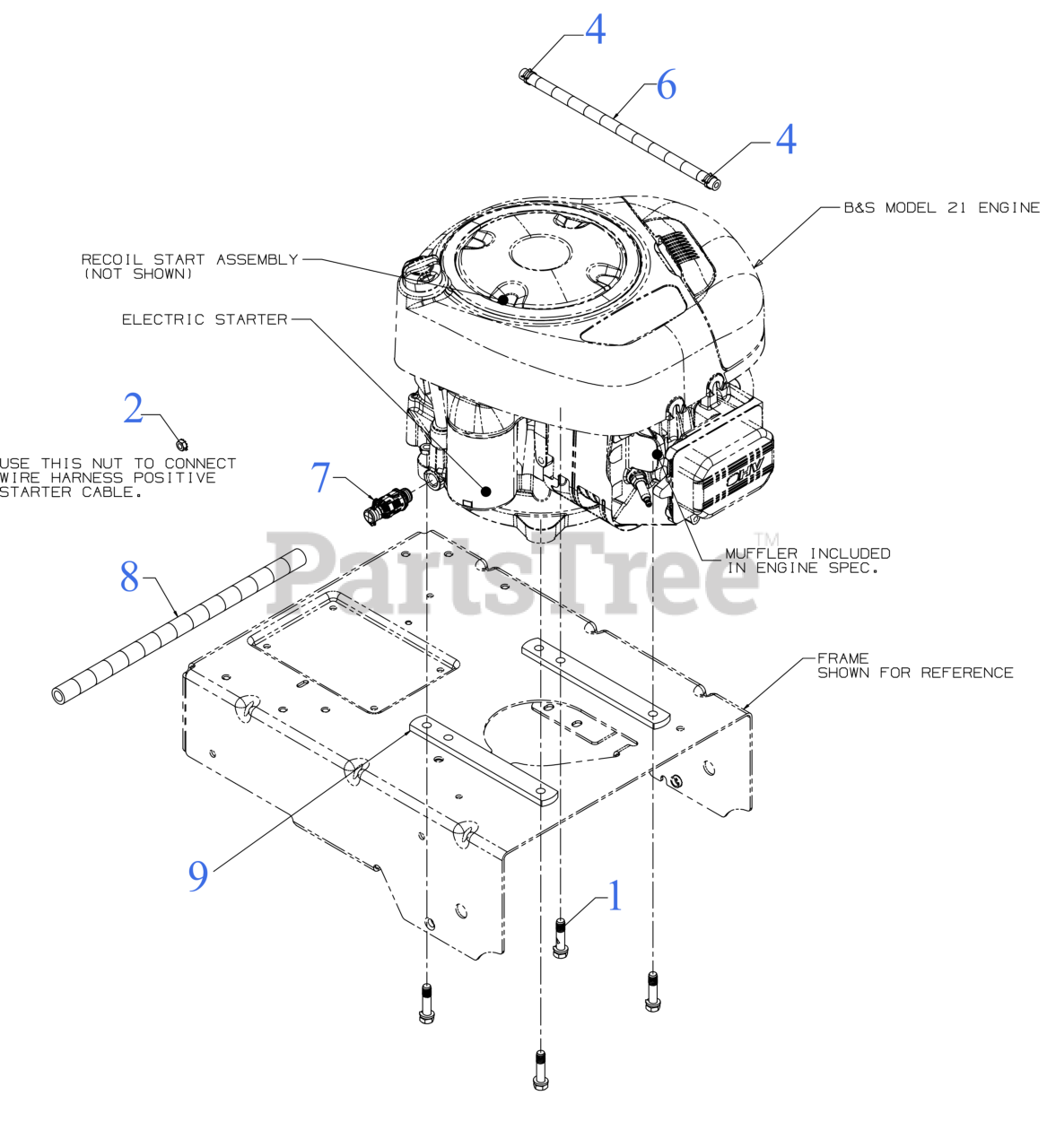

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-1858A

SCREW 3/8-16 x 1.75

Note: (6/1/22 & After)

$4.49

$

In Stock, only 2 left!

0

1

Cub Cadet 710-1007

SCREW 3/8-16 x 1.500

Note: (6/1/22 & Before)

$6.99

$

In Stock, Qty 15

0

2

Cub Cadet 712-0271

SEMS NUT 1/4-20

$4.99

$

In Stock, Qty 17

0

4

Cub Cadet 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 751-10349-13

FUEL HOSE LOW PERMEATION 13"

$18.99

$

In Stock, only 3 left!

0

7

Cub Cadet 951-10517A

OIL DRAIN VALVE

$25.99

$

In Stock, Qty 20+

0

8

Cub Cadet 751-3141-14

DRAIN HOSE 14''

$12.99

$

In Stock, Qty 18

0

9

Cub Cadet 787-01932

ENGINE PLATE MTG

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 787-01932-0606

PLATE-ENGINE MTG - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01932-0638

PLATE-ENGINE MTG - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01932-0691

PLATE-ENGINE MTG - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01932-4021

PLATE-ENGINE MTG - CUB YELLOW 2 (4021)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01932-4033

PLATE-ENGINE MTG - FLINT MICA (4033)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 490-000-C044

Cub Cadet 10W30 Engine Oil 32OZ

$11.99

$

In Stock, Qty 20+

0
