CC 98 (12A-98K7209) - Cub Cadet Walk-Behind Mower (2012) Kohler XT800-3016 Fuel System Parts Diagram

Walk-Behind Mower

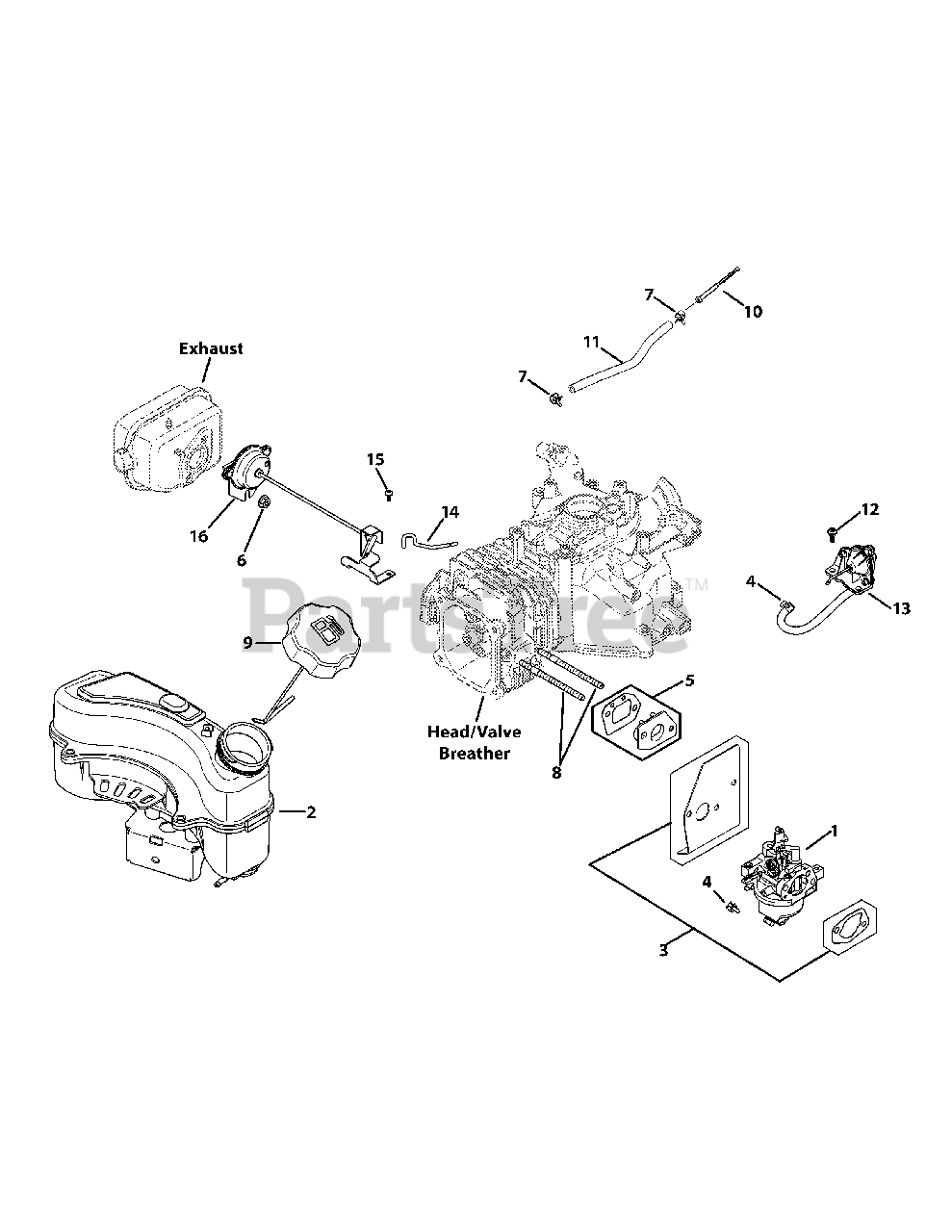

Kohler XT800-3016 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-14-853-45-S

Carburetor Kit
(Superseded to KH-14-853-57-S)

$43.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-14-065-41-S

Fuel Tank Assembly Fuel (Xenoy)

$83.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-14-041-24-S

Gasket Kit
(Superseded to KH-14-041-31-S)

$13.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-14-237-05-S

Hose Clamp

$2.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-14-112-09-S

Spacer Kit

$16.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-14-100-08-S

Hex Flange Nut, M6
(Superseded to KH-14-100-16-S)

$1.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-237-07-S

Hose Clamp (Non-California)

$

$

Not available

8

Cub Cadet KH-14-072-23-S

Carburetor Stud

$4.99

$

In Stock, Qty 5

0

9

Cub Cadet KH-14-227-16-S

Fuel Cap Assembly (Evap.)
(Superseded to KH-14-227-26-S)

$30.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-14-050-14-S

In-Nipple Fuel Filter

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-25-111-69-S

Low-Permeation Fuel Hose (Cky.)

$9.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-25-086-275-S

Shoulder Screw

$

$

Not available

13

Cub Cadet KH-14-268-04-S

Diaphragm Assembly

$19.99

$

In Stock, Qty 8

0

14

Cub Cadet KH-14-079-17-S

Auto Choke Linkage
(Superseded to KH-14-079-26-S)

$4.99

$

In Stock, Qty 14

0

15

Cub Cadet KH-25-086-277-S

Thread Forming Screw, M4

$

$

Not available

16

Cub Cadet KH-14-187-03-S

Auto Choke Arm Assembly

$27.99

$

Usually ships in 2-5 days

0
