CC 98 K (12A-98K6009) - Cub Cadet Walk-Behind Mower (2010) Kohler XT173-0084 Ignition & Electrical Parts Diagram

Walk-Behind Mower

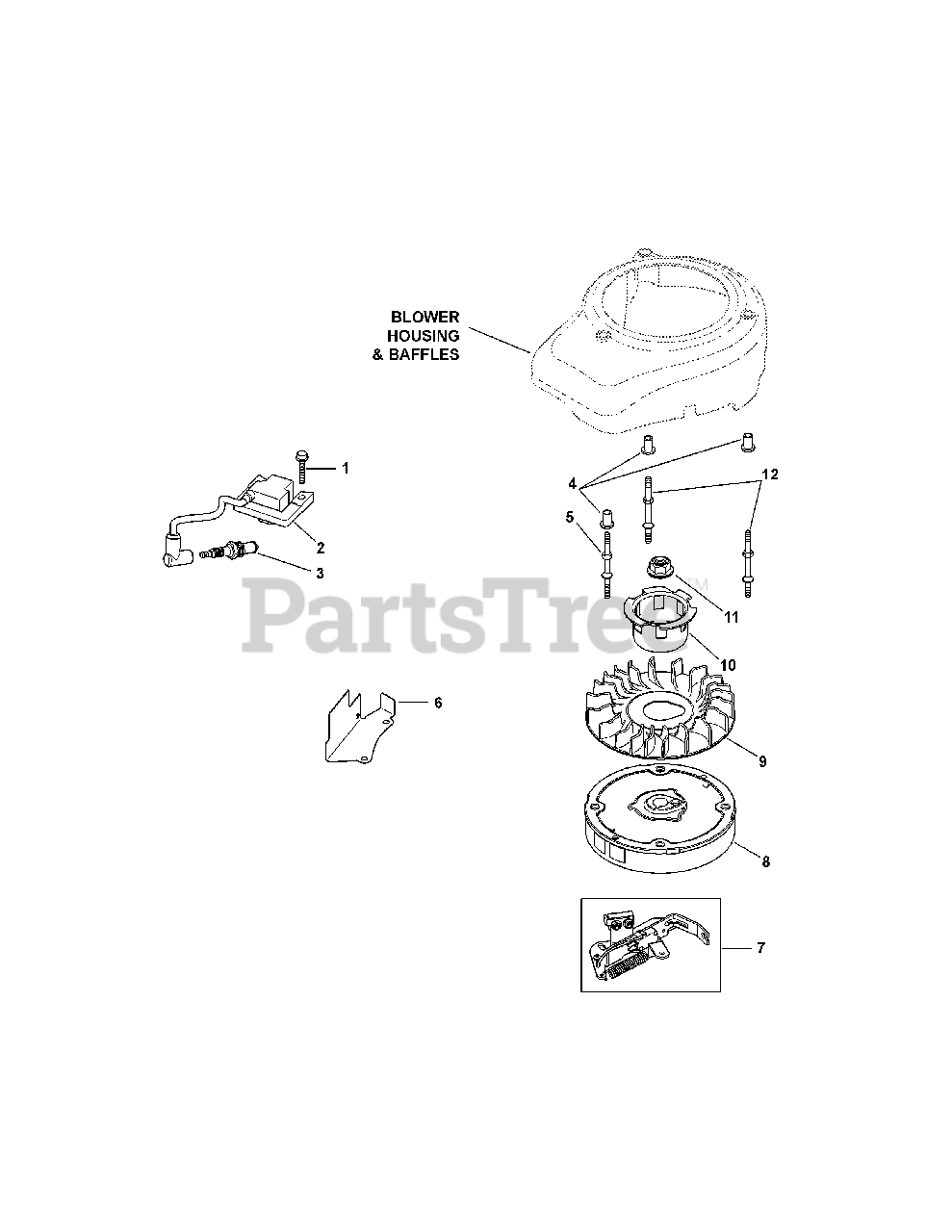

Kohler XT173-0084 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-25-086-145-S

Screw, Hex Flange (M6)

$

$

Not available

2

Cub Cadet KH-14-584-05-S

Module, Ign (Alum Std Ign)

$54.99

$

In Stock, only 1 left!

0

3

Cub Cadet 759-3336

Plug, Spark (Std)
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-14-112-07-S

Spacer

$2.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-14-072-13-S

Stud
(Superseded to KH-14-072-25-S)

$5.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-14-314-01-S

Guard

$6.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-219-07-S

Brake Assembly, Carb Side

Note: (Includes Brake Lever, Brake Spring, Flange Nuts, Brake Pad, Ground To Kill Lead, Screw, Kill Switch, Brake Bracket, Brake Lever Washer, Brake Lever Rivet)

$29.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-14-025-02-S

Flywheel (Aluminum)

$120.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-14-157-01-S

Fan, Flywheel
(Superseded to KH-17-157-06-S)

$10.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-14-109-02-S

Cup, Drive

$

$

Not available

11

Cub Cadet KH-14-100-10-S

Nut, Flywheel (W/Serrations)

$5.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-14-072-12-S

Stud
(Superseded to KH-14-072-26-S)

$5.49

$

In Stock, only 4 left!

0
