CC 98 M (12A-98K7209) - Cub Cadet Walk-Behind Mower (2011) Kohler XT173-3315 Ignition & Electrical Parts Diagram

Walk-Behind Mower

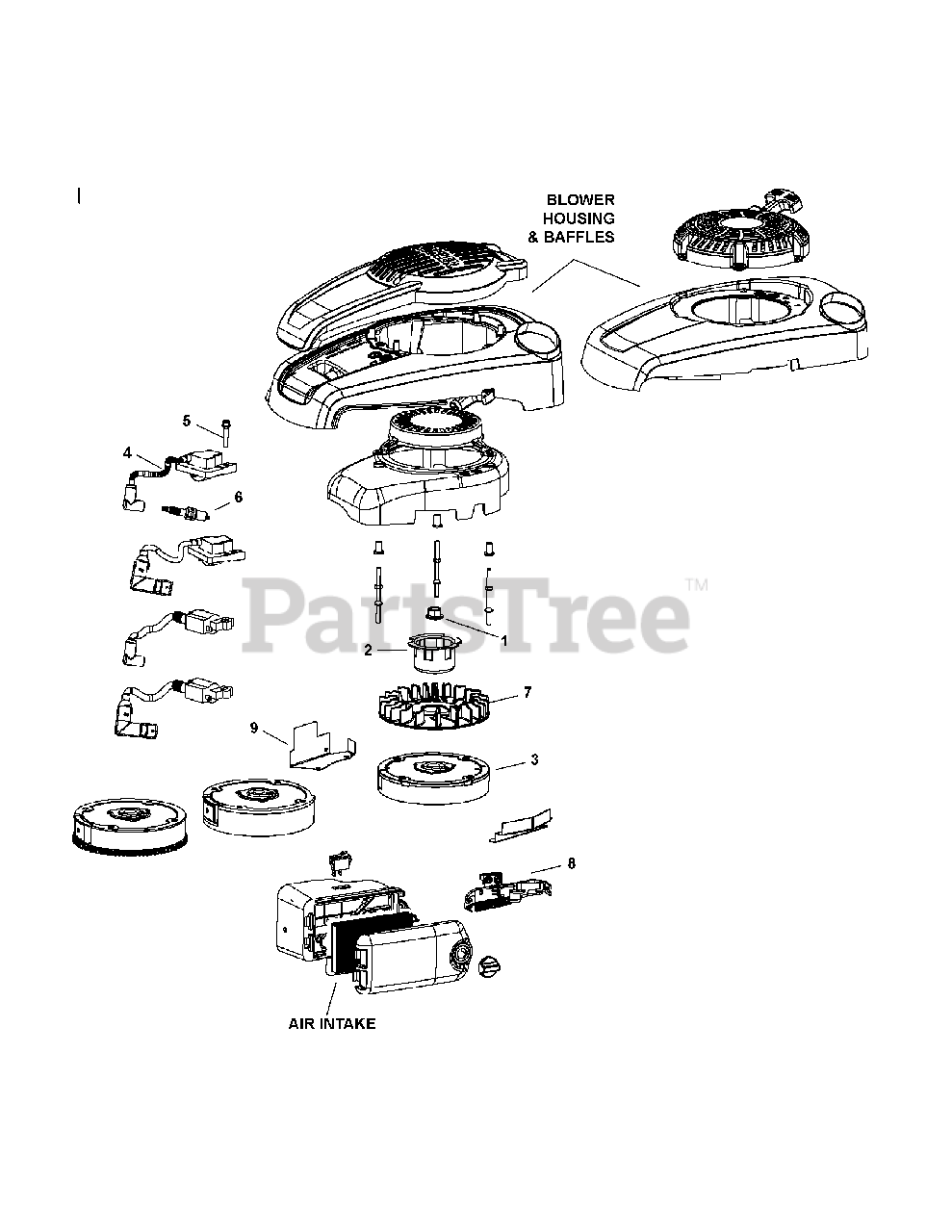

Kohler XT173-3315 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-14-100-10-S

Nut, Flywheel (w/ serrations)

$8.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-14-109-02-S

Drive Cup

$

$

Not available

3

Cub Cadet KH-14-025-02-S

Flywheel Assembly

$161.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-14-584-05-S

Ignition Module

$80.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-086-145-S

Hex Flange Screw, M6

$

$

Not available

6

Cub Cadet KH-14-132-03-S

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 2-6 days

0

7

Cub Cadet KH-14-157-01-S

Flywheel Fan
(Superseded to KH-17-157-06-S)

$15.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-14-219-07-S

Brake Assembly, Carb Side

$44.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-14-314-01-S

Guard

$9.49

$

Usually ships in 2-5 days

0
