CC 98 M (12A-98MC010) - Cub Cadet Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

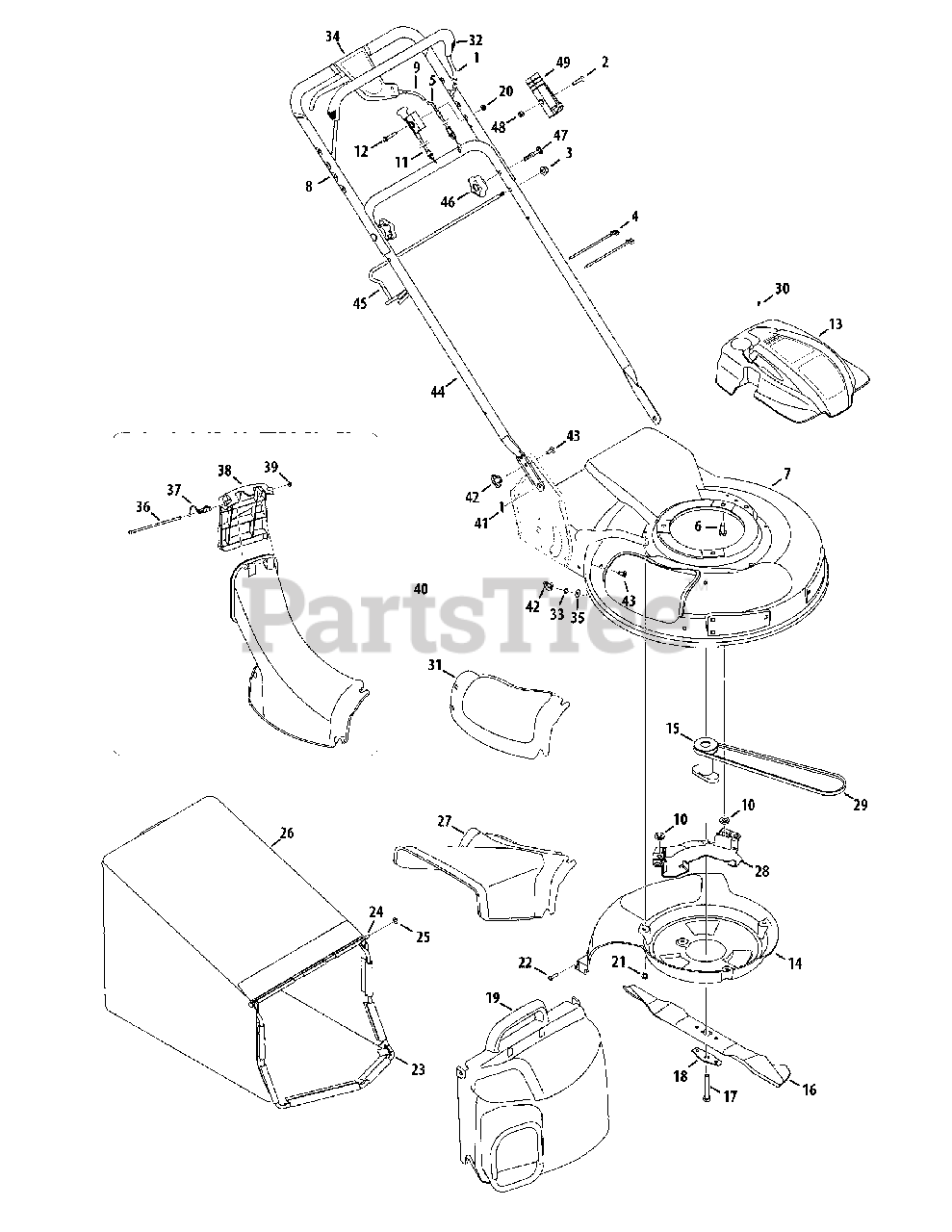

General Assembly Parts Diagram

  • Title

1

Cub Cadet 747-1161A

Blade Control

Variations

Cub Cadet 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 20+

0

$13.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-1270

Machine Screw, 1/4-20 x 1.310

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 746-04431

Control Cable
(Superseded to 946-04431)

$34.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 782-0078B

21-inch Deck

Variations

Cub Cadet 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

Cub Cadet 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

Cub Cadet 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

Cub Cadet 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

Cub Cadet 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

Cub Cadet 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

8

Cub Cadet 749-04482

Upper Handle
(Superseded to 749-04482-0637)

Variations

Cub Cadet 749-04482-0637

HANDLE-UPPER 900 W - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 746-0711B

Drive Cable
(Superseded to 946-0711B)

$32.99

$

In Stock, Qty 12

0

10

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, Qty 16

0

11

Cub Cadet 746-04430

Choke Cable
(Superseded to 946-04430A)

$49.99

$

In Stock, only 3 left!

0

12

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 13

0

13

Cub Cadet 631-04232A

Engine Shroud
(Superseded to 931-04232B)

$63.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-1828

Rear Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, Qty 10

0

15

Cub Cadet 748-04015A

Blade Adapter
(Superseded to 948-04015A)

$65.99

$

In Stock, only 2 left!

0

16

Cub Cadet 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1257

HH Cap Screw, 3/8-24 x 2.50

$7.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0524B

Bell Blade Spacer
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

19

Cub Cadet 631-0071

Grass Bag Cover Assembly

$103.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0653

TT Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, Qty 20+

0

23

Cub Cadet 747-0937

Grass Bag Frame
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 747-0939

Grass Bag Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 664-0180

Grass Bag Assembly
(Superseded to 964-0076A)

$98.99

$

In Stock, only 3 left!

0

27

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

28

Cub Cadet 782-9063

Belt Keeper
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 754-0460

V-Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 14

0

30

Cub Cadet 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

31

Cub Cadet 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, Qty 7

0

32

Cub Cadet 731-05564

Bail Cover

$18.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

34

Cub Cadet 753-05096A

Drive Control Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, Qty 8

0

35

Cub Cadet 736-3090

Washer, Flat, .260 x .720 x .060

$6.99

$

In Stock, only 1 left!

0

36

Cub Cadet 747-0965

Chute Door Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-1874

Top Discharge Door Chute
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 726-0111

Push Cap

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 631-0066

Top Discharge Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 6

0

$50.99

$

In Stock, Qty 6

0

45

Cub Cadet 747-0940A

Grass Bag Support Rod
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 746-0883

ERS Housing

$16.99

$

In Stock, Qty 20+

0
