CC 989 (12A-989Q709) - Cub Cadet Walk-Behind Mower (2006) Handle and Bag Parts Diagram

Walk-Behind Mower

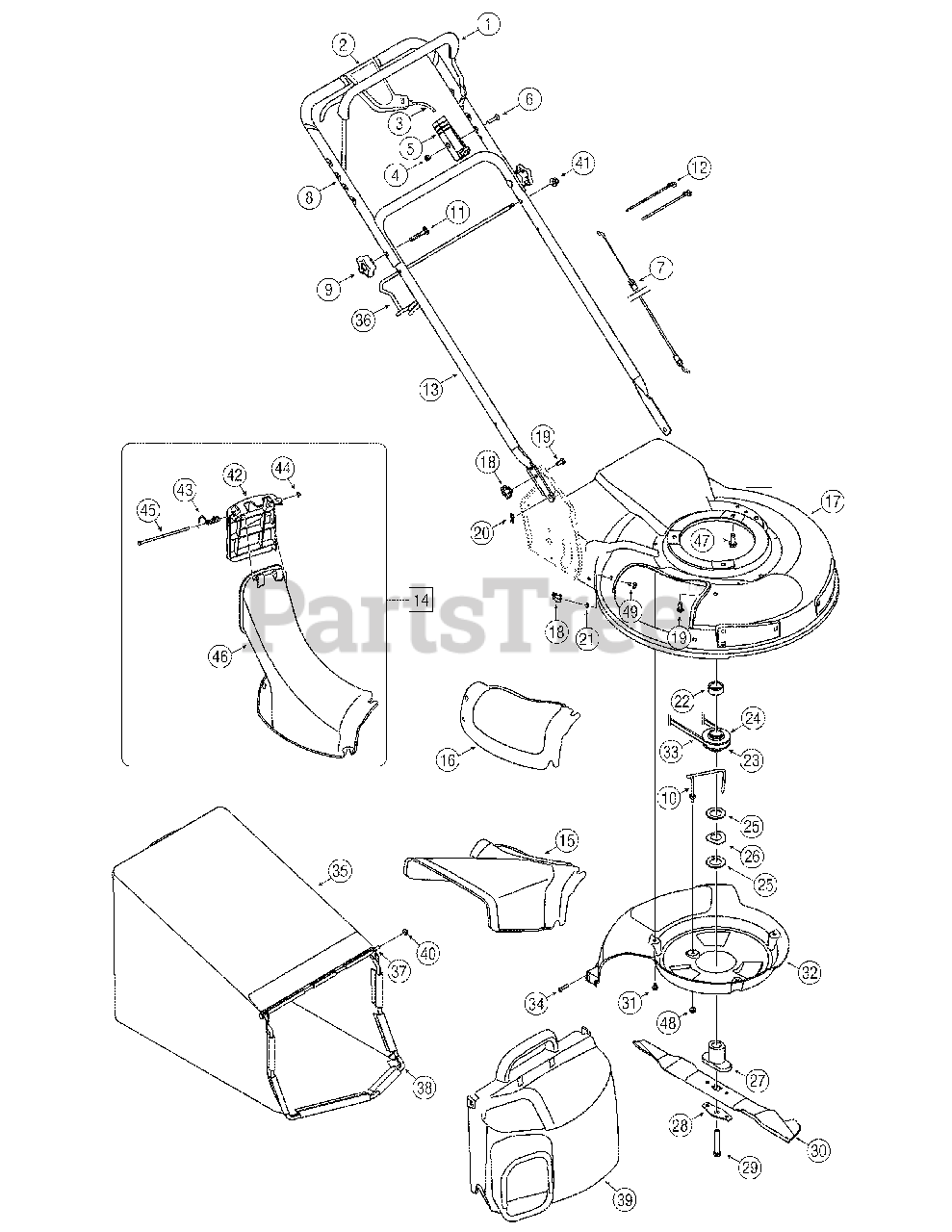

Handle and Bag Parts Diagram

  • Title

1

Cub Cadet 647-04008

Deluxe Control Handle
(Superseded to 647-04008A)

$48.99

$

In Stock, only 1 left!

0

2

Cub Cadet 753-05096A

Control Lever Assembly
(Superseded to 753-06060A)

$25.99

$

In Stock, Qty 10

0

3

Cub Cadet 746-0711B

Drive Cable 51"
(Superseded to 946-0711B)

$29.99

$

In Stock, Qty 13

0

4

Cub Cadet 712-0324

Top Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 746-0883

Control Housing

$15.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1270

Oval C-Sunk Screw

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 746-0557

Control Cable 47"
(Superseded to 946-0557)

$25.99

$

In Stock, Qty 5

0

8

Cub Cadet 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

Cub Cadet 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 1 left!

0

$43.99

$

In Stock, only 1 left!

0

9

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 747-04451

Belt Keeper
(Superseded to 753-05899)

$

$

Not available

11

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

13

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 6

0

$46.99

$

In Stock, Qty 6

0

14

Cub Cadet 631-0066

Chute Assembly
(Superseded to 931-0066)

$107.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-1832

Side-Discharge Chute

$

$

Not available

16

Cub Cadet 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$41.99

$

In Stock, Qty 8

0

17

Cub Cadet 782-0078B

Deck 21"

Variations

Cub Cadet 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

Cub Cadet 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

Cub Cadet 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

Cub Cadet 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

Cub Cadet 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

Cub Cadet 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

18

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 726-0233

Push Nut .25 x ID x .

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet 750-04438A

Sleeve Spacer 25mm x 1.375 x

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-04160

Half Pulley: Key 25mm x
(Superseded to 956-04160)

$19.99

$

In Stock, only 2 left!

0

24

Cub Cadet 756-04161

Half Pulley: Upper 25mm
(Superseded to 956-04161)

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0250

Flat Washer 1.00 x 1.75

$4.49

$

In Stock, Qty 10

0

26

Cub Cadet 736-04173

Spring Washer 1.005 x 1.825 x

$12.99

$

In Stock, only 2 left!

0

27

Cub Cadet 748-04082

Blade Adapter Kit

$34.99

$

In Stock, Qty 15

0

28

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

30

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 16

0

32

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$34.99

$

In Stock, Qty 10

0

33

Cub Cadet 754-0460

Belt 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 15

0

34

Cub Cadet 710-0969

HL Screw #12-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

35

Cub Cadet 664-0180

Grass Catcher Assembly
(Superseded to 964-0076A)

$91.99

$

In Stock, only 3 left!

0

36

Cub Cadet 747-0940A

Support Rod w/ Rope
(Superseded to 747-0940A-0637)

Variations

Cub Cadet 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-0937

Grass bag Frame
(Superseded to 747-0937-0637)

Variations

Cub Cadet 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 631-0071

Grass bag Cover

$96.99

$

In Stock, only 1 left!

0

40

Cub Cadet 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 712-04063

Hex Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 731-1874

Chute Door
(Superseded to 731-1874A)

$16.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 732-0819

Torsion Spring

$8.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 726-0111

Push Cap

$6.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 731-1713B

Discharge Chute
(Superseded to 931-0066)

$107.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0654A

Sems Screw 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

48

Cub Cadet 712-04064

Flange Lock Nut, 14-20

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0
