CC 997 ES (12AE997E710) - Cub Cadet Walk-Behind Mower (2006) Electric Equipment Parts Diagram

Walk-Behind Mower

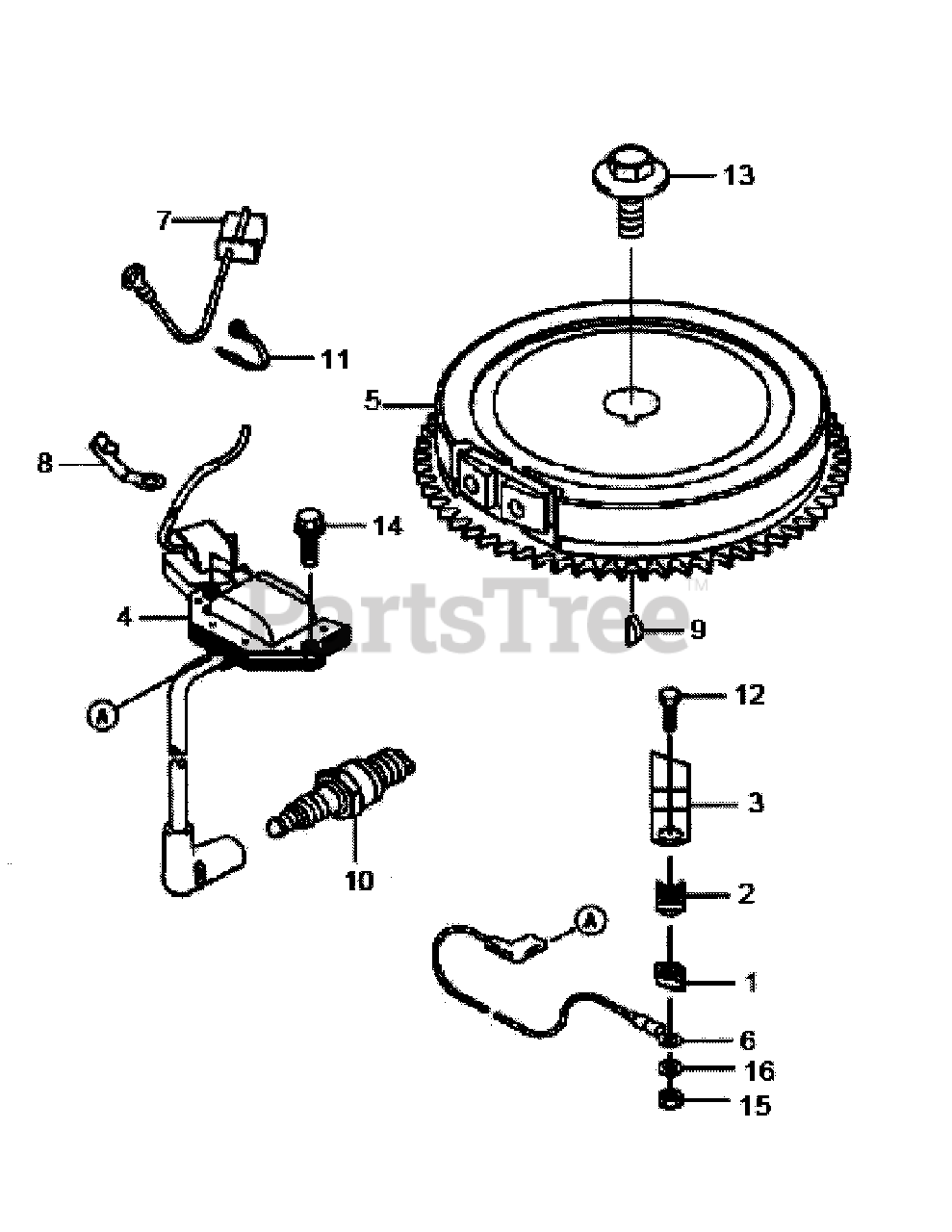

Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-14090-2108

Cover

$0.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-16073-2192

Insulator

$1.49

$

In Stock, only 2 left!

0

3

Cub Cadet KM-21169-2071

Terminal

$0.99

$

In Stock, Qty 9

0

4

Cub Cadet KM-21171-7011

Ignition Coil Assy.
(Superseded to KM-21171-2268)

$130.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-21193-7026

Flywheel

$189.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-26011-7013

Lead Wire

$2.99

$

In Stock, only 1 left!

0

7

Cub Cadet KM-26031-7004

Harness

$2.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-92037-2011

Clamp

$1.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92038-2077

Flywheel Key

$2.99

$

In Stock, Qty 14

0

10

Cub Cadet KM-BPR5ES

Spark Plug

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92072-7003

Band

$1.49

$

In Stock, Qty 5

0

12

Cub Cadet KM-92153-7012

Bolt, 4x16

$0.99

$

In Stock, Qty 5

0

13

Cub Cadet KM-92153-7030

Bolt, 12x30

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-130B0620

Flanged Bolt

$1.49

$

In Stock, only 1 left!

0

15

Cub Cadet KM-311B0400

Hex Nut
(Superseded to KM-311AA0400)

$0.99

$

In Stock, Qty 10

0

16

Cub Cadet KM-410B0400

Plain Washer
(Superseded to KM-410AA0400)

$0.99

$

In Stock, Qty 9

0
