CC 999 ES (12AE999J010) - Cub Cadet Walk-Behind Mower (2010) B&S 12S905-0707-B1 Engine 3 Parts Diagram

Walk-Behind Mower

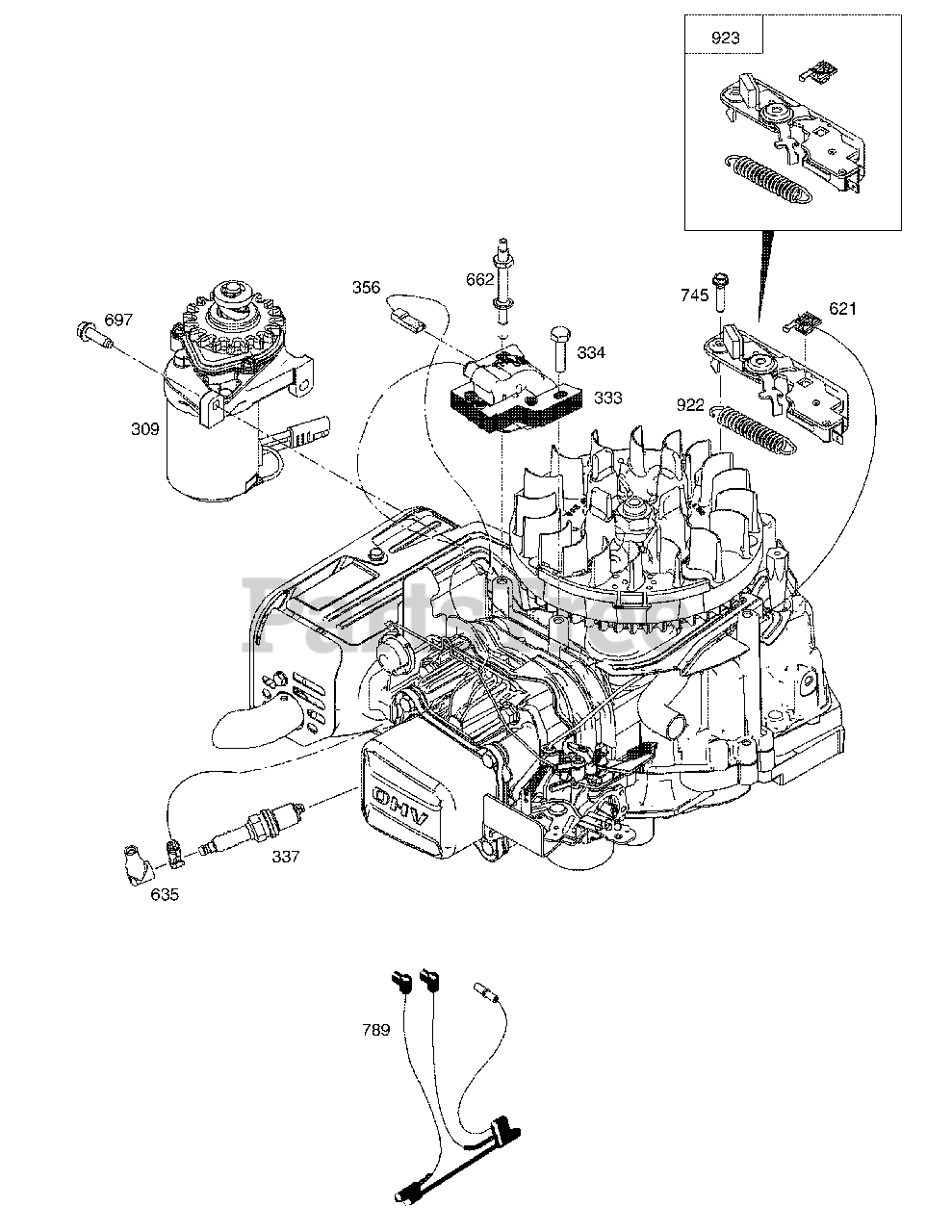

B&S 12S905-0707-B1 Engine 3 Parts Diagram

  • Title

1

Cub Cadet BS-796509

Cylinder Assembly

$

$

Not available

3

Cub Cadet BS-299819S

Seal-Oil

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-796471

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-796475

Gasket-Cylinder Head

$12.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-796478

Tube-Breather

$

$

Not available

12

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-793451

Screw

$

$

Not available

15

Cub Cadet BS-691680

Plug-Oil Drain

$5.99

$

In Stock, only 4 left!

0

16

Cub Cadet BS-796469

Crankshaft

$

$

Not available

20

Cub Cadet BS-399781S

Seal-Oil

$7.99

$

In Stock, Qty 18

0

22

Cub Cadet BS-691092

Screw

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet BS-796619

Flywheel
(Superseded to BS-590421)

$192.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-796639

Piston Assembly (Standard)

$

$

Currently unavailable

25

Cub Cadet BS-796640

Piston Ass’y. (.020" Oversize)

$

$

Currently unavailable

26

Cub Cadet BS-796641

Ring Set (Standard)

$

$

Not available

26

Cub Cadet BS-796642

Ring Set (.020" Oversize)

$25.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691588

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-298909

Pin-Piston

$8.99

$

In Stock, only 4 left!

0

29

Cub Cadet BS-796470

Rod-Connecting

$43.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-691664

Screw

$4.49

$

In Stock, only 2 left!

0

32A

Cub Cadet BS-695759

Screw

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-499642

Valve-Exhaust

$35.99

$

In Stock, Qty 6

0

34

Cub Cadet BS-795443

Valve-Intake

$27.99

$

In Stock, Qty 5

0

35

Cub Cadet BS-691304

Spring-Valve

$5.99

$

In Stock, Qty 8

0

36

Cub Cadet BS-691304

Spring-Valve

$5.99

$

In Stock, Qty 8

0

37

Cub Cadet BS-796536

Guard-Flywheel

$

$

Not available

40

Cub Cadet BS-692194

Retainer-Valve

$5.99

$

In Stock, Qty 18

0

43

Cub Cadet BS-796650

Slinger-Governor/Oil

$25.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

In Stock, only 2 left!

0

46

Cub Cadet BS-694039

Camshaft

$65.99

$

In Stock, only 1 left!

0

51

Cub Cadet BS-796596

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

58

Cub Cadet BS-697316

Rope-Starter

$5.99

$

In Stock, Qty 11

0

60

Cub Cadet BS-281434S

Grip-Starter Rope

$3.99

$

In Stock, Qty 12

0

75

Cub Cadet BS-691736

Washer

$5.99

$

Usually ships in 2-12 days

0

78

Cub Cadet BS-793480

Screw

$3.99

$

In Stock, Qty 18

0

81

Cub Cadet BS-691740

Lock-Muffler Screw

$5.49

$

In Stock, only 1 left!

0

104

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

Usually ships in 2-12 days

0

105

Cub Cadet BS-398188

Valve-Float Needle

$6.49

$

In Stock, Qty 20+

0

117

Cub Cadet BS-697355

Jet-Main

$

$

Not available

118

Cub Cadet BS-494870

Jet-Main

$14.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-796612

Kit-Carburetor Overhaul

$37.99

$

In Stock, only 1 left!

0

122

Cub Cadet BS-796595

Spacer-Carburetor

$10.99

$

In Stock, Qty 6

0

125

Cub Cadet BS-796608

Carburetor

$67.99

$

In Stock, Qty 7

0

133

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 9

0

137

Cub Cadet BS-796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 7

0

163

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 20+

0

187

Cub Cadet BS-796491

Line-Fuel

$19.99

$

In Stock, only 1 left!

0

192

Cub Cadet BS-796631

Adjuster-Rocker Arm

$13.99

$

Usually ships in 2-12 days

0

202

Cub Cadet BS-796657

Link-Mechanical Governor

$8.49

$

In Stock, only 1 left!

0

209

Cub Cadet BS-796484

Spring-Governor

$7.49

$

In Stock, Qty 17

0

216

Cub Cadet BS-796485

Link-Choke

$9.49

$

Usually ships in 2-12 days

0

222

Cub Cadet BS-796482

Bracket-Control

$43.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-796487

Lever-Governor Control

$14.99

$

Usually ships in 2-12 days

0

238

Cub Cadet BS-691300

Cap-Valve

$9.49

$

In Stock, Qty 11

0

276

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

291

Cub Cadet BS-796486

Thermostat

$

$

Not available

300

Cub Cadet BS-796495

Muffler-Exhaust

$

$

Not available

304

Cub Cadet BS-796693

Housing-Blower

$82.99

$

Usually ships in 2-12 days

0

306

Cub Cadet BS-796535

Shield-Cylinder

$14.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-793480

Screw

$3.99

$

In Stock, Qty 18

0

309

Cub Cadet BS-795092

Motor-Starter
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-690662

Nut
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 13

0

333

Cub Cadet BS-796499

Armature-Magneto
(Superseded to BS-595554)

$38.99

$

In Stock, only 1 left!

0

334

Cub Cadet BS-793454

Screw

$4.49

$

Usually ships in 2-12 days

0

337

Cub Cadet BS-692051

Plug-Spark
(Superseded to 759-3336)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-692390

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

358

Cub Cadet BS-796661

Gasket Set-Engine
(Superseded to BS-799495)

$78.99

$

Usually ships in 2-12 days

0

365

Cub Cadet BS-793458

Screw

$3.99

$

In Stock, only 2 left!

0

404

Cub Cadet BS-690272

Washer

$3.99

$

Usually ships in 2-12 days

0

445

Cub Cadet BS-795066

Filter-Air Cleaner Cartridge

$13.99

$

In Stock, Qty 20+

0

505

Cub Cadet BS-793515

Nut

$3.99

$

In Stock, only 1 left!

0

523

Cub Cadet BS-796503

Dipstick

$14.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-692296

Seal-Dipstick Tube

$4.99

$

In Stock, Qty 9

0

525

Cub Cadet BS-796502

Tube-Dipstick

$

$

Not available

562

Cub Cadet BS-793514

Bolt

$7.49

$

In Stock, only 1 left!

0

592

Cub Cadet BS-793481

Nut

$3.99

$

In Stock, only 2 left!

0

601

Cub Cadet BS-791850

Clamp-Hose

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-796497

Starter-Rewind

$68.99

$

In Stock, only 2 left!

0

613

Cub Cadet BS-796496

Screw

$5.49

$

In Stock, Qty 16

0

615

Cub Cadet BS-796674

Retainer-Governor Shaft

$

$

Not available

616

Cub Cadet BS-796488

Crank-Governor
(Superseded to BS-798327)

$12.99

$

In Stock, only 1 left!

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

623

Cub Cadet BS-793628

Seal-O Ring

$4.99

$

In Stock, only 1 left!

0

635

Cub Cadet BS-66538S

Boot-Spark Plug

$3.99

$

In Stock, Qty 16

0

662

Cub Cadet BS-796537

Stud

$7.49

$

In Stock, only 4 left!

0

662A

Cub Cadet BS-793479

Stud

$5.99

$

In Stock, only 3 left!

0

670

Cub Cadet BS-793485

Spacer-Fuel Tank

$6.49

$

In Stock, only 1 left!

0

697

Cub Cadet BS-691127

Screw

$4.49

$

In Stock, Qty 8

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-795755

Gear-Timing
(Superseded to BS-797521)

$13.99

$

In Stock, Qty 7

0

745

Cub Cadet BS-698557

Screw

$3.99

$

Usually ships in 2-12 days

0

789

Cub Cadet BS-792685

Harness-Wiring

$33.99

$

Usually ships in 2-12 days

0

830

Cub Cadet BS-796472

Stud-Rocker Arm

$7.49

$

In Stock, only 1 left!

0

842

Cub Cadet BS-691031

Seal-O Ring

$5.49

$

In Stock, Qty 12

0

847

Cub Cadet BS-796501

Dipstick/Tube Assembly

$

$

Not available

868

Cub Cadet BS-795440

Seal-Valve

$13.99

$

In Stock, only 1 left!

0

875

Cub Cadet BS-796492

Base-Air Cleaner

$45.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-793497

Gasket-Exhaust

$7.49

$

In Stock, Qty 18

0

883A

Cub Cadet BS-796677

Gasket-Exhaust

$9.49

$

In Stock, only 1 left!

0

886

Cub Cadet BS-796474

Gasket Kit-Cylinder Head Plate
(Superseded to BS-799492)

$27.99

$

In Stock, only 3 left!

0

914

Cub Cadet BS-794451

Screw

$4.49

$

In Stock, Qty 6

0

922

Cub Cadet BS-692135

Spring-Brake

$8.49

$

In Stock, only 2 left!

0

923

Cub Cadet BS-796635

Brake

$43.99

$

In Stock, only 1 left!

0

957

Cub Cadet BS-796577

Cap-Fuel Tank

$16.99

$

In Stock, Qty 12

0

957A

Cub Cadet BS-692046

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 12

0

968

Cub Cadet BS-796493

Cover-Air Cleaner

$27.99

$

In Stock, only 2 left!

0

972

Cub Cadet BS-796489

Tank-Fuel
(Superseded to BS-590949)

$96.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-796611

Bowl-Float

$6.49

$

In Stock, Qty 18

0

993

Cub Cadet BS-796473

Gasket-Cylinder Head Plate

$14.99

$

In Stock, only 4 left!

0

1022

Cub Cadet BS-796480

Gasket-Rocker Cover

$7.49

$

In Stock, only 1 left!

0

1023

Cub Cadet BS-796479

Cover-Rocker Arm

$25.99

$

Usually ships in 2-12 days

0

1026

Cub Cadet BS-796481

Rod-Push

$11.99

$

Usually ships in 2-12 days

0

1029

Cub Cadet BS-691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Cub Cadet BS-691343

Guide-Push Rod

$9.99

$

Usually ships in 2-12 days

0

1036

Cub Cadet N/A

Label-Emissions

$

$

Currently unavailable

1058

Cub Cadet N/A

Manual-Operator's

$

$

Currently unavailable

1059

Cub Cadet BS-793471

Kit-Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1095

Cub Cadet BS-796662

Gasket Set-Valve

$

$

Not available

1263

Cub Cadet BS-697124

Reed-Breather

$7.49

$

Usually ships in 2-12 days

0

1264

Cub Cadet BS-793453

Screw

$3.99

$

Usually ships in 2-12 days

0

1319

Cub Cadet BS-794467

Label-Warning

$20.99

$

Usually ships in 2-12 days

0

1375

Cub Cadet BS-796476

Cover-Breather/Reed

$10.99

$

Usually ships in 2-12 days

0

1376

Cub Cadet BS-794451

Screw

$4.49

$

In Stock, Qty 6

0

1395

Cub Cadet BS-690349

Screw

$6.99

$

In Stock, only 2 left!

0

1430

Cub Cadet BS-796477

Gasket-Breather/Reed

$

$

Not available
