CCE 400 (41AERE6C912) - CORE by Cub Cadet String Trimmer, Electric (2016) General Assembly Parts Diagram

String Trimmer, Electric

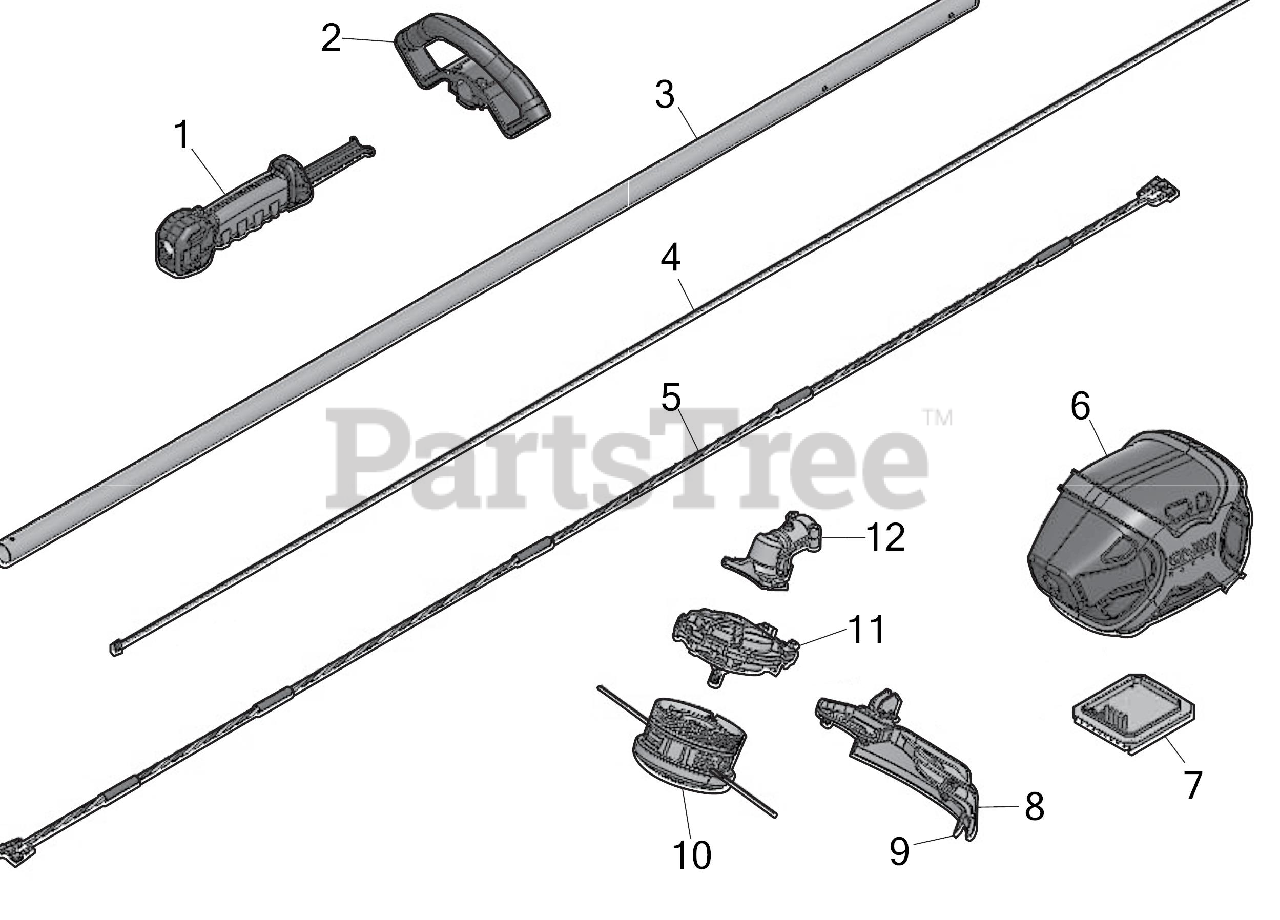

General Assembly Parts Diagram

  • Title

Cub Cadet 725-06375

BATTERY 36V
(Superseded to 490-280-C006)

Note: (Not Shown)

$289.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-08502

CHARGER 42V 8AH CESC8000 CORE

Note: (Not Shown)

$221.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 753-08566

ELITE GRIP ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-08406

HANDLE ASSEMBLY CORE

$

$

Not available

3

Cub Cadet 753-08411

BOOM E400 CORE

$26.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-08414

HARNESS HALL WIRE CGT400 CORE

$

$

Not available

5

Cub Cadet 753-08413

HARNESS PHS WIRE CGT400 CORE

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-08578

POWER HSG ASSEMBLY

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-08412

CONTROLLER E400 CORE

$85.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-08408

GUARD/BLD ASSEMBLY E400 CORE

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-08407

CUT OFF BLADE E400 CORE

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-08416

BUMP HEAD ASSEMBLY E400 CORE

$

$

Not available

11

Cub Cadet 753-08417

MOTOR ASSEMBLY E400 CORE

$169.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-08410

YOKE ASSEMBLY CGT400 CORE

$22.99

$

Usually ships in 3-6 days

0
