CCS-58V (107174001) - Echo Chainsaw, 58V Battery, Revision 12 (2019-02) General Assembly Parts Diagram

CCS-58V 58-V Chainsaw. Bar length: 16 in (406 mm) - Chain oil tank capacity: 6 oz (177 ml) - Chain: 3/8 in pitch, low-profile narrow kerf, .043 in gauge, 6-tooth drive sprocket - Guide bar length: 16 in (part number 16a4cd3756c) - Chain part number: 90px56cq 56

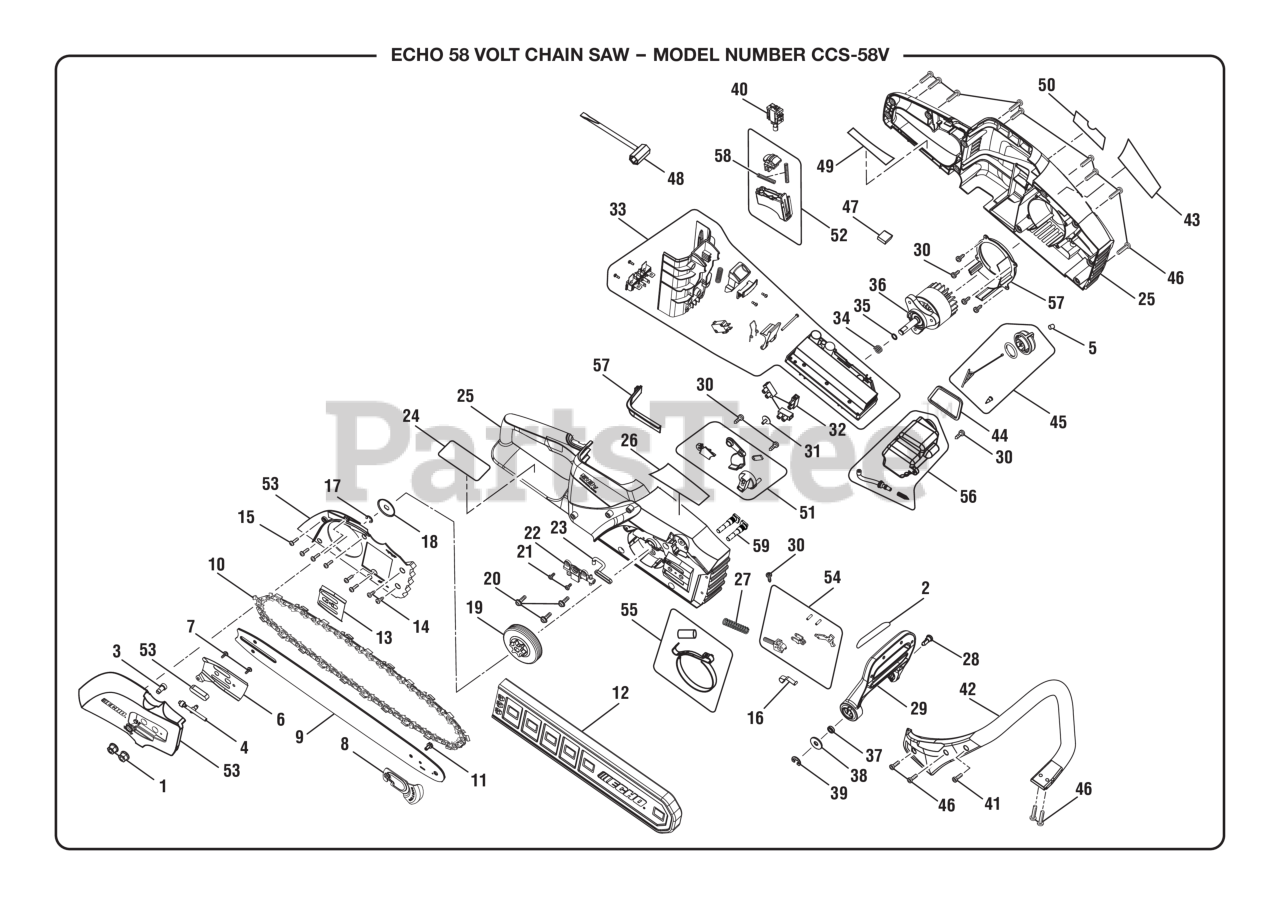

General Assembly Parts Diagram

  • Title

1

Echo 678339003

Flange Nut (5/16-18, Hex Hd. for Guide Bar)

$0.99

$

In Stock, Qty 6

0

2

Echo 940851057

Chain Brake Label

$1.49

$

Usually ships in 2-4 days

0

3

Echo 612376002

Driving Adjustment Gear

$2.49

$

In Stock, Qty 11

0

4

Echo 694251002

Driven Adjustment Gear

$3.99

$

In Stock, Qty 20+

0

5

Echo 900777001

Oil Cap Filter

$1.49

$

In Stock, Qty 10

0

6

Echo 635349002

Guide Plate

$1.49

$

In Stock, only 4 left!

0

7

Echo 660922001

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.49

$

In Stock, Qty 6

0

8

Echo 308949004

SAFE-T-TIP

$2.49

$

Usually ships in 2-4 days

0

9

Echo 307556001

Bar w/Graphics (Black 16 in. Bar)

$

$

Currently unavailable

Echo 313556001

Bar w/Graphics (Silver 16 in. Bar)

$

$

Currently unavailable

10

Echo 681946001

Chain (16 in.)

$

$

Currently unavailable

11

Echo 660640001

SAFE-T-TIP (Screw & Washer)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 580146001

Scabbard (16 in.)

$5.49

$

In Stock, Qty 5

0

13

Echo 635335003

Guide Plate Bar

$1.49

$

In Stock, only 2 left!

0

14

Echo 662064001

Screw (10-14 x 13 mm, T25 Torx Ch. Hd. )

$1.49

$

Usually ships in 2-4 days

0

15

Echo 662083001

Screw (M4-18 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 678061001

SPRING

$1.49

$

Usually ships in 2-4 days

0

17

Echo 636159001

E-RING

$1.49

$

In Stock, only 2 left!

0

18

Echo 635367001

Cap Washer

$1.49

$

In Stock, Qty 20+

0

19

Echo 612309002

Sprocket w/Drum

$11.99

$

In Stock, Qty 12

0

20

Echo 662052001

Screw (M5 x 15 mm, T25 Torx Flange Hd.)

$1.49

$

Usually ships in 2-4 days

0

21

Echo 660610001

Screw (M4 x 9.5 mm, T20 Torx Truss Hd.)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 309514001

Oil Pump Assembly

$20.99

$

Usually ships in 2-4 days

0

23

Echo 563438001

Outlet Tube

$1.99

$

In Stock, only 2 left!

0

24

Echo 940657143

Icon Label

$1.49

$

Usually ships in 2-4 days

0

25

Echo 120539001

Housing Assembly

$60.99

$

Usually ships in 2-4 days

0

26

Echo 940657087

Warning Label (Right)

$1.49

$

Usually ships in 2-4 days

0

27

Echo 678057001

Chain Brake Spring

$1.49

$

Usually ships in 2-4 days

0

28

Echo 662113001

Screw (M5 x 10 mm, T25 Torx Hd. T.F.)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 120559001

Front Handle Guard

$23.99

$

Usually ships in 2-4 days

0

30

Echo 660608001

Screw (M8 x 12 mm, T20 Torx Truss Hd.)

$1.49

$

Usually ships in 2-4 days

0

31

Echo 662199001

Screw (M4-18 x 10 mm, T20 Torx Washer Hd.)

$1.49

$

Usually ships in 2-4 days

0

32

Echo 900876003

TERMINAL

$1.49

$

Usually ships in 2-4 days

0

33

Echo 120542001

Battery Carriage and Circuit Board Assembly

$108.99

$

Usually ships in 2-4 days

0

34

Echo 694071001

Oil Pump Spring

$1.49

$

Usually ships in 2-4 days

0

35

Echo 635321001

C-Ring

$1.49

$

Usually ships in 2-4 days

0

36

Echo 307415001

Motor Assembly

$167.99

$

Usually ships in 2-4 days

0

37

Echo 678602002

Guard Bushing

$1.49

$

Usually ships in 2-4 days

0

38

Echo 678587001

Washer (ID6.8 x OD16 x 1.5t)

$1.49

$

Usually ships in 2-4 days

0

39

Echo 671075001

E-RING

$0.99

$

In Stock, Qty 5

0

40

Echo 760952002

Variable Signal Switch

$9.49

$

In Stock, Qty 11

0

41

Echo 662053002

Screw (M5 x 25.5 mm, T25 Torx Rd. Hd.)

$1.49

$

Usually ships in 2-4 days

0

42

Echo 528378001

Front Handle

$10.99

$

In Stock, only 2 left!

0

43

Echo 940657144

Warning Label (Left)

$1.49

$

Usually ships in 2-4 days

0

44

Echo 563594001

Oil Tank Gasket

$1.49

$

In Stock, Qty 8

0

45

Echo 307451001

Oil Cap Assembly

$2.49

$

In Stock, Qty 16

0

46

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

47

Echo 563623001

Wrench Spring Plate

$1.49

$

Usually ships in 2-4 days

0

48

Echo 612574001

WRENCH

$5.49

$

In Stock, only 1 left!

0

49

Echo 941588070

Data Label

$1.49

$

Usually ships in 2-4 days

0

50

Echo 940851046

Danger Label

$1.49

$

Usually ships in 2-4 days

0

51

Echo 120544001

Chain Brake Assembly

$2.99

$

In Stock, only 2 left!

0

52

Echo 120546001

Trigger Assembly

$2.99

$

Usually ships in 2-4 days

0

53

Echo 120543001

Side Cover Assembly
(Superseded to 528370001)

$8.49

$

In Stock, only 4 left!

0

54

Echo 307447001

Brake bend Connector Assembly

$3.49

$

Usually ships in 2-4 days

0

55

Echo 307448001

Brake Bend Assembly

$3.49

$

Usually ships in 2-4 days

0

56

Echo 307450001

Oil Tank Assembly

$8.49

$

In Stock, only 2 left!

0

57

Echo 120545001

Volute & Wire Cover Assembly

$4.99

$

Usually ships in 2-4 days

0

58

Echo 694143003

Compression Spring

$0.99

$

Usually ships in 2-4 days

0

59

Echo 660503004

Guide Bar Bolt

$8.49

$

Usually ships in 2-4 days

0

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 140330001

58V Charger (CBC-58V, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 991000276

Operator's Manual (ECHO #99922205192)
(Superseded to Discontinued)

Note: Not Shown

$

$

Not available
