CD 52 PZT (967019201) - Husqvarna 52" Mower Deck Assembly (2012-03) MOWER DECK / CUTTING DECK Parts Diagram

52" Mower Deck Assembly

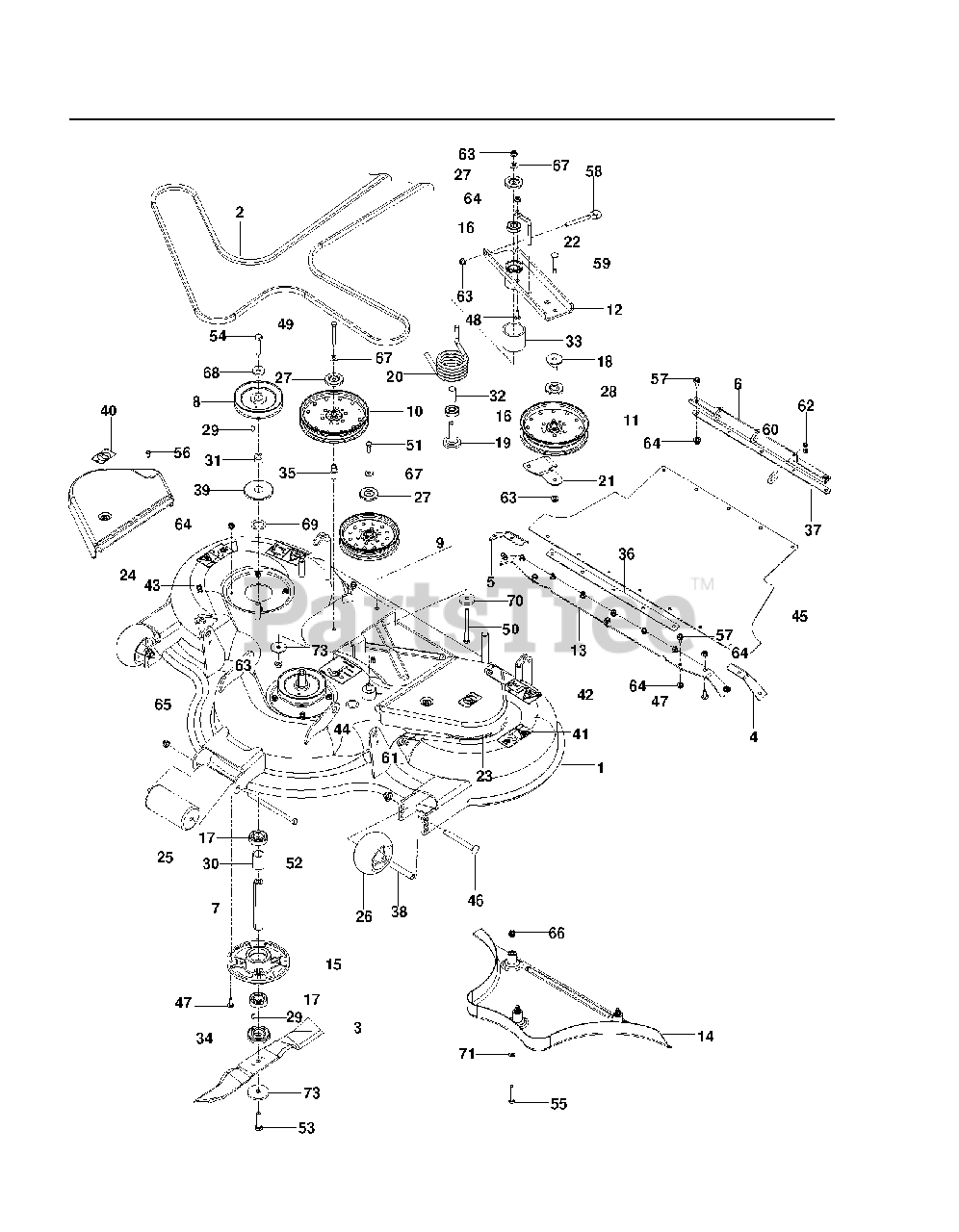

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 579412101

Note: w /DECALS ORG

$

$

Currently unavailable

2

Husqvarna 575658402

$

$

Currently unavailable

3

Husqvarna 544175701

BLADE
(Superseded to 586198810)

$51.99

$

Usually ships in 3-10 days

0

4

Husqvarna 575647802

BRKT, L.H. CORNER BLK

$

$

Not available

5

Husqvarna 575647902

BRKT, R.H. CORNER BLK

$

$

Not available

6

Husqvarna 579226901

$

$

Currently unavailable

7

Husqvarna 535428702

AXLE

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112506

PULLEY, 52

$

$

Not available

9

Husqvarna 510019601

PULLEY IDLER, 6" NARROW
(Superseded to 597087101)

$62.99

$

In Stock, only 2 left!

0

10

Husqvarna 525598201

PULLEY - 7" NARROW
(Superseded to 525598202)

$51.99

$

In Stock, only 2 left!

0

11

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

12

Husqvarna 525464402

IDLER.ARM.BLACK

$193.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575729602

$

$

Currently unavailable

14

Husqvarna 544166201

PLUG ASSY

$

$

Not available

15

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

16

Husqvarna 539112050

BEARING, BALL

$6.99

$

In Stock, Qty 12

0

17

Husqvarna 738220519

BALL BEARING

$57.99

$

Usually ships in 3-10 days

0

18

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, only 1 left!

0

19

Husqvarna 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, Qty 7

0

20

Husqvarna 525310901

SPRING, TORSION, IDLER

$113.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574262102

BELT.GUIDE.BLACK

$43.99

$

In Stock, only 2 left!

0

22

Husqvarna 574262201

BELT KEEPER
(Superseded to 574262202)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539112508

BELT SHIELD LT

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539112509

BELT SHIELD RT

$56.99

$

In Stock, only 1 left!

0

25

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

26

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$20.99

$

In Stock, Qty 20+

0

27

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 510262201

SHIELD, DUST
(Superseded to 596840301)

$31.99

$

In Stock, Qty 12

0

29

Husqvarna 506533501

KEY

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 535428801

SPACER

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539112609

KEY RETAINER

$

$

Not available

32

Husqvarna 510264201

SPACER, IDLER BEARINGS

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 525465601

SPACER, IDLER PIVOT

$11.99

$

In Stock, only 2 left!

0

34

Husqvarna 539132778

BUSHING, BLADE

$

$

Not available

35

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, only 2 left!

0

36

Husqvarna 575782202

$

$

Currently unavailable

37

Husqvarna 575558702

STRAP, SHORT BLACK

$

$

Not available

38

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 16

0

39

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 7

0

40

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

Note: NO STEP

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539105744

DECAL, BELT DRIVE

Note: BELT DRIVE WARN

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 539105746

DECAL, EURO SEVERING

Note: SEVERING

$3.49

$

In Stock, only 1 left!

0

43

Husqvarna 539112536

DECAL, 132

Note: 132

$

$

Not available

44

Husqvarna 574437301

DECAL, BELT ROUTING

Note: BELT ROUTING

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 575789801

$

$

Currently unavailable

46

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

47

Husqvarna 539990208

RHSNB 5/16C X 1

$

$

Not available

48

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 2 left!

0

50

Husqvarna 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD
(Superseded to 596435401)

$3.49

$

In Stock, only 1 left!

0

51

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

52

Husqvarna 539132470

HCS 7/16-14 X 7 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 539132480

HCS M12 X 1.75 X 50 GR8.8 ZD

$3.49

$

In Stock, only 1 left!

0

54

Husqvarna 539132479

HCS M12 X 1.75 X 60 GR5 ZD

$3.49

$

In Stock, only 1 left!

0

55

Husqvarna 539132494

HCS M8 X 1.25 X 50 GR8.8 ZD

$

$

Not available

56

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

57

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.49

$

In Stock, only 1 left!

0

58

Husqvarna 574202001

EYE BOLT, 3/8 X 4"
(Superseded to 574202002)

$5.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 5

0

60

Husqvarna 579227001

(Superseded to 583624401)

$

$

Not available

61

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

62

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

63

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

64

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 9

0

65

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.49

$

In Stock, only 2 left!

0

66

Husqvarna 506916203

BLIND RIVET NUT

$9.49

$

Usually ships in 3-10 days

0

67

Husqvarna 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

68

Husqvarna 539115550

WASHER-.533IDX1.37OD

$

$

Not available

69

Husqvarna 539127099

WASHER-1.06IDX1.63ODX.06

$5.99

$

In Stock, only 1 left!

0

70

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

71

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

73

Husqvarna 506792302

WASHER

$

$

Not available
