CD2038 M SA (RZCW) - Honda 38" Mulching Mower Deck (SN: RZCW-6000001 - RZCW-9999999) CUTTER HOUSING Parts Diagram

38" Mulching Mower Deck

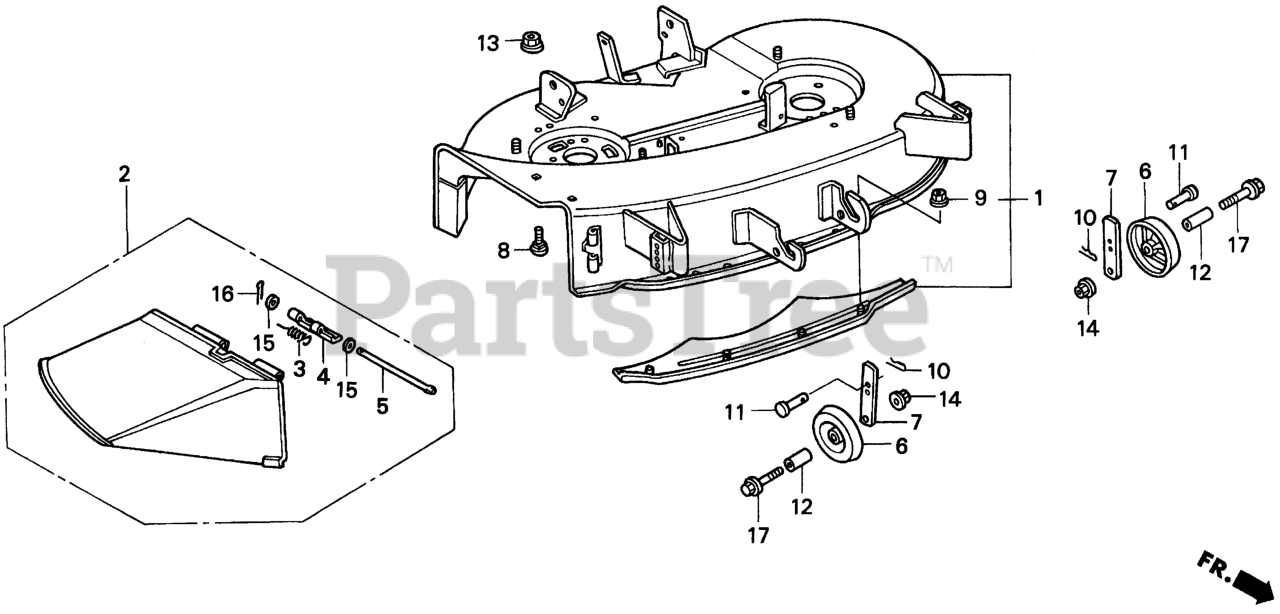

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 76110-771-M00

HOUSING, CUTTER

$1233.99

$

Usually ships in 3-6 days

0

2

Honda 76150-758-L01

ADAPTER, DISCHARGE

$

$

Not available

3

Honda 76152-758-L00

SPRING, DISCHARGE ADAPTER

$6.99

$

Usually ships in 3-6 days

0

4

Honda 76153-758-L00

HINGE, DISCHARGE ADAPTER

$

$

Not available

5

Honda 76154-758-L00

PIN, DISCHARGE ADAPTER (NA USE ALT:06814-V09-A01)

$

$

Currently unavailable

6

Honda 76231-763-A00

ROLLER, ANTI-SCALP

$28.99

$

In Stock, only 2 left!

0

7

Honda 76285-771-L00

ARM, ROLLER

$

$

Not available

8

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.99

$

In Stock, only 2 left!

0

9

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$5.49

$

In Stock, Qty 20+

0

10

Honda 90651-703-000

PIN, SNAP (7MM)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90755-758-L00

PIN, ROLLER ARM (8X22)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 91565-772-L00

COLLAR, ANTI-SCALP

$2.99

$

In Stock, only 2 left!

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$5.49

$

In Stock, Qty 20+

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 1 left!

0

17

Honda 95701-10065-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X65)

$4.49

$

Usually ships in 3-6 days

0
