CD3009 A (RAF) - Honda 30" Mower Deck, Made in Japan (SN: RAF-0000001 - RAF-9999999) CUTTER HOUSING (CD3009) Parts Diagram

30" Mower Deck, Made in Japan

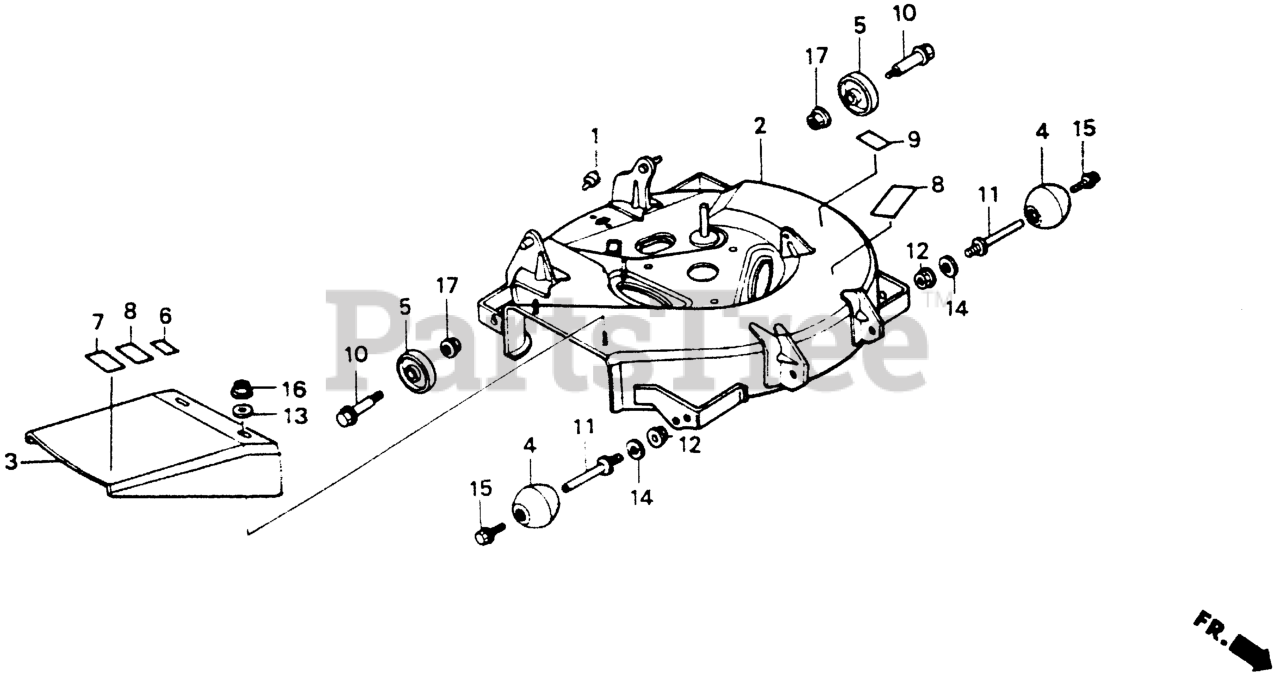

CUTTER HOUSING (CD3009) Parts Diagram

  • Title

1

Honda 72701-751-700

RUBBER, STOPPER

Note: (Optional)

$

$

Not available

2

Honda 76110-751-A00

HOUSING, CUTTER

Note: (Optional)

$

$

Currently unavailable

3

Honda 76150-751-000ZA

ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

Note: (Optional)

$

$

Currently unavailable

4

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

5

Honda 76241-751-700

SEE PART DETAILS - SUP; ROLLER, RR. ANTI-SCALP
(Superseded to 76241-751-701)

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

5

Honda 76241-751-701

SEE PART DETAILS - PRI; ROLLER, RR. ANTI-SCALP

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

6

Honda 87106-751-A00

MARK, INCH SIZE (30)

Note: (Optional)

$

$

Not available

7

Honda 87115-751-700

LABEL B, WARNING (ENGLISH)

Note: (Optional)

$

$

Currently unavailable

8

Honda 87122-751-700

LABEL A, WARNING (ENGLISH)

Note: (Optional)

$

$

Not available

9

Honda 87133-751-A00

LABEL D, CAUTION (ENGLISH)

Note: (Optional)

$

$

Not available

10

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

Note: (Optional)

$13.99

$

In Stock, only 1 left!

0

11

Honda 90108-751-701

SEE PART DETAILS - PRI; SHAFT, ANTI-SCALP ROLLER

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0

12

Honda 90306-750-A00

NUT, SELF-LOCK (12MM)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90401-952-770

WASHER, PLAIN (8MM) (NOT AVAILABLE)

Note: (Optional)

$

$

Currently unavailable

14

Honda 90403-750-A00

WASHER, THRUST (12MM)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

15

Honda 93406-08016-08

BOLT-WASHER (8X16)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0
