CD3813 A (RAG) - Honda 38" Mower Deck, Made in Japan (SN: RAG-0000001 - RAG-9999999) CUTTER HOUSING (CD3813) Parts Diagram

38" Mower Deck, Made in Japan

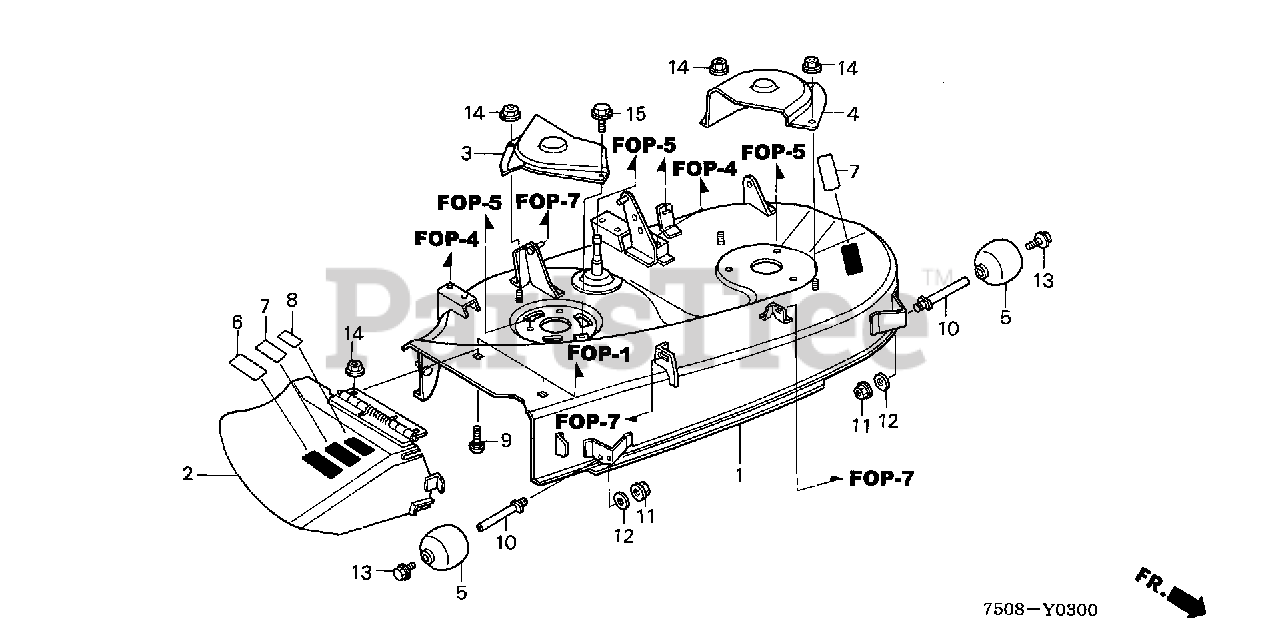

CUTTER HOUSING (CD3813) Parts Diagram

  • Title

1

Honda 76110-750-A01

SEE PART DETAILS - PRI; HOUSING, CUTTER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 76150-750-A00ZA

SEE PART DETAILS - PRI; ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC)

$

$

Currently unavailable

3

Honda 76155-750-A00ZA

SEE PART DETAILS - PRI; COVER, R. BELT *NH190M* (VINTAGE GRAY METALLIC)

$

$

Not available

4

Honda 76156-751-700ZA

COVER, L. BELT *NH190M* (VINTAGE GRAY METALLIC)

$

$

Currently unavailable

5

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$24.99

$

Usually ships in 3-6 days

0

6

Honda 87115-751-700

LABEL B, WARNING (ENGLISH)

$

$

Currently unavailable

7

Honda 87122-751-700

LABEL A, WARNING (ENGLISH)

$

$

Not available

8

Honda 87129-751-700

MARK, INCH SIZE (38)

$

$

Currently unavailable

9

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90108-751-701

SEE PART DETAILS - PRI; SHAFT, ANTI-SCALP ROLLER

$22.99

$

Usually ships in 3-6 days

0

11

Honda 90306-750-A00

NUT, SELF-LOCK (12MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90403-750-A00

WASHER, THRUST (12MM)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 93406-08016-08

BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
