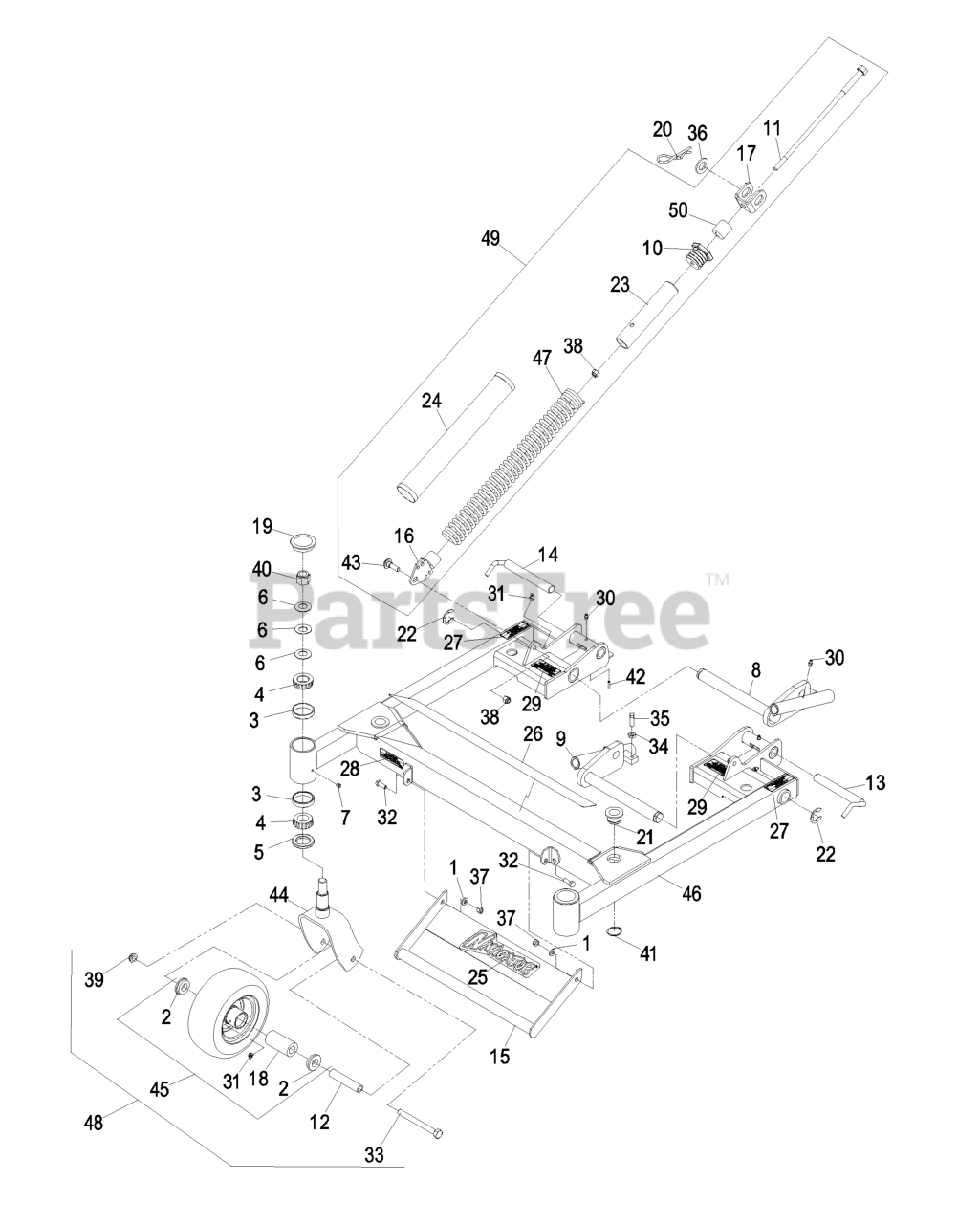

CD42CD - Exmark 42" Navigator Cutting Deck (SN: 000720000 - 000789999) (2008) Front Frame Group Parts Diagram

42" Navigator Cutting Deck

Front Frame Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

2

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 18

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

5

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, only 4 left!

0

6

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

7

Exmark 1-811010

PLUG

$5.99

$

In Stock, Qty 10

0

8

Exmark 103-3729-01

PIVOT-DECK, RH

Note: (RH) Include zerk, item #30.

$297.99

$

Usually ships in 3-6 days

0

9

Exmark 103-3732-01

PIVOT-DECK, LH

Note: (LH) Include zerk, item #30.

$297.99

$

Usually ships in 3-6 days

0

10

Exmark 103-3772

PLUG-ADJUSTER, SPRING

$95.99

$

Usually ships in 3-6 days

0

11

Exmark 103-3773

SHAFT-ADJUSTMENT, SPRING

$158.99

$

Usually ships in 3-6 days

0

12

Exmark 109-2094

SPACER-CASTER, FRONT

$18.99

$

Usually ships in 3-6 days

0

13

Exmark 103-4118

LOCK-DECK, LH

Note: (LH)

$56.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4119

LOCK-DECK, RH

Note: (RH)

$56.99

$

Usually ships in 3-6 days

0

15

Exmark 103-9482

ASM,DECK LIFT HANDLE W/DE

$187.99

$

Usually ships in 3-6 days

0

16

Exmark 103-4284

TENSIONER-SPRING

$67.99

$

Usually ships in 3-6 days

0

17

Exmark 103-4285

MOUNT-LIFT ASSIST, DECK

$18.99

$

Usually ships in 3-6 days

0

18

Exmark 103-4588

BEARING-ROLLER, STRAIGHT

$38.99

$

Usually ships in 3-6 days

0

19

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

20

Exmark 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, only 1 left!

0

21

Exmark 103-7436

BUSHING-SUPPORT, DECK

$23.99

$

Usually ships in 3-6 days

0

22

Exmark 103-7448

1-808519
(Superseded to 1-808519)

$2.99

$

In Stock, Qty 20+

0

23

Exmark 103-7865

SPRING-TUBE

$112.99

$

Usually ships in 3-6 days

0

24

Exmark 103-7971

COVER-SPRING, DECK
(Superseded to 161-6766)

$49.99

$

Usually ships in 3-6 days

0

25

Exmark 103-8504

DECAL,NAVIGATOR MODEL

$30.99

$

Usually ships in 3-6 days

0

26

Exmark 103-8667

PAD-SKID, ANTI

Note: (42")

$19.99

$

Usually ships in 3-6 days

0

Exmark 103-8630

PAD-ANTI SKID

Note: (48")

$21.99

$

Usually ships in 3-6 days

0

27

Exmark 103-8797

DECAL-FOLDING DECK

$

$

Not available

28

Exmark 103-8798

DECAL-DANGER

$

$

Not available

29

Exmark 103-8799

DECAL-SPRING

$

$

Not available

30

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

31

Exmark 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

0

32

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Exmark 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

34

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

35

Exmark 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

36

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

37

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

40

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 4 left!

0

41

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

42

Exmark 32121-3

PIN-SPRING

$0.99

$

In Stock, only 2 left!

0

43

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 5

0

44

Exmark 109-1933-01

FORK-CASTER

$196.99

$

Usually ships in 3-6 days

0

45

Exmark 103-4324

ASM,WHEEL,TIRE & BRGS 8X3
(Superseded to 135-5962)

$93.99

$

In Stock, only 2 left!

0

46

Exmark 103-9481

DECK SUPPORT ASM
(Superseded to 142-2910)

Note: (42") Includes frame weldment plus items #7, #13, #14, #19, #21, #25, #37, #38, and Decals.

$966.99

$

Usually ships in 3-6 days

0

Exmark 103-9480

DECK SUPPORT ASM
(Superseded to 142-2914)

Note: (48") Includes frame weldment plus items #7, #13, #14, #19, #21, #25, #37, #38, and Decals.

$1170.99

$

Usually ships in 3-6 days

0

47

Exmark 103-4281

SPRING-EXTENSION

$101.99

$

Usually ships in 3-6 days

0

48

Exmark 103-9495

ASM,FF CASTER WHEEL W/AXL
(Superseded to 135-5966)

$150.99

$

In Stock, Qty 6

0

49

Exmark 103-4280

ASM,LIFT AST SPRING

Note: (48") Includes (2) nyloc nuts, item #38.

$795.99

$

Usually ships in 3-6 days

0

Exmark 109-1979

ASM,LIFT AST SPRING (42")

Note: (42")

$

$

Not available

50

Exmark 109-1978

SPACER (PLATED)

Note: (42" Only)

$20.99

$

Usually ships in 3-6 days

0
