CD4538 C SA (RZBA) - Honda 38" Mower Deck, Made in Japan (SN: RZBA-1000001 - RZBA-9999999) CUTTER HOUSING I Parts Diagram

38" Mower Deck, Made in Japan

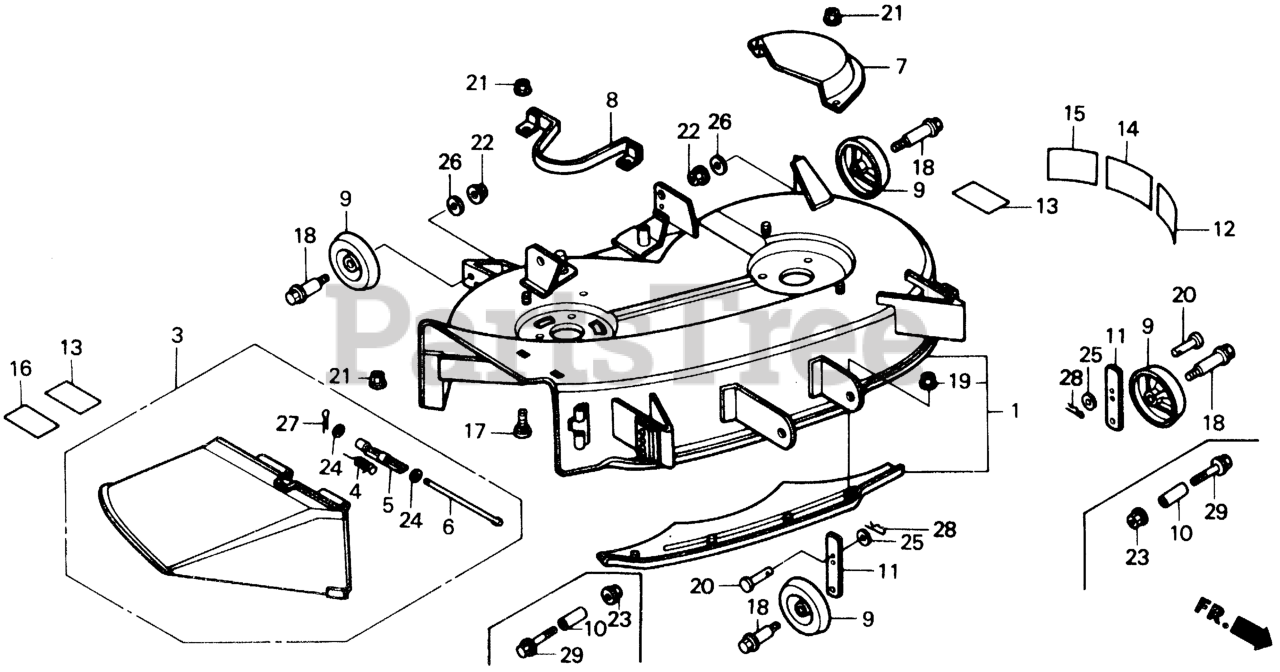

CUTTER HOUSING I Parts Diagram

  • Title

1

Honda 76110-758-L02

HOUSING, CUTTER

$1018.99

$

Usually ships in 3-6 days

0

2

Honda 76113-758-L00ZA

PLATE, PROTECTOR *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76150-758-L01

ADAPTER, DISCHARGE

$

$

Not available

4

Honda 76152-758-L00

SPRING, DISCHARGE ADAPTER

$5.99

$

Usually ships in 3-6 days

0

5

Honda 76153-758-L00

HINGE, DISCHARGE ADAPTER

$

$

Not available

6

Honda 76154-758-L00

PIN, DISCHARGE ADAPTER (NA USE ALT:06814-V09-A01)

$

$

Currently unavailable

7

Honda 76156-758-L00

COVER, L. BELT

$

$

Not available

8

Honda 76183-758-L00

SEE PART DETAILS - SUP; STOPPER, BELT
(Superseded to 76183-758-L21)

$34.99

$

Usually ships in 3-6 days

0

9

Honda 76231-763-A00

ROLLER, ANTI-SCALP

$22.99

$

Usually ships in 3-6 days

0

10

Honda 76232-758-L00

COLLAR, ANTI-SCALP ROLLER (12.7X15.9X39.5)

$

$

Not available

11

Honda 76285-758-L02

ARM, ROLLER (12MM)

$

$

Not available

12

Honda 87110-758-030

MARK, HEIGHT OPERATION (ENGLISH)

$

$

Not available

13

Honda 87122-763-A00

LABEL A, WARNING (ENGLISH)

$15.99

$

Usually ships in 3-6 days

0

14

Honda 87129-758-L00

MARK, INCH SIZE (38)

$

$

Not available

16

Honda 87207-758-010

MARK, DANGER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90101-963-000

BOLT, SPECIAL (8X15)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

$13.99

$

Usually ships in 3-6 days

0

19

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.49

$

In Stock, Qty 5

0

20

Honda 90755-758-L00

PIN, ROLLER ARM (8X22)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

23

Honda 94050-12080

NUT, FLANGE (12MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

28

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

29

Honda 95701-12060-08

BOLT, FLANGE (12X60)

$3.99

$

Usually ships in 3-6 days

0
