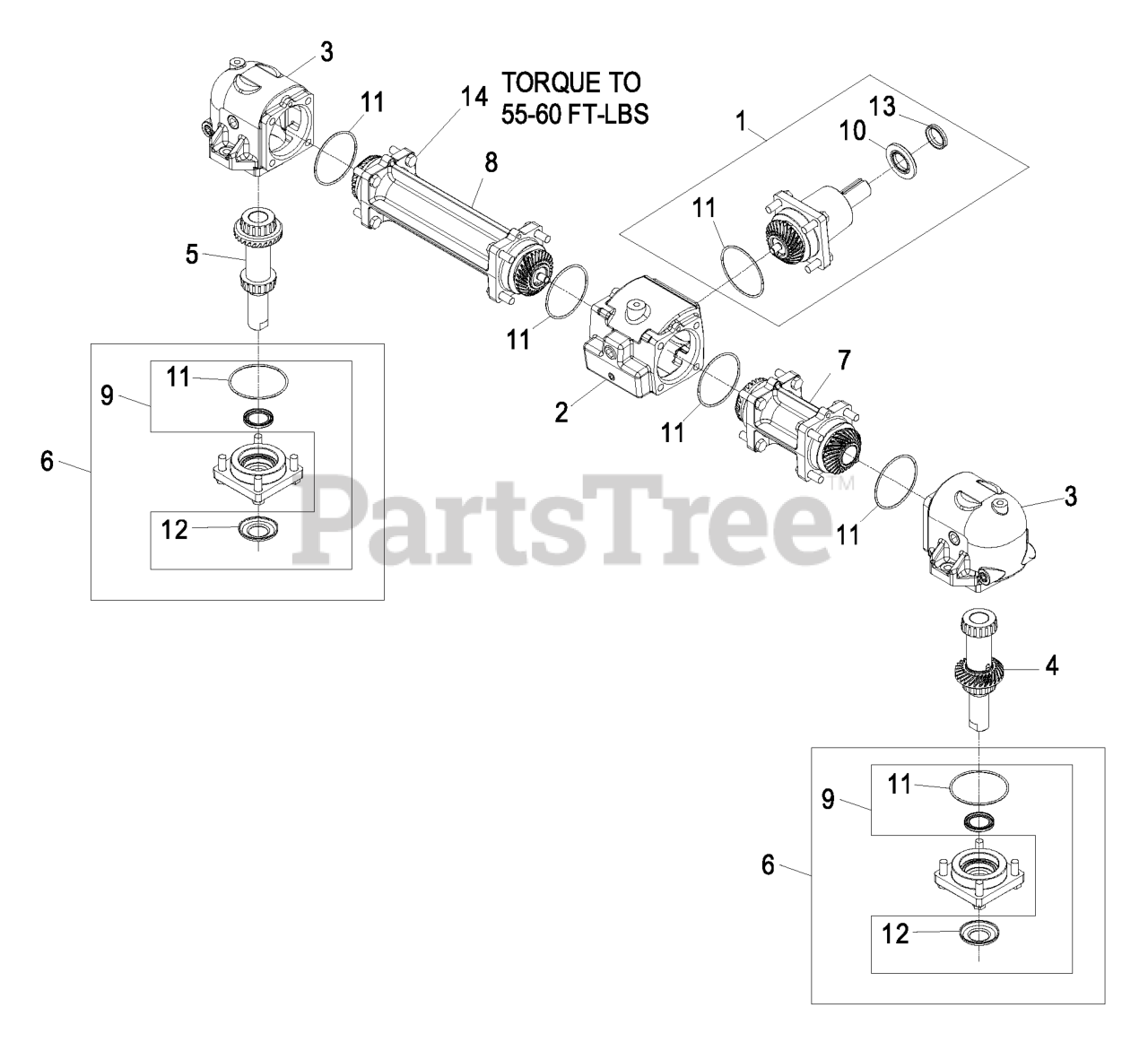

CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000670000 - 000719999) (2007) Gearbox Components For 103-3460 & 103-3387 Parts Diagram

48" Navigator Cutting Deck

Gearbox Components For 103-3460 & 103-3387 Parts Diagram

  • Title

1

Exmark 109-0188

INPUT PINION ASM

$679.99

$

Usually ships in 3-6 days

0

Exmark 109-0189

PINION-INPUT

$527.99

$

Usually ships in 3-6 days

0

2

Exmark 109-0190

HOUSING-CENTER

Note: Includes o-rings, item #11

$414.99

$

Usually ships in 3-6 days

0

3

Exmark 109-0191

HOUSING-END

Note: Includes o-rings, item #11

$368.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0192

LH OUTPUT SHAFT AND GEAR

Note: Includes (1) output seal assembly, item #9

$552.99

$

Usually ships in 3-6 days

0

Exmark 109-0193

OUTPUT SHAFT AND GEAR-LH

Note: Includes (1) output seal assembly, item #9

$465.99

$

Usually ships in 3-6 days

0

5

Exmark 109-0194

RH OUTPUT SHAFT AND GEAR

Note: Includes (1) output seal assembly, item #9

$560.99

$

Usually ships in 3-6 days

0

Exmark 109-0195

OUTPUT SHAFT AND GEAR-RH

Note: Includes (1) output seal assembly, item #9

$594.99

$

Usually ships in 3-6 days

0

6

Exmark 109-0196

CAP-OUTPUT

Note: Does not include screw, item #14.

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0197

TUBE-CONNECTOR, SHORT

Note: Includes o-rings, item #11; Does not include screw, item #14.

$736.99

$

Usually ships in 3-6 days

0

Exmark 109-0198

TUBE-CONNECTOR, SHORT

Note: Includes o-rings, item #11

$818.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0199

TUBE-CONNECTOR, LONG

Note: Includes o-rings, item #11; Does not include screw, item #14.

$887.99

$

Usually ships in 3-6 days

0

Exmark 109-0200

CONNECTOR-TUBE, LONG

Note: Includes o-rings, item #11

$813.99

$

Usually ships in 3-6 days

0

9

Exmark 109-0201

OUTPUT SEAL KIT

$40.99

$

In Stock, only 2 left!

0

10

Exmark 109-0202

SEAL-INPUT

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) between seal, item #10 and v-ring, item #13.

$68.99

$

Usually ships in 3-6 days

0

11

Exmark 109-0203

SEAL-O-RING

$15.99

$

In Stock, Qty 7

0

12

Exmark 109-0204

WASHER-CUPPED

$17.99

$

Usually ships in 3-6 days

0

13

Exmark 109-0205

SEAL-V-RING

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) between seal, item #10 and v-ring, item #13.

$18.99

$

In Stock, only 2 left!

0

14

Exmark 93-3987

AU328-620
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0

Exmark 103-3460

GEARBOX ASM

$3967.99

$

Usually ships in 3-6 days

0

Exmark 103-3387

GEAR BOX ASM

$3936.99

$

Usually ships in 3-6 days

0
