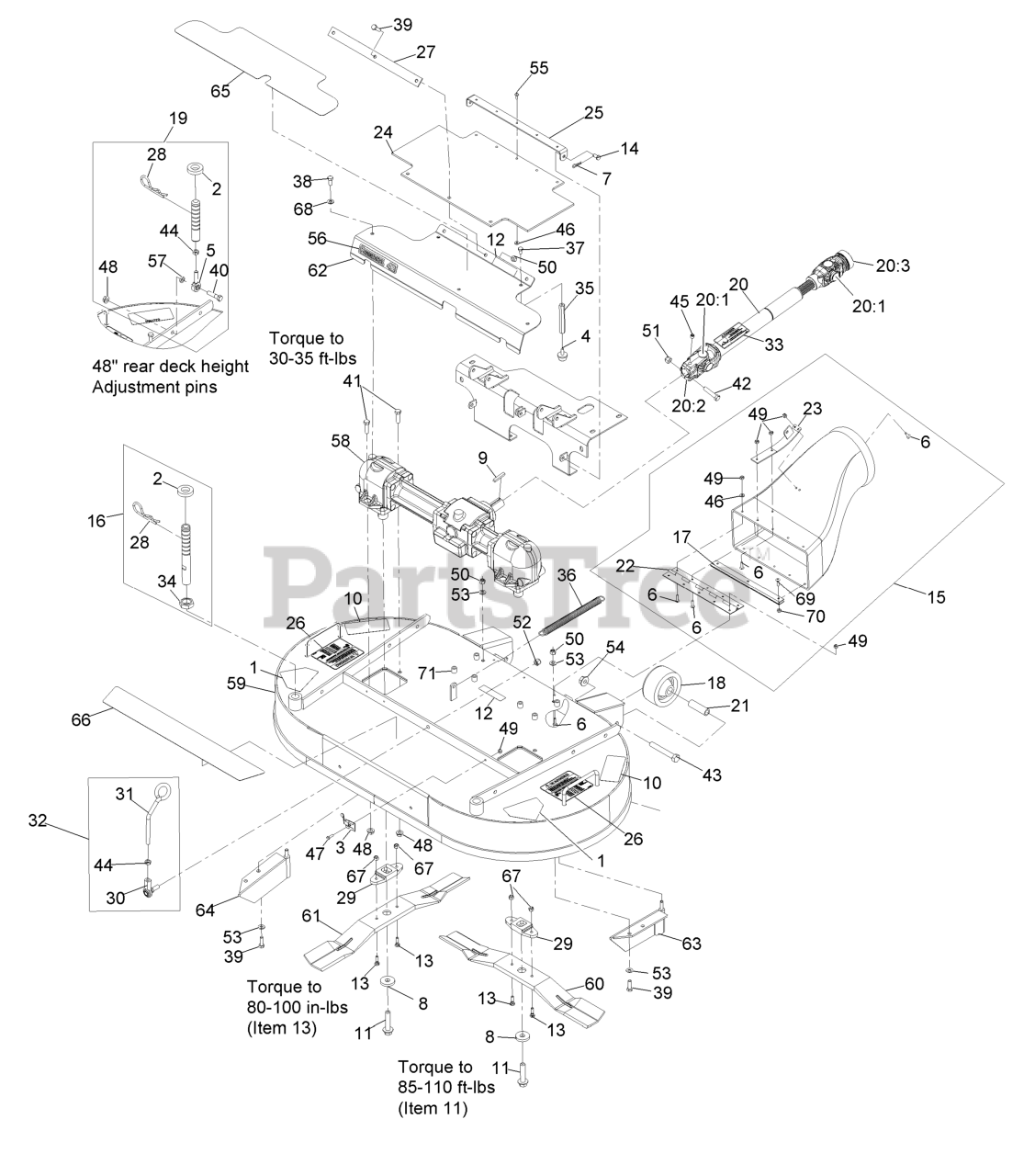

CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000920000 - 000999999) (2011)

48" Navigator Cutting Deck

CD48CD - Exmark 48" Navigator Cutting Deck (SN: 000920000 - 000999999) (2011) > Parts Diagrams (4) > Deck Assembly

  • Title
1-403005

1

Decal-Danger

Part# 1-403005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.90

1-413425

2

Spacer

Part# 1-413425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.82

1-513690

3

Clip, Deck Holdup Rod

Part# 1-513690

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.21

109-2365

4

Rubber Bumper Asm (W/Stud)

Part# 109-2365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

1-613204

5

Balljoint

Part# 1-613204

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.38

1-803075

6

Screw-Truss Head #10-24 X 3/4

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

1-806003

7

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

30-8770

8

Washer

Part# 30-8770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.98

67-7490

9

Key-Machine 1/4 X 1/4 X 1 1/2

Part# 67-7490

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.92

68-8340

10

Decal-Torque

Part# 68-8340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.39

92-5816

11

Bolt-Blade 1/2-20 X 2 1/4

Part# 92-5816

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.71

98-5954

12

Decal-Cover, Missing

Part# 98-5954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.68

99-0283

13

Bolt-Shear 1/4-20 X 7/8

Part# 99-0283

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.28

1-808280

14

Pin-Clevis 5/16 X 1 49/64

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.79

103-9487

15

Asm, Discharge Tube

Part# 103-9487

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $219.31

109-0321

16

Asm, Front Deck Height Adj.

Part# 109-0321

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48

109-2228-03

17

Guard, Plenum

Part# 109-2228-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.46

103-3700

18

Roller, Deck

Part# 103-3700

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.09

109-0323

19

Asm, Rear Deck Height Adj. (48")

Part# 109-0323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.33

103-9485

20

Asm, Drive Shaft W/Decal

Part# 103-9485

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $354.37

103-9327

20:1

Asm, Cross U Joint

Part# 103-9327 (Superseded to 54-9180)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.60

103-9328

20:2

Yoke, Keyed

Part# 103-9328

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $85.40

103-9329

20:3

Yoke, Quick Disconnect

Part# 103-9329

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $181.22

103-4230

21

Spacer, Roller

Part# 103-4230

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.07

103-4974

22

Hinge

Part# 103-4974

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.20

103-5868-01

23

Wld, Spring Mount

Part# 103-5868-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

103-5979

24

Guard, Pto

Part# 103-5979

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.55

103-6183-03

25

Bracket, Pto Guard

Part# 103-6183-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.54

103-6230

26

Decal-Cutting Height Adjustment

Part# 103-6230 (Superseded to 116-8934)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.52

103-6290-03

27

Plate, Drive Line Cover

Part# 103-6290-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.38

103-7353

28

Hairpin, Cut Height

Part# 103-7353

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.44

103-7705

29

Driver, Blade

Part# 103-7705

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.86

103-7994

30

Balljoint

Part# 103-7994

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.63

103-8307

31

Latch, Deck

Part# 103-8307

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.84

103-8363

32

Asm, Deck Latch

Part# 103-8363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $84.25

103-8425

33

Decal-Driveline

Part# 103-8425

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.11

103-8496

34

Nut-Jam 7/8-9

Part# 103-8496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.94

103-8610

35

Stand-Off, 1/2 Hex

Part# 103-8610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.86

103-8841

36

Spring

Part# 103-8841

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.13

321-2

37

Screw-Hh 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.11

322-3

38

Screw-Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

322-5

39

Screw-Hh 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

323-8

40

Screw-Hh 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

323-7

41

Screw-Hh 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-9

42

Screw-Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

325-14

43

Screw-Hh 1/2-13 X 3 1/2

Part# 325-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

3219-3

44

Nut-Hex 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

3247-2

45

Setscrew-3/8-16 X 3/8

Part# 3247-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.11

3256-14

46

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3290-134

47

Screw-Hh Machine 10-24 X 5/8

Part# 3290-134

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.34

3290-357

48

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3296-2

49

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

3296-29

50

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

3296-39

51

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3296-6

52

Nut-Nyloc 3/8-24

Part# 3296-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

1-303334

53

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

32128-49

54

Nut-Whizlock 1/2-13

Part# 32128-49

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.53

114439

55

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

1-403131

56

Decal-Commercial 48

Part# 1-403131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.65

106-5597

57

Spacer-Idler

Part# 106-5597

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.80

103-3387

58

Gearbox,48 Std

Part# 103-3387

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2302.48

109-4372

59

Asm, Deck W/Decals (48)

Part# 109-4372

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1866.55

103-4207

60

Blade, Lh (48) Black

Part# 103-4207

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.54

103-4208

61

Blade, Rh (48) Red

Part# 103-4208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $26.54

103-9496

62

Asm, Gearbox Cover W/Decal (48)

Part# 103-9496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $159.24

109-4053-01

63

Wld, Baffle Discharge Lh

Part# 109-4053-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.63

109-4054-01

64

Wld, Baffle Discharge Rh

Part# 109-4054-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $64.63

103-8629

65

Pad, Anti Skid (48)

Part# 103-8629

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.46

103-8630

66

Pad, Anti Skid (48)

Part# 103-8630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.58

3296-42

67

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

3256-23

68

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

1-807533

69

Bolt-Carriage #10-24 X 5/8

Part# 1-807533

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.04

3296-12

70

Nut-Nyloc #10-24 Thin

Part# 3296-12 (Superseded to 3296-12)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

32148-7

71

Nut-Insert

Part# 32148-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.97
